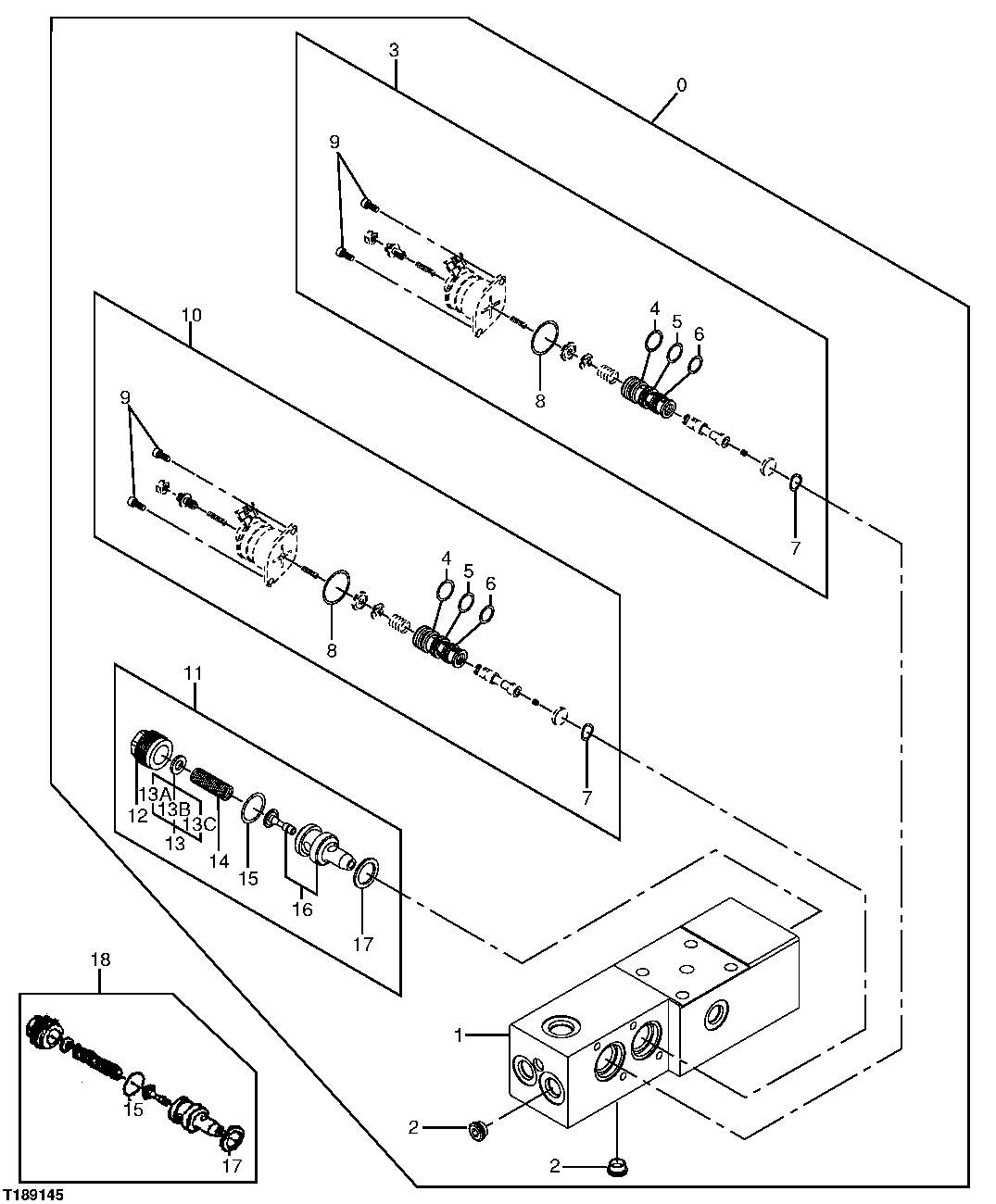

Запчасти John Deere 2054 215 - SOLENOID VALVE COMPONENTS (ON PILOT FILTER) 3362 CONTROL & LOAD HOLDING VALVES

0

Solenoid Valve

( 4445490 OR 9218276 NLA) (SUB 9220219)

1шт.

1

Housing

1шт.

2

9761179

Plug

(SUB FOR 4455986)

2шт.

3

4457822

Solenoid Valve

1шт.

4

4185600

O-Ring

(SUB FOR 0408409, AT153902 OR TH4185600)

2шт.

5

0408410

O-Ring

2шт.

6

4163873

O-Ring

(SUB FOR 0408411 OR TH106081)

2шт.

7

4455990

Washer

2шт.

8

4455989

Seal

2шт.

9

0387804

Screw

4шт.

10

4462950

Solenoid Valve

1шт.

11

9218296

Solenoid Hydraulic Valve

(SUB FOR 0709701)

1шт.

12

0308709

Fitting Plug

1шт.

13

9228867

Shim

(SUB FOR 4293211)

1шт.

13A

4606473

Shim

(SUB FOR 4309836)

2шт.

13B

4487297

Shim

(SUB FOR 4309837)

2шт.

13C

Shim

( 4309838 NLA)

2шт.

13D

4601120

Shim

2шт.

14

Spring

1шт.

15

4487138

O-Ring

(SUB FOR 0308705)

1шт.

16

Pressure Relief Valve

( 0308703 NLA) (SUB 9218128)

1шт.

17

4487648

Gasket

(SUB FOR 0308704)

1шт.

18

Pressure Relief Valve

( 4309970 NLA) (SUB 9218128)

1шт.

9218128

Solenoid Hydraulic Valve

(SUB FOR 4309970) (NLA)

1шт.
