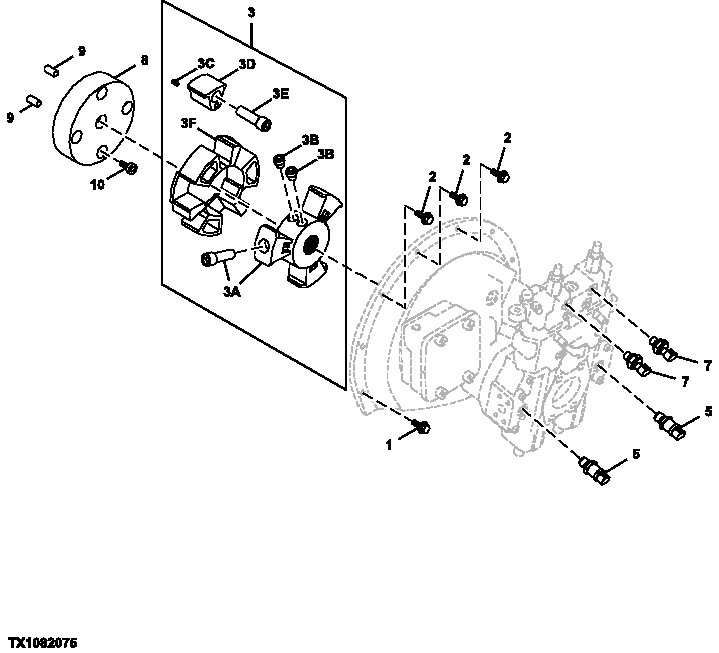

Запчасти John Deere 2054 200 - MAIN HYDRAULIC PUMP MOUNTING AND COUPLER 3361 HYDRAULIC PUMP

1

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

2

19M7550

Cap Screw

M10 X 35

3шт.

12M7066

Lock Washer

10 mm

3шт.

3

4449494

Coupling

Use With 14 Tooth Pump Shaft 1.25 in. Diameter

1шт.

4616689

Coupling

Use With 17 Tooth Pump Shaft 1.50 in. Diameter

1шт.

4449494

Coupling

Use With 14 Tooth Pump Shaft 1.25 in. Diameter

1шт.

4616689

Coupling

Use With 17 Tooth Pump Shaft 1.50 in. Diameter

1шт.

3A

Hub

( 4629353 NLA)

1шт.

4629351

Hub

1шт.

Hub

( 4629353 NLA)

1шт.

4629351

Hub

1шт.

3B

4702173

Set Screw

2шт.

3C

34M7117

Spring Pin

5 X 10 mm

4шт.

3D

4334892

Insert

4шт.

3E

4334894

Bolt

4шт.

3F

4334891

Coupling

1шт.

5

4436271

Sensor

(PRESSURE)

2шт.

4153097

O-Ring

1шт.

7

4436536

Sensor

(PRESSURE)

2шт.

4153095

O-Ring

1шт.

8

P64258

Spacer

1шт.

9

34M7117

Spring Pin

5 X 10 mm

2шт.

10

19M8208

Screw

M16 X 50 (ADD LOCTITE TO CAPSCREW BEFORE ASSEMBLY)

4шт.
