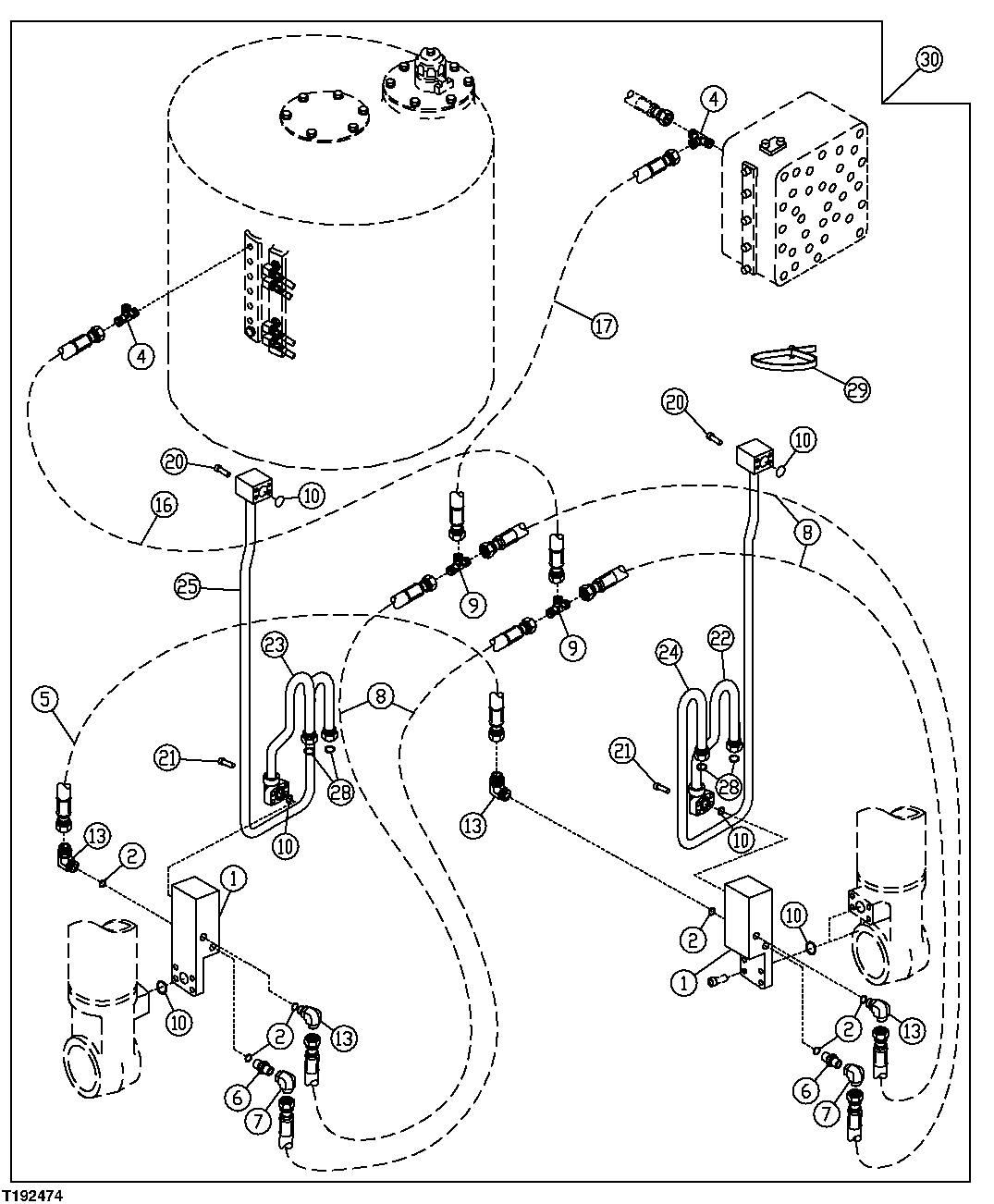

Запчасти John Deere 2054 199 - BOOM ANTI-DRIFT KIT 3360 HYDRAULIC SYSTEM

1

AT303955

Check Valve

ALSO ORDER (4) 19M9057

2шт.

2

AT300313

Sealing Ring

6шт.

4

AT36921

Tee Fitting

2шт.

5

AT300337

Hydraulic Hose

1шт.

6

X6F4OMXS

Adapter Fitting

2шт.

7

AE24616

Elbow Fitting

2шт.

8

AT303956

Hydraulic Hose

Fabricate

4шт.

9

Adapter Fitting

X6JTX-S NLA

2шт.

10

T72888

O-Ring

4шт.

13

X6C4OMXS

Elbow Fitting

4шт.

16

AT300465

Hydraulic Hose

1шт.

17

AT300466

Hydraulic Hose

1шт.

21

19M8412

Screw

M10 X 55

8шт.

22

AT303635

Oil Line

Lower Left Oil Tube

1шт.

23

AT302980

Oil Line

Lower Right Oil Tube

1шт.

24

AT303634

Oil Line

1шт.

25

AT303524

Oil Line

1шт.

26

19M9057

Screw

M10 X 50 USE WITH AT303955, MOUNTING BO LT, NOT ILLUSTRATED, NOT INCLUDED IN KIT

4шт.

28

T77857

O-Ring

2шт.

29

H77698

Tie Band

20шт.

30

Kit

AT304847 NLA Boom Antidrift Kit

1шт.
