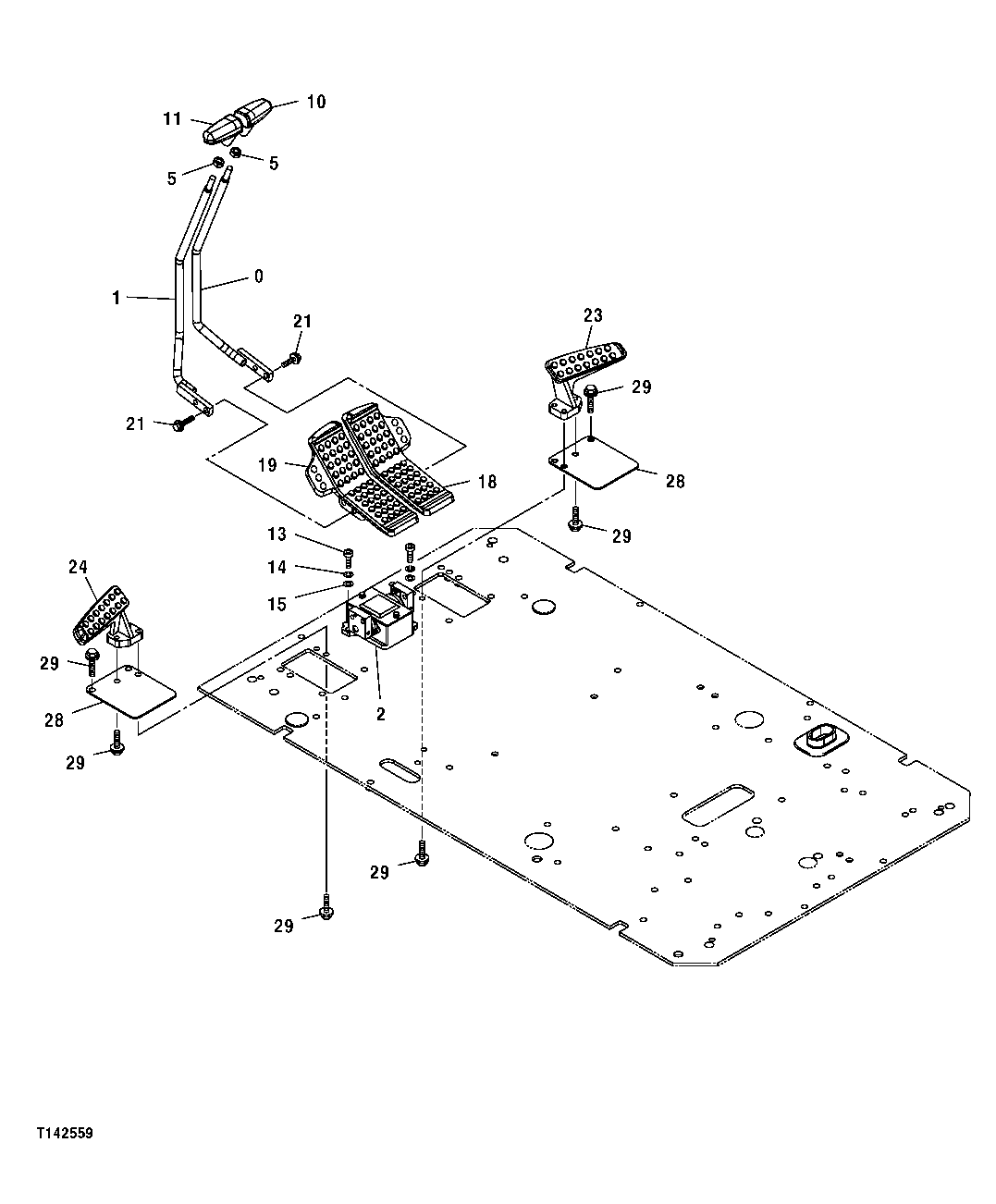

Запчасти John Deere 2054 178 - PROPEL PILOT CONTROL LEVERS, PEDALS, AND FOOTRESTS 3315 CONTROLS LINKAGE

0

8075450

Lever

1шт.

1

8075449

Lever

1шт.

2

9195307

Hydr./Pilot Control Valve

Units Built Before February 2003

1шт.

9235551

Hydr./Pilot Control Valve

(SUB FOR 9226365) Units Bu ilt February 2003 And After

1шт.

5

4424185

Nut

2шт.

10

2051176

Grip

(SUB FOR 2045468)

1шт.

11

2051177

Grip

(SUB FOR 2045469)

1шт.

13

19M8337

Screw

M10 X 30 (SUB FOR J781035)

2шт.

14

12M7066

Lock Washer

10 mm

2шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

18

1024384

Pedal

1шт.

19

1024224

Pedal

1шт.

21

Screw With Washer

(SUB FOR J051050)( J021050 NLA)

4шт.

19M8600

Cap Screw

M10 X 50

4шт.

24M7106

Washer

10 X 18 X 2.500 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

23

1015478

Footrest

1шт.

24

1015477

Footrest

1шт.

28

3052543

Cover

2шт.

29

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.
