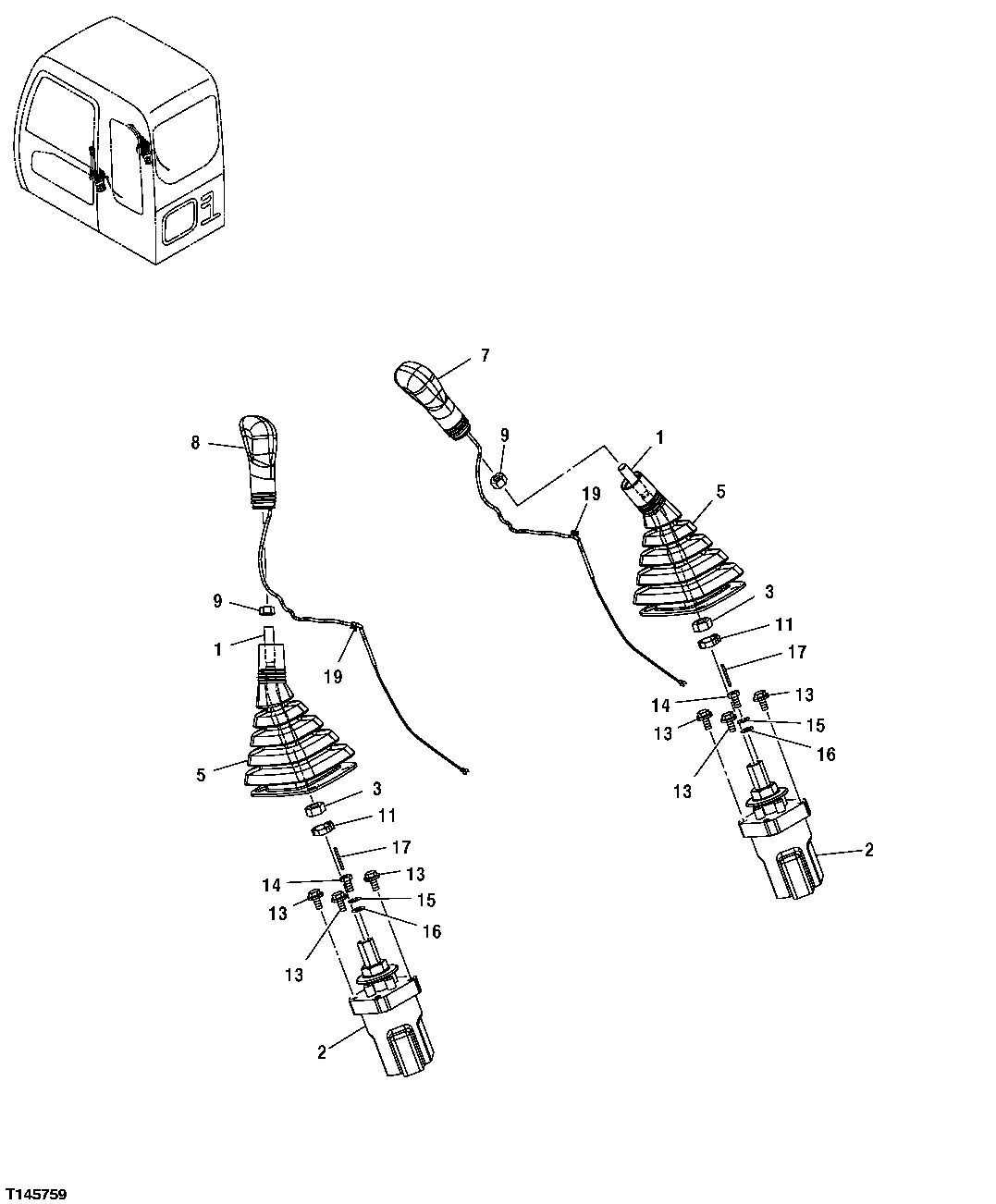

Запчасти John Deere 2054 175 - DIG AND SWING PILOT CONTROL LEVER COMPONENTS 3315 CONTROLS LINKAGE

1

4445322

Lever

SUB FOR TH4445322 AND 9195304

2шт.

2

9239583

Hydr./Pilot Control Valve

USE IF AVAILABLE, IF NOT AVAILABLE SUB 92 39583 SUB FOR TH9195304 AND 9195304, ALSO ORDER (3) 19M7139, (3) 24M7055 AND 4609956

2шт.

FYB60000655

Hydr./Pilot Control Valve

2шт.

3

14M7141

Nut

M14

2шт.

5

2045470

Boot

SUB FOR TH2045470

2шт.

7

2045473

Grip

1шт.

8

2045472

Grip

SUB FOR TH2045472

1шт.

9

14M7357

Nut

M12

2шт.

11

H77698

Tie Band

2шт.

13

19M7932

Cap Screw

M8 X 16

6шт.

Washer

12M7065 NLA

6шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

6шт.

19M7139

Cap Screw

M8 X 20 SUB FOR J260820 OR J900820

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

6шт.

14

4438279

Bolt

SUB FOR TH4438279

2шт.

4609956

Bolt

2шт.

15

Washer

12M7065 NLA

2шт.

16

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

17

34M7086

Spring Pin

3 X 32 mm

2шт.

19

H77698

Tie Band

2шт.
