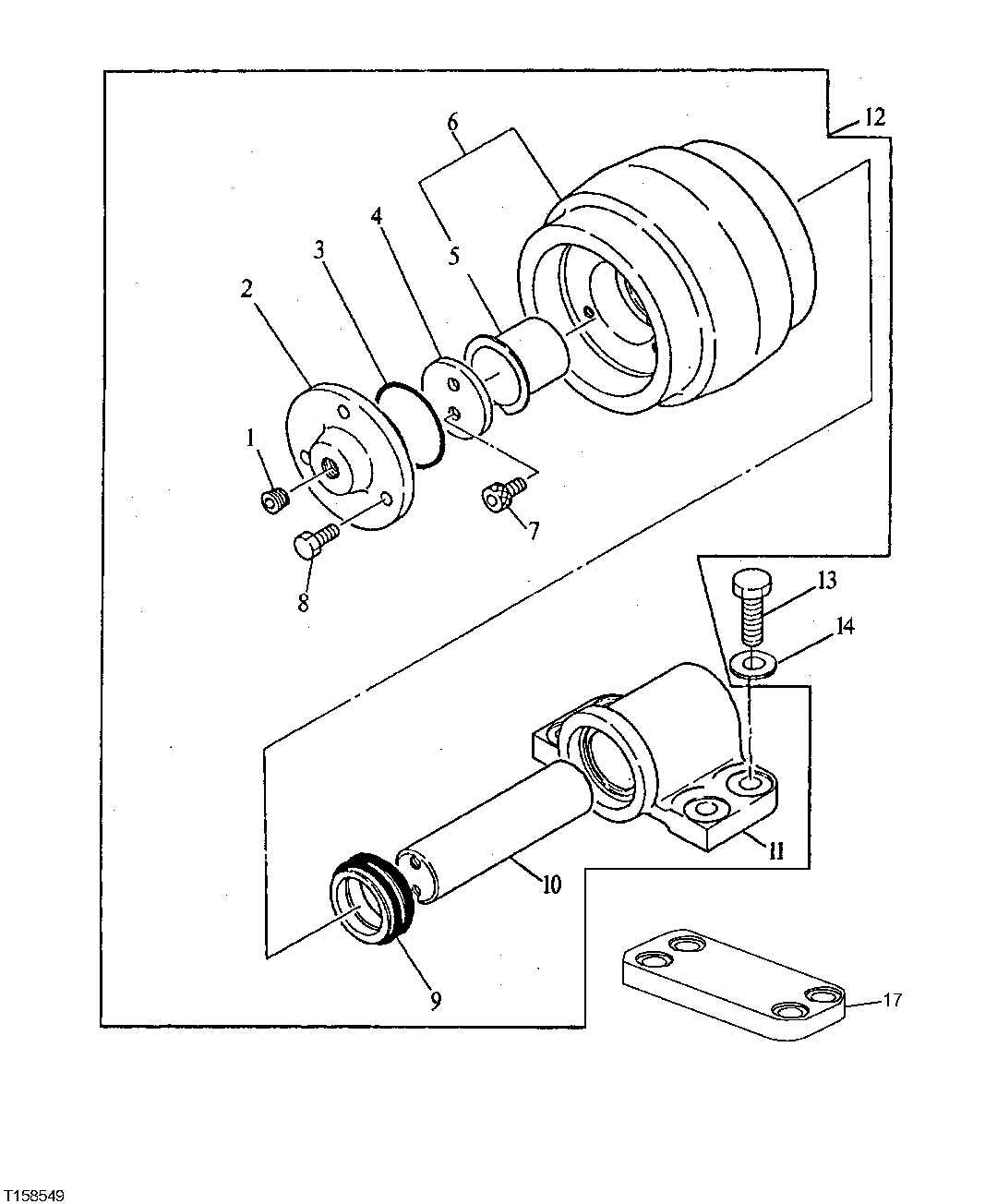

Запчасти John Deere 2054 8 - Replacement Upper Roller 0133 ROLLERS

1

AT180007

Fitting Plug

1шт.

2

Cover

(NOT AVAILABLE)

1шт.

3

O-Ring

(NOT AVAILABLE)

1шт.

4

AT180005

Washer

1шт.

5

AT180004

Bushing

40 X 44 X 61.500 mm (1. 575" X 1.732" X 2.421")

1шт.

6

Roller

(NOT AVAILABLE)

1шт.

7

AT180006

Screw

M10 X 18

2шт.

8

Cap Screw

(NOT AVAILABLE)

4шт.

9

AT180008

Seal

1шт.

10

Shaft

(NOT AVAILABLE)

1шт.

11

Support

(NOT AVAILABLE)

1шт.

12

AP34667

Roller

(ALSO ORDER 4334245 AND (4) 19M8295)

4шт.

13

19M8295

Cap Screw

M16 X 55 (USE WITH 4334245)

16шт.

19M7488

Cap Screw

M16 X 40 (USE WITHOUT 4334245 SPACER)

16шт.

14

Washer

( R73290 NA)

16шт.

17

4334245

Spacer

4шт.
