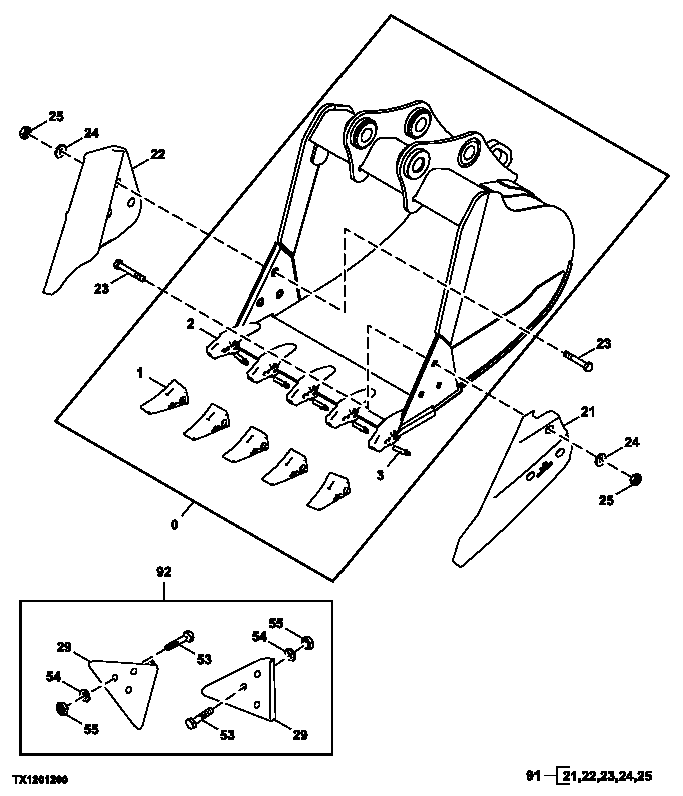

Запчасти John Deere 2054 161 - Heavy Duty Bucket (42 in) (0.99 yd³) 3302 BUCKET WITH TEETH

0

AT456498

Excavator Bucket

Whole Goods

1шт.

1

TK350FD

Tooth

5шт.

2

TK350C150

Bucket Tooth Adapter

5шт.

3

TK350P

Pin Fastener

5шт.

4

TK4L

Lock

Not Illustrated

10шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

29

TPDE31329

Shroud

2шт.

53

09H1772

Bolt

7/8" X 3-1/2"

6шт.

54

12H245

Lock Washer

7/8"

6шт.

55

14H1077

Nut

7/8"

6шт.

91

AT342512

End Bit

3 in., Side Cutter Whole Goods

1шт.

92

AT342511

End Bit

Edge Protector Whole Goods

1шт.
