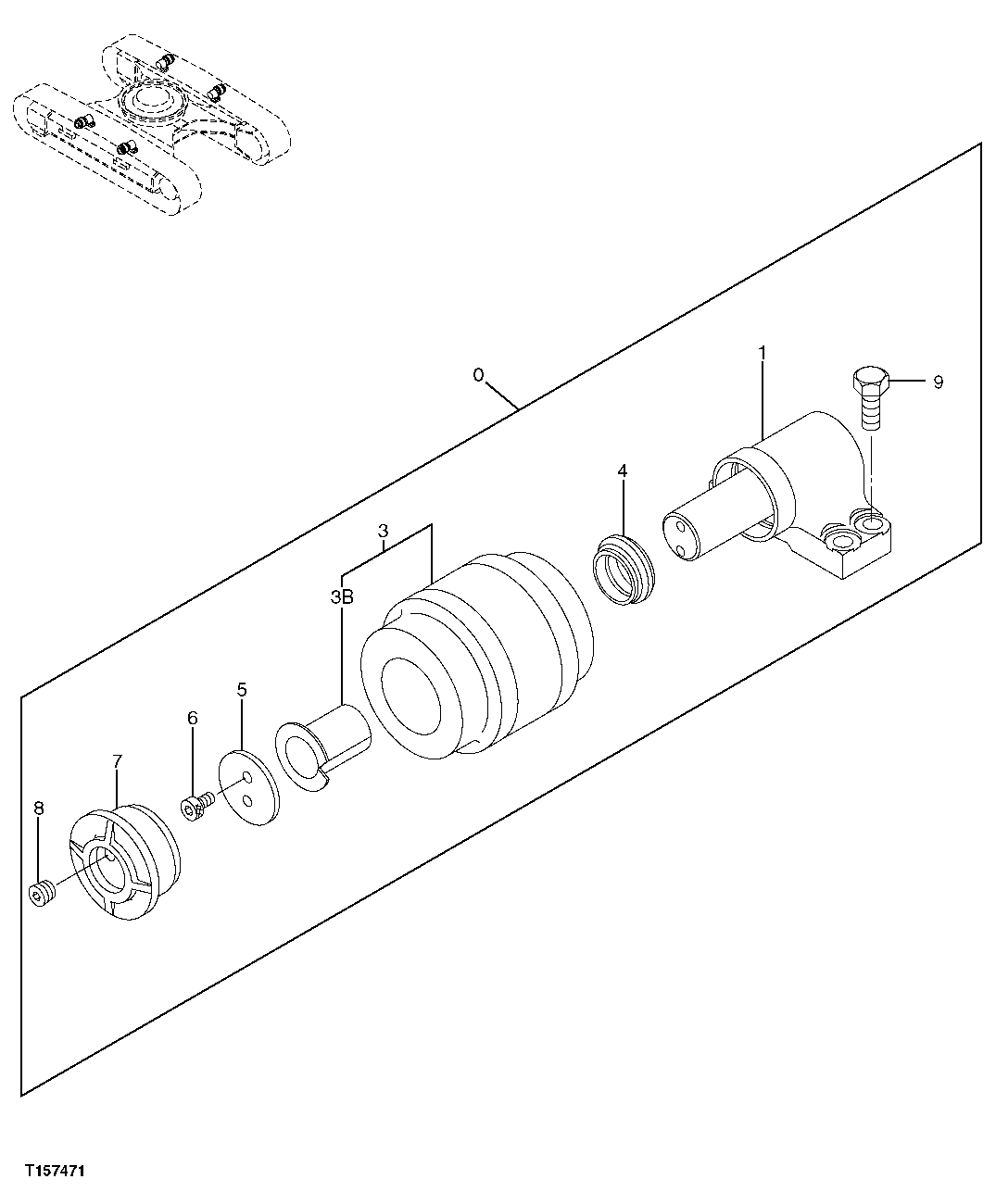

Запчасти John Deere 2054 7 - UPPER ROLLER 0133 ROLLERS

0

Roller

( AP39243 NLA) (SUB AP34667)

4шт.

AP34667

Roller

4шт.

1

Bracket

( AT280856 NLA) (FOR AP 39243 REPLACEMENT ONLY)

1шт.

3

Roller Shell

( AT280857 NLA) (FOR AP 39243 REPLACEMENT ONLY)

1шт.

3B

AT180004

Bushing

(USE WITH AP34667)

1шт.

T191382

Bushing

(USE WITH AP39243)

1шт.

4

AT180008

Seal

(USE WITH AP34667)

1шт.

T191380

Seal

(USE WITH AP39243)

1шт.

5

AT180005

Washer

(USE WITH AP34667)

1шт.

T191379

Thrust Washer

(USE WITH AP39243)

1шт.

6

AT180006

Screw

(USE WITH AP34667)

2шт.

M351018

Bolt

(USE WITH AP39243 ) (SUB FOR T191378)

2шт.

7

T191377

Cover

(USE WITH AP39243)

1шт.

8

AT180007

Fitting Plug

(USE WITH AP34667)

1шт.

AT180007

Fitting Plug

(USE WITH AP39243 ) (SUB FOR T191381 OR T191383)

1шт.

9

19M7488

Cap Screw

M16 X 40 (USE WITHOUT 4334245 SPACER)

16шт.

19M8295

Cap Screw

M16 X 55 (USE WITH 4334245)

16шт.
