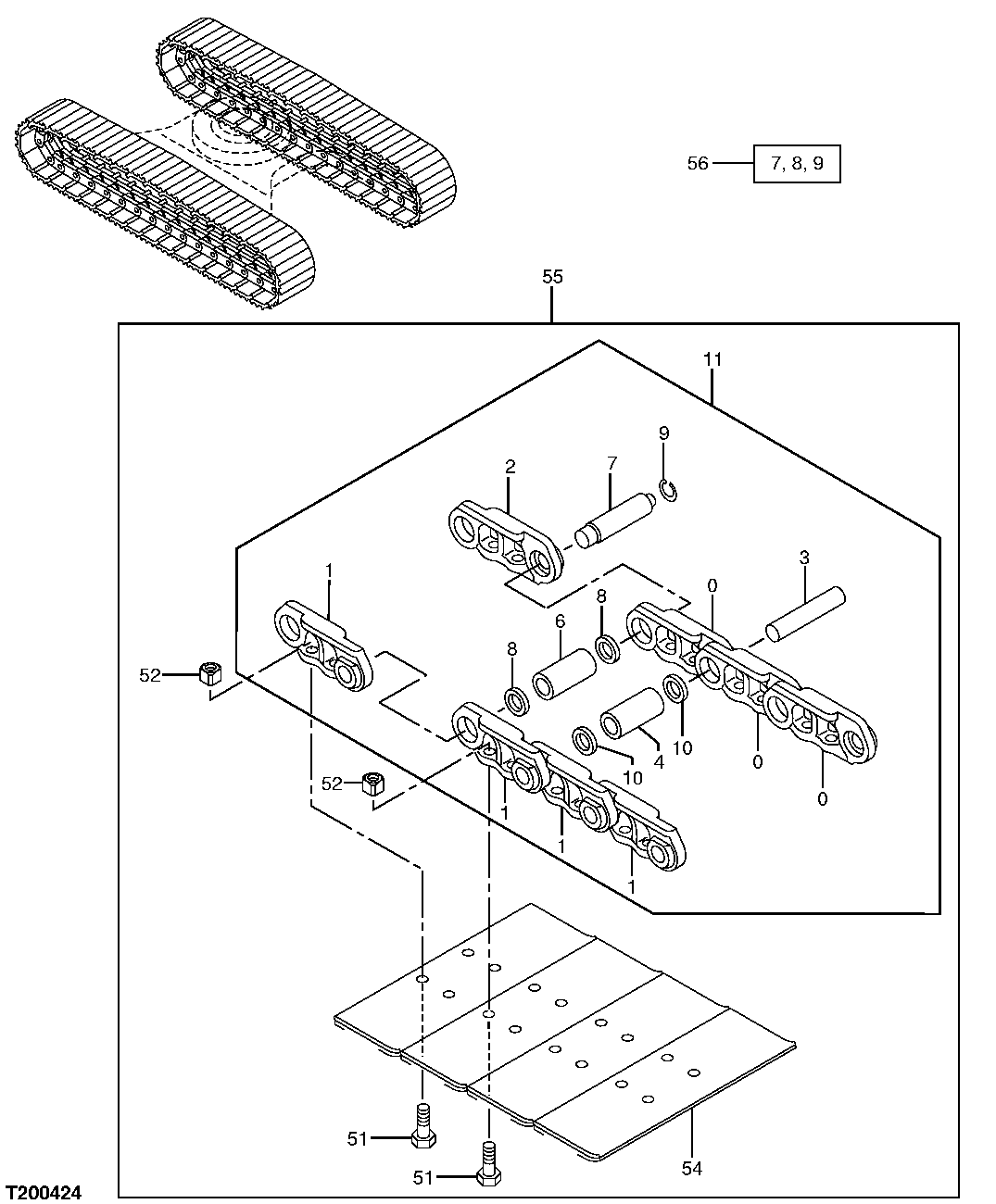

Запчасти John Deere 2054 6 - TRACK CHAINS 0130 TRACK SYSTEMS

0

AT180025

Link

Right (SUB FOR T191399)

42шт.

1

AT180027

Link

Left (SUB FOR T191398)

43шт.

2

T209261

Master Track LINK-RH

Right Master (SUB FOR T191397)

1шт.

3

AT180028

Pin Fastener

(SUB FOR T191394)

42шт.

4

AT186162

Bushing

(SUB FOR T191396)

42шт.

6

AT219468

Bushing

(SUB FOR T191395)

1шт.

7

T209260

Master Track Pin

(SUB FOR AT174861 OR T191393)

1шт.

8

AT219471

Spacer

Master (SUB FOR T191392)

1шт.

9

T209259

Snap Ring

(SUB FOR AT174863 OR T191390)

2шт.

10

AT186161

Seal

(SUB FOR TH100434, T191391 OR 94-2011)

84шт.

11

AT311605

Track Chain W/O Shoes

(SUB FOR AT280860)

1шт.

51

AT180036

Track Bolt

M18 X 52 (SUB FOR T191421)

172шт.

52

AT180048

Nut

M18 (SUB FOR T191422)

172шт.

54

AT180034

Open Center 3 Bar Shoe

(600 MM) Wide (SUB FOR T191420)

43шт.

AT180035

Open Center 3 Bar Shoe

(700 MM) Wide (SUB FOR T191419)

43шт.

55

AT311608

Track Assembly With Shoes

(600 MM SHOES)

1шт.

AT311610

Track Assembly With Shoes

(700 MM SHOES)

1шт.

56

AT313621

Chain Kit

Master Kit (INCLUDES T20925 9, T209260 AND (2) AT219471)

1шт.
