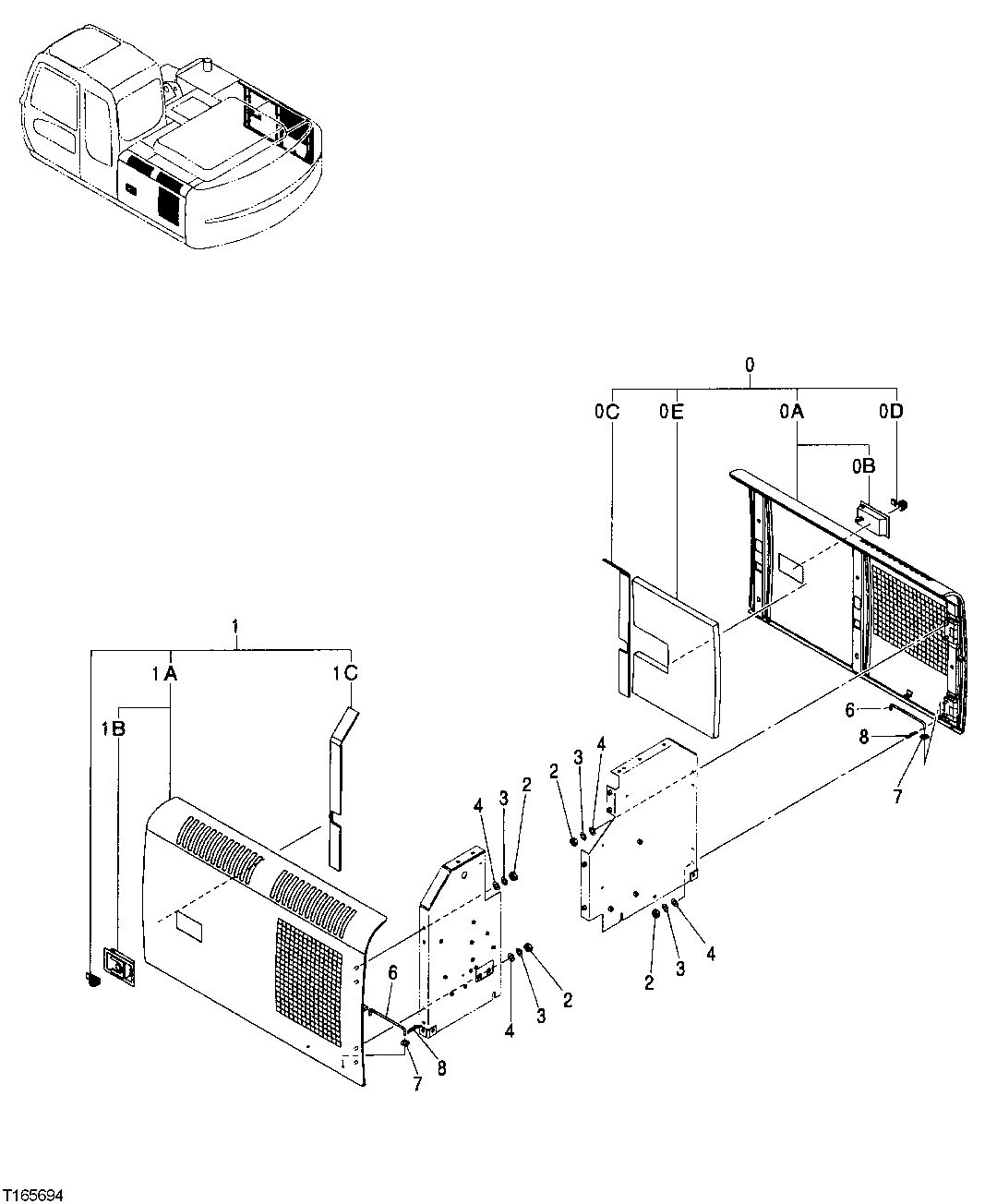

Запчасти John Deere 2054 145 - COOLING PACKAGE AND HYDRAULIC PUMP COMPARTMENT DOORS 1910 HOOD OR ENGINE ENCLOSURE

0

7042508

Door

(ASSY)

1шт.

0A

Door

( 5008357 NLA)

1шт.

0B

4409446

Lock

Weld In (SEE SEPARATE PAGE FOR DETAIL)

1шт.

DH400030

Latch

Rivet In

1шт.

0C

4425575

Isolator

1шт.

0D

4409446

Lock

Weld In

1шт.

DH400030

Latch

Rivet In

1шт.

0E

4447473

Isolator

1шт.

1

7042507

Door

(ASSY)

1шт.

1A

Door

( 5008356 NLA)

1шт.

1B

4409394

Lock

(SEE SEPARATE PAGE FOR DETAIL)

1шт.

1C

4425575

Isolator

1шт.

2

14M7274

Nut

M10

8шт.

3

12M7066

Lock Washer

10 mm

8шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

6

4341788

Rod

(SUB FOR 4341788J)

2шт.

7

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

2шт.

8

4603981

Pin

SUB FOR 4022697

2шт.
