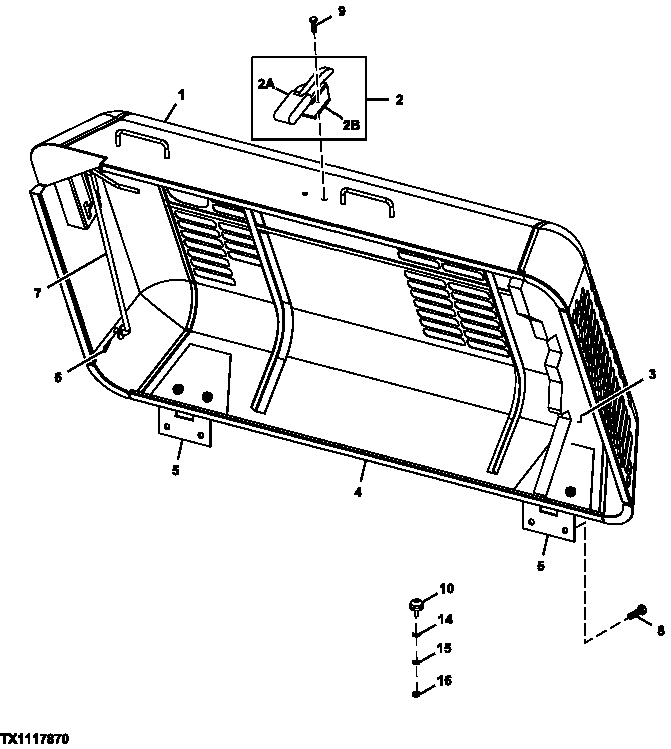

Запчасти John Deere 2054 143 - ENGINE COMPARTMENT HOOD 1910 HOOD OR ENGINE ENCLOSURE

1

DH500067

Hood

(SUB FOR AP35339)

1шт.

2

4361455

Catch

1шт.

3

P70773

Pad

1шт.

4

DH400621

Isolator

3 Fit From Left Side To Latch ( P66463 NLA)

3шт.

DH400613

Isolator

From Latch To Top Left Corner

1шт.

5

DH300125

Hinge

(SUB FOR P61315)

2шт.

6

11H236

Cotter Pin

1/8" X 1"

2шт.

7

AP35340

Rod

1шт.

8

19M7872

Cap Screw

M12 X 25

8шт.

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

9

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

10

4294508

Bumper

2шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

12M7066

Lock Washer

10 mm

2шт.

16

14M7274

Nut

M10

2шт.
