138 - RADIATOR COMPARTMENT FRONT AND REAR PANELS

Запчасти John Deere 2054 138 - RADIATOR COMPARTMENT FRONT AND REAR PANELS 1910 HOOD OR ENGINE ENCLOSURE

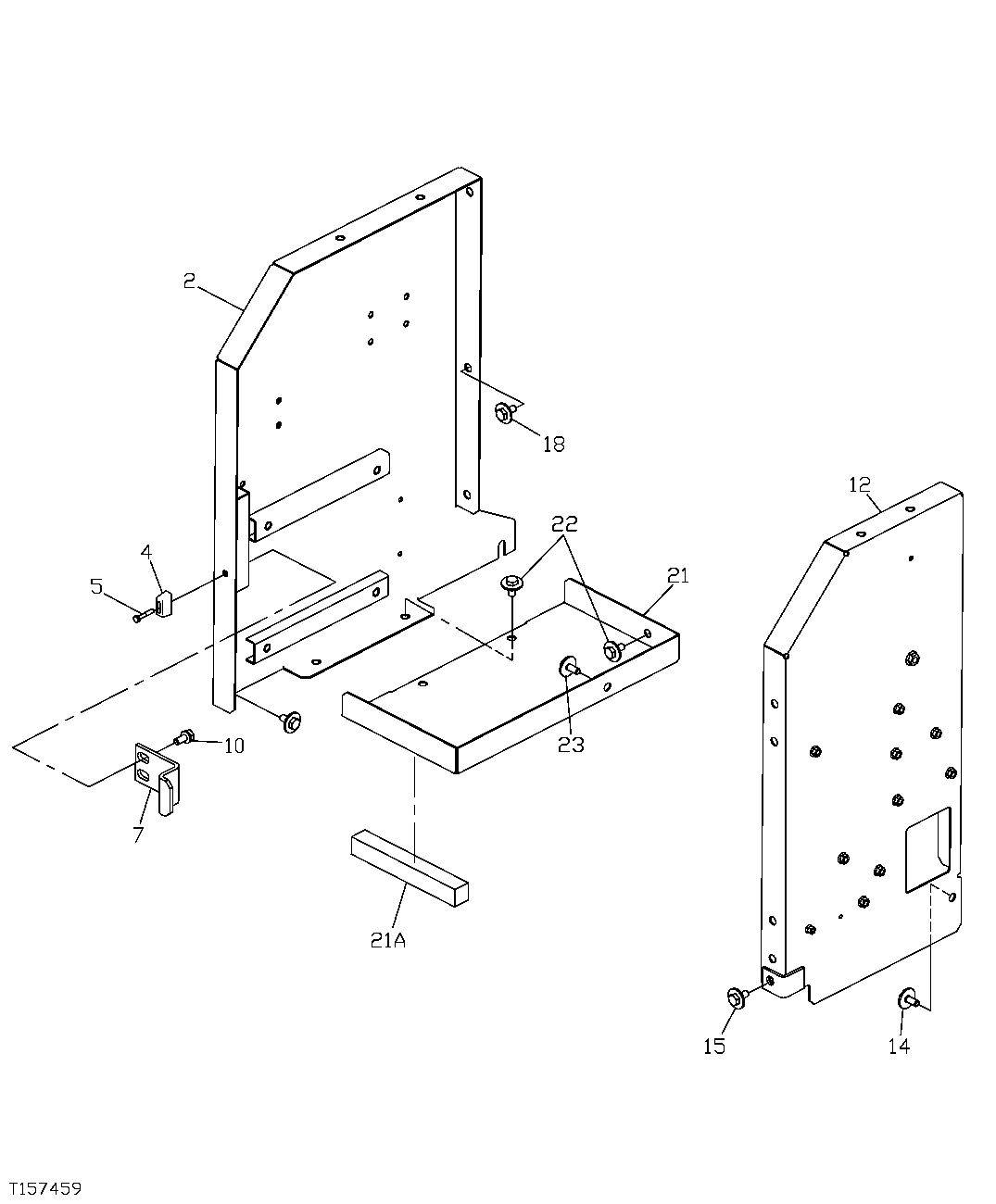

Схема запчастей John Deere 2054 - 138 - RADIATOR COMPARTMENT FRONT AND REAR PANELS 1910 HOOD OR ENGINE ENCLOSURE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

AP38132

Cover

1шт.

4

4609950

Stop

(SUB FOR 4424157)

1шт.

5

19M7177

Cap Screw

M6 X 35

1шт.

7

4431357

Stop

1шт.

10

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12

AP37259

Cover

1шт.

14

19M7402

Cap Screw

M10 X 25 (SUB FOR J031025)

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

1шт.

15

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

18

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

21

AP38131

Cover

1шт.

21A

P68386

Isolator

2шт.

22

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

23

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.
