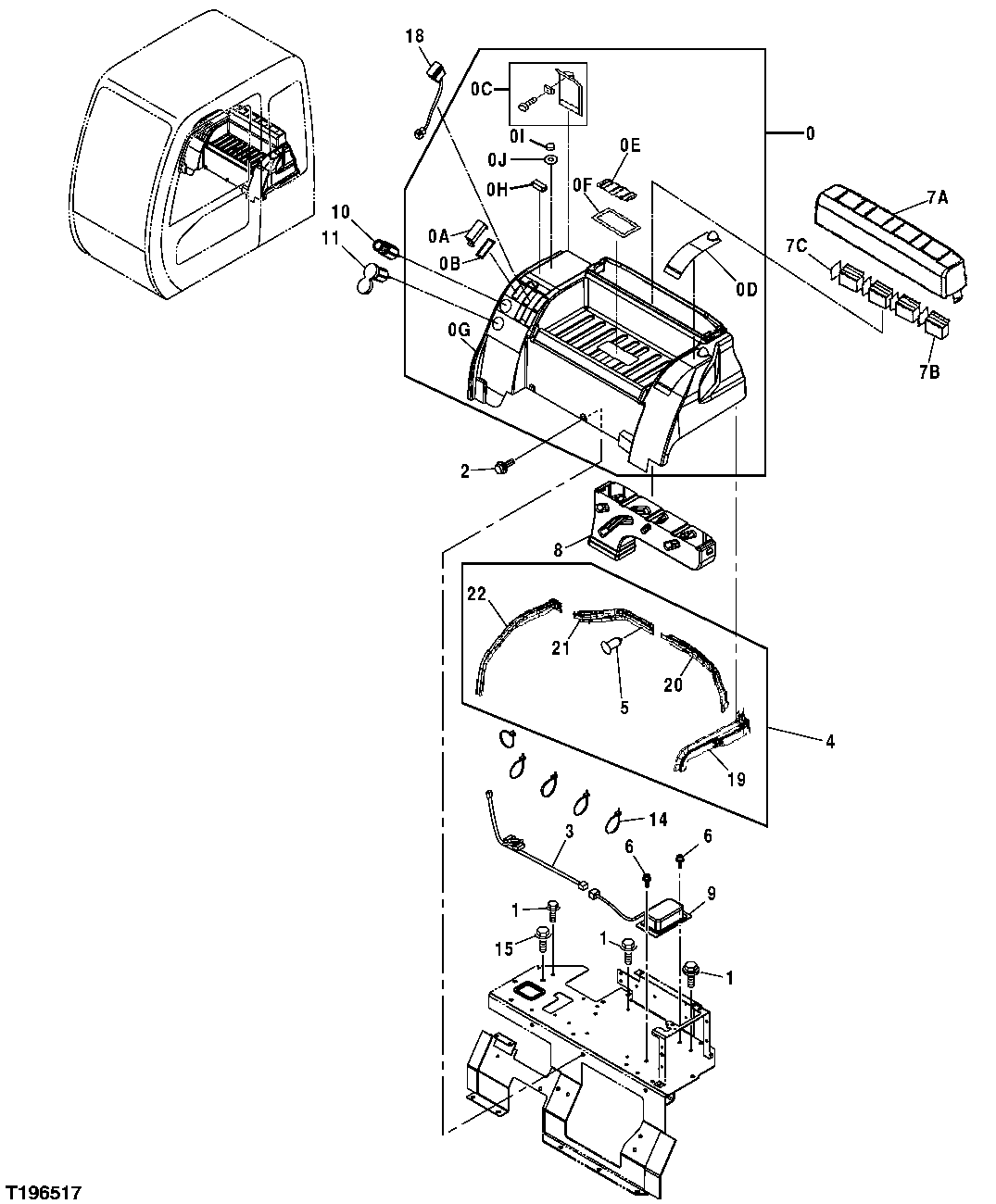

Запчасти John Deere 2054 134 - CAB REAR CONSOLE COVER, POWER SUPPLY, AND AIR DIFFUSER 1830 HEATING AND AIR CONDITIONING

0

4433793

Tray

SUB FOR TH4433793

1шт.

0A

4456725

Cover

SUB FOR TH4456725

5шт.

0B

4456723

Isolator

SUB FOR TH4456723

5шт.

0C

4458228

Cover

(RELAY)

1шт.

0D

4458230

Cover

(FUSE)

1шт.

0E

4458231

Cover

(CENTER)

1шт.

0F

4458232

Seal

1шт.

0G

4458227

Tray

1шт.

0H

4458229

Magnet

1шт.

0I

4458233

Cover

1шт.

0J

4458234

Seal

1шт.

1

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J050 820, USE WITH 24M7036 AND 12M7065

3шт.

24M7036

Washer

9 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.

2

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

3

3091204

Wiring Harness

SUB FOR TH3091204

1шт.

4

Sealing Trim

4436132 NLA

1шт.

5

4425573

Clip

SUB FOR TH4425573

13шт.

6

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

7

4433794

Cover

SUB FOR TH4433794

1шт.

7A

Cover

( 4458235 NLA)

1шт.

7B

4458236

Louver

4шт.

7C

4458237

Bracket

4шт.

8

4426156

Air Duct

SUB FOR TH4426156

1шт.

9

4450008

Power Supply

SUB FOR TH4450008

1шт.

10

AR60937

Electrical Lighter

(12 VOLT)

1шт.

AU42809

Resistor

(12 VOLT)

1шт.

AT78634

Wiring Lead

(12 VOLT)

1шт.

AT78633

Housing

(12 VOLT)

1шт.

Electrical Lighter

4357862 NLA (24 VOLT)

1шт.

11

4432965

Elec. Connector Terminal

SUB FOR TH4432965

1шт.

14

H77698

Tie Band

5шт.

15

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

18

4352947

Switch

(SUB FOR TH4352947)(FOR US E WITH AUXILIARY FUNCTIONS)

2шт.

19

Sealing Trim

4458238 NLA

1шт.

20

Sealing Trim

4458239 NLA

1шт.

21

Sealing Trim

4458240 NLA

1шт.

22

Sealing Trim

4458241 NLA

1шт.
