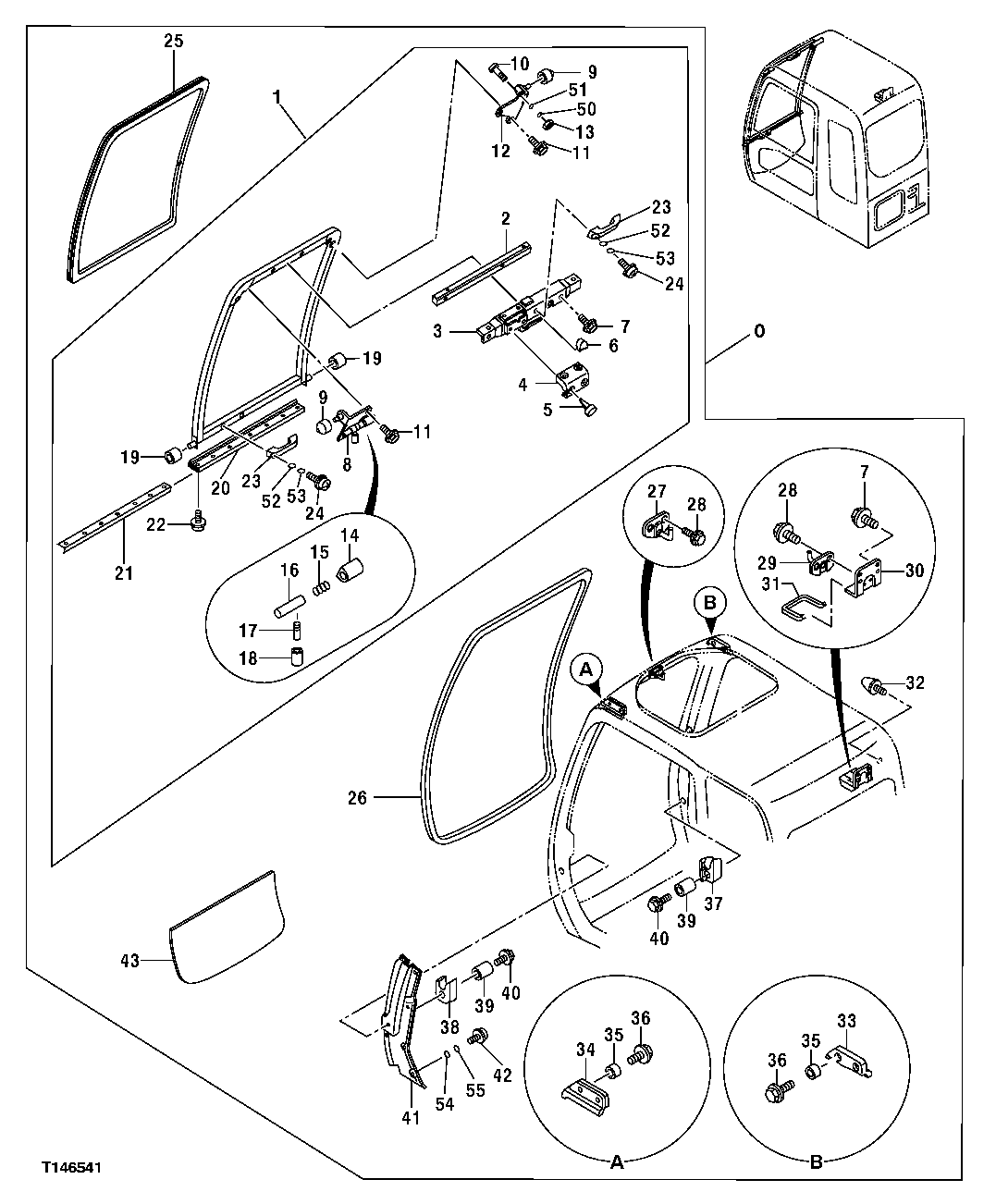

Запчасти John Deere 2054 112 - CAB FRONT WINDOWS, HANDLES AND OPENING TRACKS 1810 OPERATOR ENCLOSURE

0

9202944

Cab

(SUB FOR 4474296 OR 4602549)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENT S LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

TH4453689

Window

1шт.

2

TH4456218

Weld Nut

1шт.

3

TH4456219

Lock

1шт.

4

TH4456220

Cover

1шт.

5

TH4456221

Clip

4шт.

6

TH4456222

Cover

1шт.

7

AT214311

Screw With Washer

4шт.

8

TH4456223

Bracket

1шт.

9

TH4456224

Roller

2шт.

10

TH4456225

Screw

1шт.

11

Screw With Washer

( AT214305 OR 4372219 NLA)

4шт.

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)

4шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J922010)

4шт.

12

TH4456226

Bracket

1шт.

13

19M7361

Cap Screw

M12 X 50

1шт.

14

TH4456227

Cover

1шт.

15

494918

Spring

(SUB FOR TH106783)

1шт.

16

AT214104

Pin

1шт.

17

4295480

Lever

(SUB FOR AT156993)

1шт.

18

4295876

Cover

(SUB FOR AT156994)

1шт.

19

4204558

Roller

(SUB FOR TH108638)

2шт.

20

TH4456228

Isolator

1шт.

21

TH4456229

Plate

1шт.

22

AT214301

Screw

4шт.

23

4204579

Handle

(SUB FOR TH108661)

2шт.

24

19M8425

Cap Screw

M6 X 16

4шт.

25

4448306

Windowpane

(SUB FOR 4474531)(BRONZE)

1шт.

4602562

Windowpane

(GREEN)

1шт.

26

TH4456230

Isolator

1шт.

27

TH4456231

Striker

1шт.

28

AT214297

Screw With Washer

4шт.

29

TH4456232

Striker

1шт.

30

TH4456233

Bracket

1шт.

31

TH4456234

Isolator

1шт.

32

4204586

Bumper

(SUB FOR TH108668)

1шт.

33

TH4456235

Isolator

1шт.

34

TH4456236

Isolator

1шт.

35

TH4456237

Bushing

4шт.

36

TH4456238

Bolt

4шт.

37

TH4456239

Stop

1шт.

38

TH4456240

Stop

1шт.

39

TH4456241

Bushing

2шт.

40

TH4456242

Bolt

2шт.

41

4474532

Cover

1шт.

42

21M7246

Screw

M6 X 16

6шт.

43

Windowpane

(SUB 4602563R)(BRONZE) ( 4448307 NLA)

1шт.

4602563R

Windowpane

(SUB FOR 4602563)(GREEN)

1шт.

50

12M7068

Lock Washer

14 mm

1шт.

51

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

52

12M7006

Lock Washer

6 mm

4шт.

53

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

54

12M7006

Lock Washer

6 mm

6шт.

55

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.
