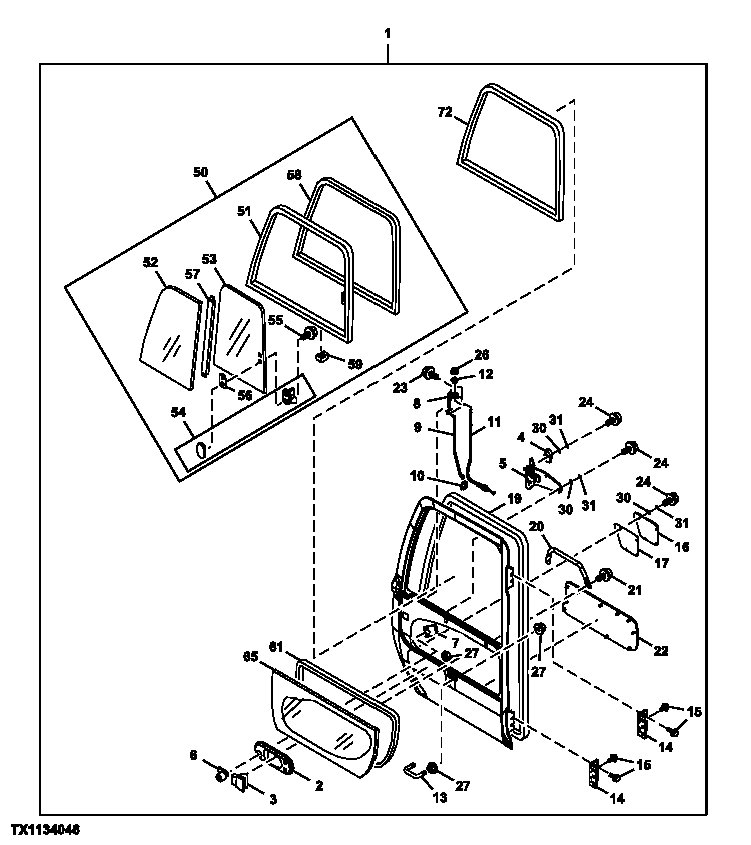

Запчасти John Deere 2054 111 - Cab Door Assembly, Latch and Windows 1810 OPERATOR ENCLOSURE

0

9202944

Cab

(SUB FOR (1) 4474296 OR (1) 4602549) Not Ill ustrated Contains All Items On This Page - Ad ditional Components Listed On Separate Pages

1шт.

1

4474301

Door

Assembly

1шт.

2

TH4455979

Cover

1шт.

3

4369645

Handle

Outer SUB FOR AT214145

1шт.

4

TH4455975

Handle

Inner

1шт.

5

4620431

Handle

(SUB FOR 4474302, 4456173)(INNER)

1шт.

6

AT176789

Lock

1шт.

7

4372091

Clip

(SUB FOR AT214290)

1шт.

8

TH4455982

Lock

1шт.

9

TH4455983

Rod

1шт.

10

TH4444664

Holder

1шт.

11

4456171

Wire

(SUB FOR TH4456171)

1шт.

4623165

Wire

(ALSO ORDER 4623166)

1шт.

12

TH4455981

Bushing

1шт.

13

AT214160

U-Bolt

1шт.

14

4455980

Hinge

(SUB FOR 4474303 OR TH4455980)

2шт.

15

AT214313

Screw With Washer

6шт.

16

4474304

Cover

1шт.

17

TH4455977

Isolator

1шт.

19

TH4455978

Weatherstrip

1шт.

20

TH4453670

Handrail

1шт.

21

AT214299

Screw With Washer

2шт.

22

4453671

Sheet

1шт.

23

AT213624

Screw

3шт.

AT214314

Washer

3шт.

24

21M7285

Screw

M6 X 12 (SUB FOR 21M7246)

8шт.

26

4456172

Nut

1шт.

27

4414857

Nut

(SUB FOR AT157068)

4шт.

28

4623166

Clip

(USE WITH 4623165) Not Illustrated

1шт.

29

4320147

Clip

(USE WITH 4453671) Not Illustrated

ARшт.

30

12M7006

Lock Washer

6 mm

8шт.

31

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

50

4453676

Window

(SUB FOR (1) TH4453676) Bronze

1шт.

4602582

Window

Green

1шт.

51

4453673

Frame

1шт.

52

Windowpane

( TH4448308, 4448308 NLA) Bronze

1шт.

4602564R

Windowpane

(SUB FOR (1) 4602564) Green

1шт.

53

Windowpane

( 4448309 NLA) (SUB FOR (1) TH44 48309) (SUB (1) 4602565R) Bronze

1шт.

4602565R

Windowpane

(SUB FOR (1) 4602565) Green

1шт.

54

AT214152

Lock

1шт.

55

AT213608

Screw With Washer

2шт.

56

AT214292

Gasket

1шт.

57

TH4453675

Isolator

1шт.

58

TH4453674

Window

1шт.

59

4147896

Spacer

(SUB FOR TH108646)

3шт.

61

AT218141

Seal

1шт.

65

4448310

Windowpane

(SUB FOR (1) 4468943) Bronze

1шт.

4602566

Windowpane

Green

1шт.

72

TH4448315

Isolator

1шт.
