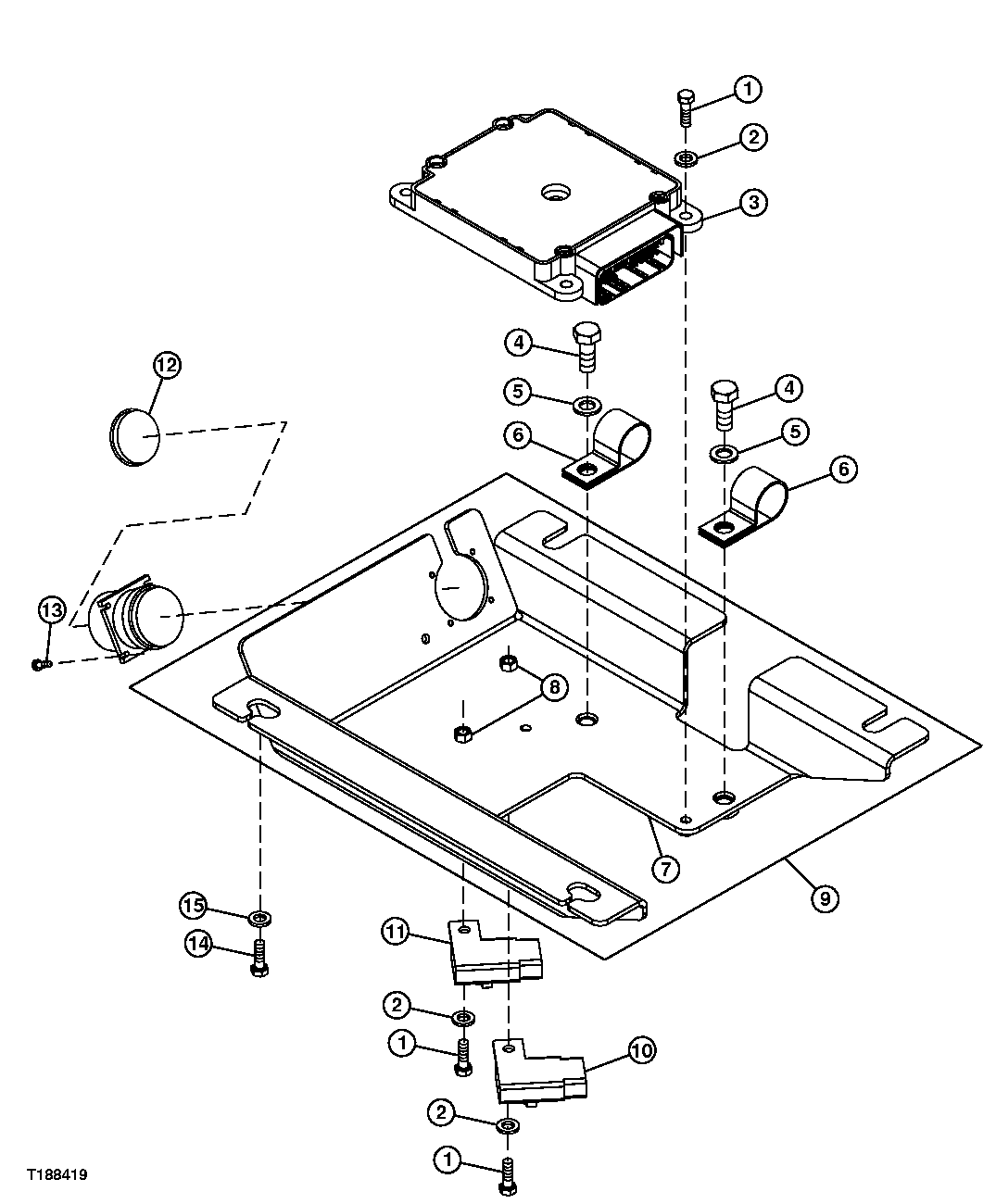

Запчасти John Deere 2054 97 - ENGINE CONTROL UNIT ASSEMBLY 1674 WIRING HARNESS & SWITCHES

1

19M7372

Cap Screw

M5 X 16

6шт.

2

24M7088

Washer

6.600 X 12 X 1.600 mm

6шт.

3

RE532629

Engine Controller

(SUB FOR RE518177, OR RE519775THI S APPLICATION ) (SUB FOR RE522529) (BLANK ECU) (MUST DOWNLOAD SOFTWAR E ACCORDING TO ENGINE SERIAL NUMBE R)

1шт.

4

19M7881

Screw

M8 X 20

2шт.

5

24M7095

Washer

8.400 X 15 X 1.600 mm

2шт.

6

T78787

Clamp

2шт.

7

Channel

( T188696 NLA) (SUB AT196349)

1шт.

8

14M7297

Nut

M5

6шт.

9

AT196349

Support

1шт.

10

57M7121

Fuse

ECU (10 AMP)

1шт.

11

57M7125

Fuse

SERVICE EXPERT™ (5 AMP)

1шт.

12

57M7477

Electrical Connector Cap

1шт.

13

21M7394

Screw

M3 X 10

4шт.

14

19M8533

Screw

M10 X 25

4шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
