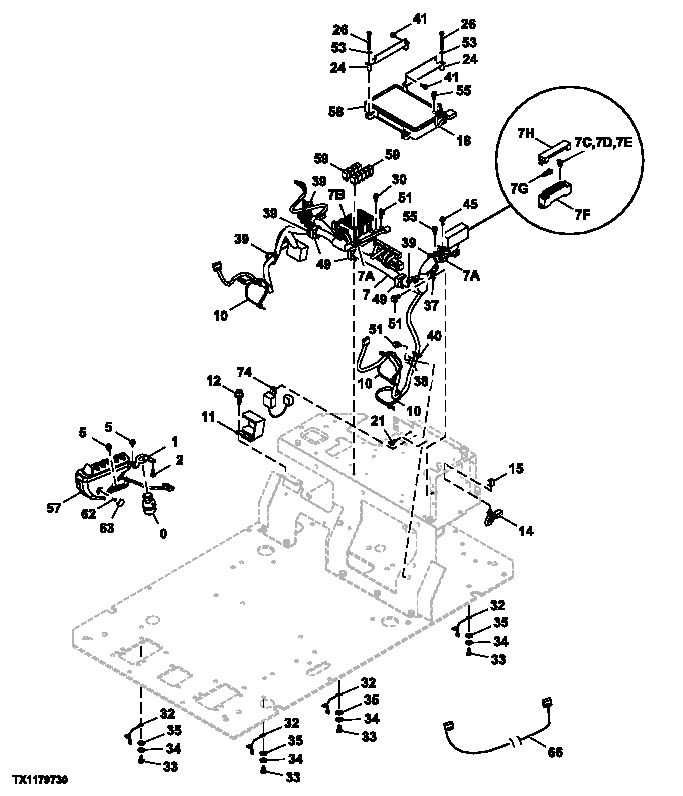

Запчасти John Deere 2054 93 - Cab Main Wiring Harness, Fuses And Ignition Switch 1674 WIRING HARNESS & SWITCHES

37

XCL-19

Hose Clamp

SUB FOR 4192035

1шт.

38

R73384

Clamp

SUB FOR 4190253

1шт.

39

H77698

Tie Band

SUB FOR 4055312

5шт.

40

H77698

Tie Band

SUB FOR 4055311, M88199

1шт.

41

19M7700

Cap Screw

M5 X 10

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

45

21M7267

Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

49

4449019

Clip

3шт.

51

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

53

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

55

21M7394

Screw

M3 X 10 SUB FOR J460310, AL SO ORDER 24H1914 AND 12H233

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

57

4454518

Control Console

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

58

9226757

Vehicle Controller

SUB FOR 4457210

1шт.

59

4436534

Relay

9шт.

62

4381572

Screw

1шт.

63

4426354

Cap

1шт.

66

2048203

Wiring Harness

2.75 m Extension

1шт.

2048184

Wiring Harness

4.6 m Extension

1шт.

74

AT195741

Relay

Alternator

1шт.
