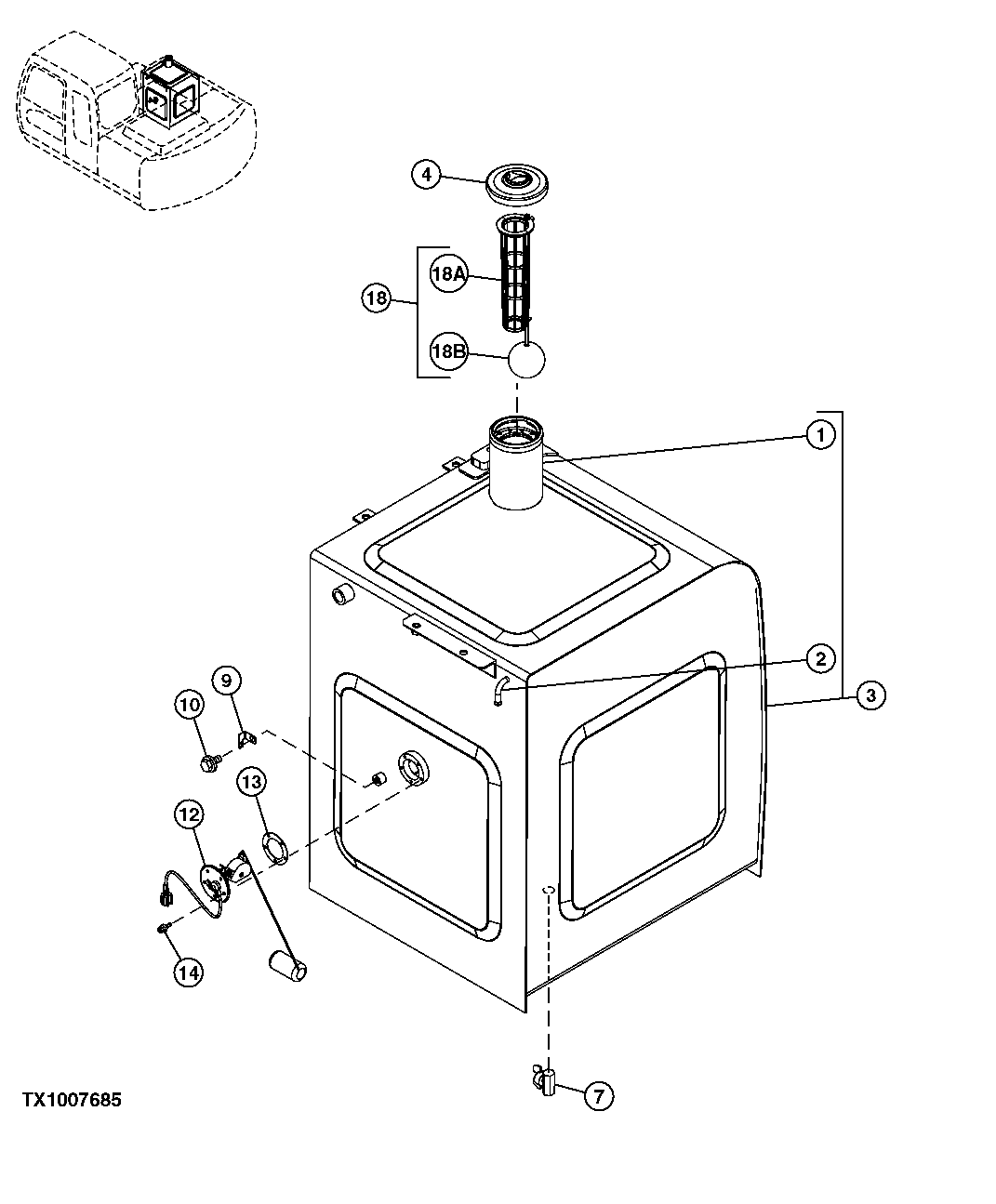

Запчасти John Deere 2054 76 - Fuel Tank, Level Float and Filler Cap 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

FYA00027433

Tube

SUB FOR 4121497

1шт.

2

4249777

Line

1шт.

3

AP37578

Fuel Tank

1шт.

4

4361638

Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT323462

Filler Cap

SUB FOR (1) 4361638, CAN BE LOCKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

AT194969

Key

1шт.

4168820

Packing

1шт.

6

4449361

Elbow Fitting

Main Fuel Line Not Illustrated

1шт.

7

AT13740

Drain Valve

1шт.

9

4257159

Bracket

1шт.

10

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

12

4660782

Float

SUB FOR 4257128

1шт.

13

T211051

Gasket

SUB FOR U42323

1шт.

14

21M7278

Screw

M5 X 10

5шт.

12M7064

Lock Washer

5 mm

5шт.

18

4353560

Strainer

1шт.

18A

4353560

Strainer

SUB FOR 4372619

1шт.

18B

4372620

Float

1шт.
