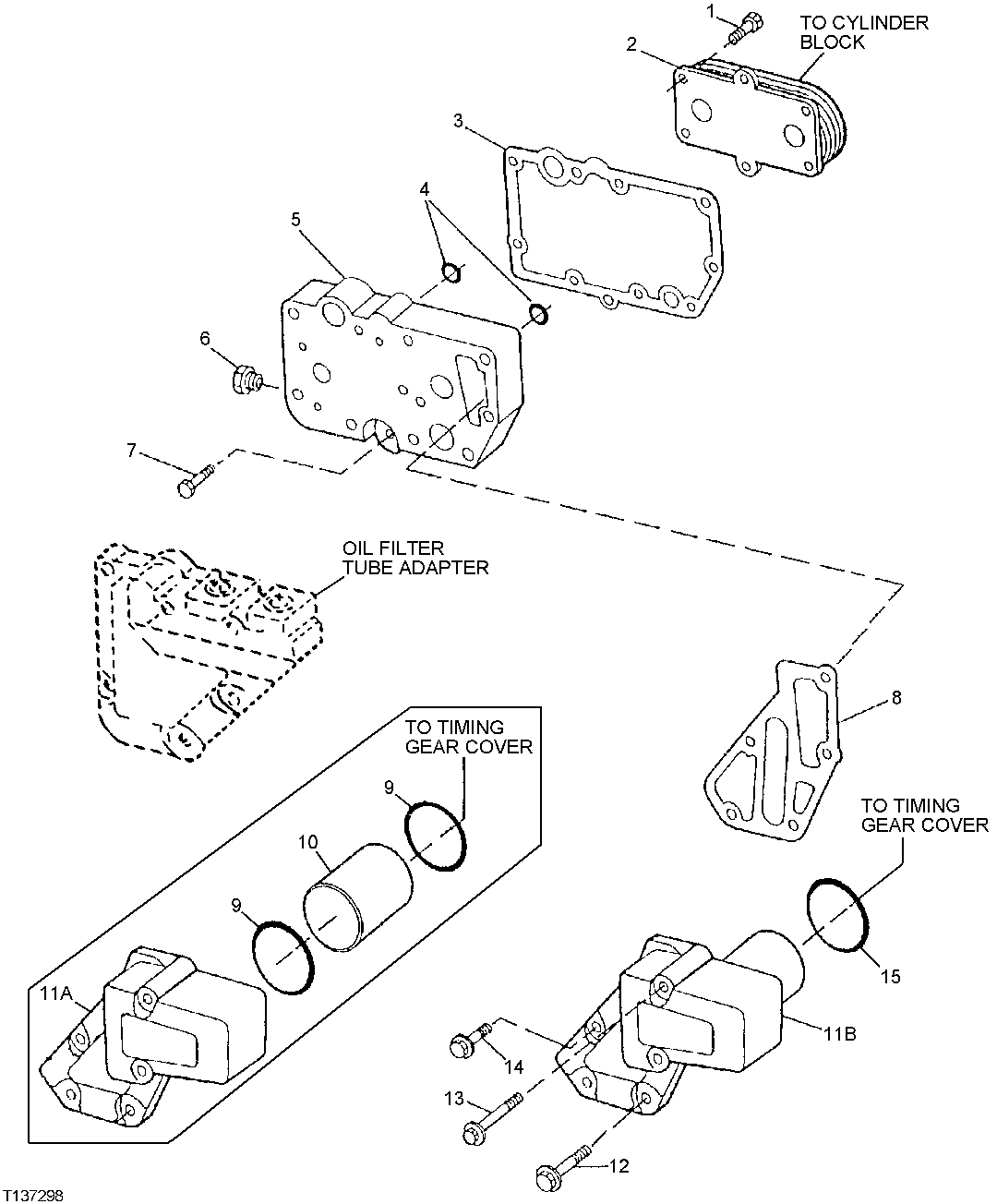

Запчасти John Deere 00LC 59 - ENGINE OIL COOLER (071872 - ) 0419A OIL COOLER PE6068TT051 PE6068TT051

1

RE67231

Screw

M6 X 16 (WITH PRE-APPLIED LOCTITE)

6шт.

2

RE560752

Oil Cooler

(A) (SUB FOR RE56690)

1шт.

RE522821

Oil Cooler

(RE522821 INCLUDES: RE56690 (1), RE 67231 (6), R123471 (1), T122075 (2)

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46685

Plug

1шт.

7

RE46686

Plug

(M12X1.5)

1шт.

RE46686

Fitting

(SAE)

1шт.

8

R501428

Gasket

1шт.

9

R61105

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

10

R115252

Bushing

1шт.

11A

R135177

Adapter Fitting

(SUB R502811)

1шт.

11B

R502811

Adapter Fitting

1шт.

12

19M7970

Screw

M8 X 100

2шт.

13

RE67238

Screw

M8 X 20 (WITH PRE-APPLIED SEALANT)

1шт.

14

19M7802

Screw

M8 X 65

2шт.

15

R504734

O-Ring

1шт.
