Запчасти John Deere 00LC 55 - WATER PUMP INLET AND PULLEY (071872 - ) 0417A WATER PUMP PE6068TT051 PE6068TT051

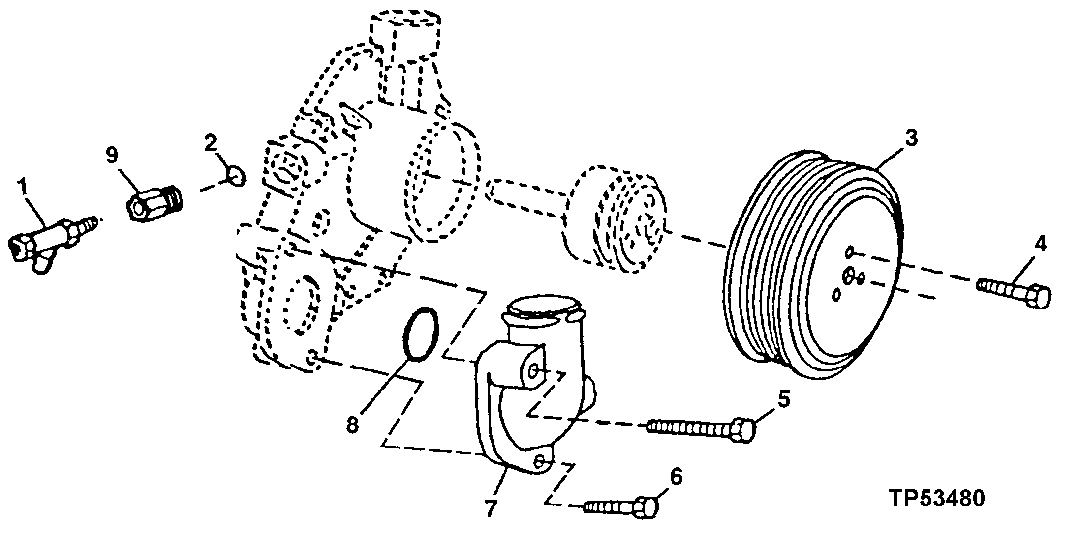

Схема запчастей John Deere 00LC - 55 - WATER PUMP INLET AND PULLEY (071872 - ) 0417A WATER PUMP PE6068TT051 PE6068TT051

Артикул

Название

Примечание

Количество

1

RE507952

Drain Valve

(SUB FOR RE59579, THIS APPLICATION)

1шт.

2

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

3

R115250

Pulley

1шт.

4

19M7774

Screw

M6 X 12

3шт.

5

19M7802

Adapter Fitting

1шт.

6

19M7867

Adapter Fitting

1шт.

7

R121635

Elbow Fitting

1шт.

8

R89944

O-Ring

50.394 X 3.531 mm (1-63/64" X 0.139")

1шт.

9

RE520229

Adapter Fitting

(SUB FOR RE68908)

1шт.

Выбрано товаров: 9
