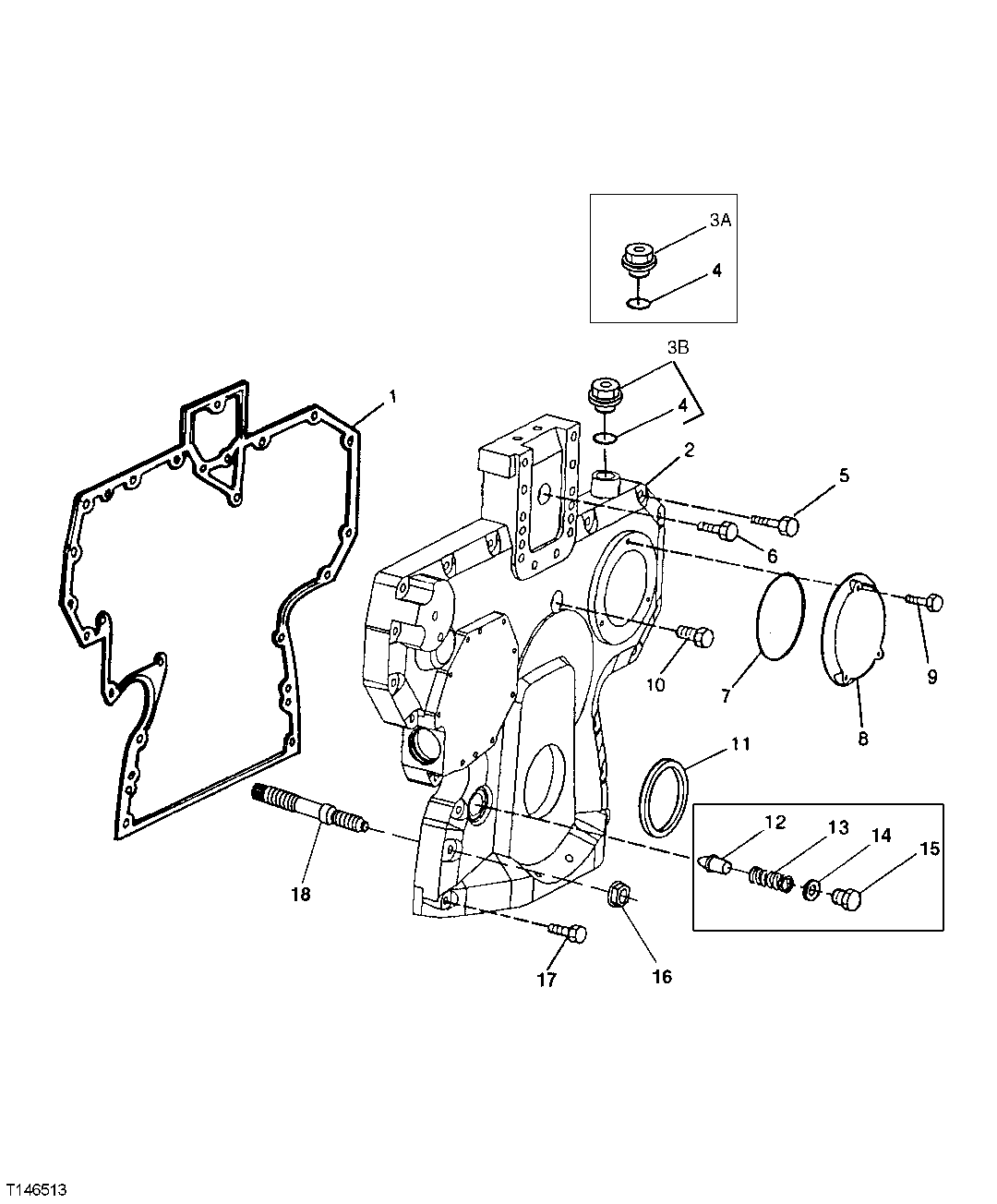

Запчасти John Deere 00LC 30 - TIMING GEAR COVER (071872 - 900551) 0402A CAMSHAFT AND VALVE ACTUATING MEANS PE6068TT051 PE6068TT051

1

R136515

Gasket

1шт.

2

R505461

Cover

(SUB FOR R501297 ) (SU B R504724 AND RE515978)

1шт.

3

RE501938

Plug

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

19M7801

Screw

M8 X 60

1шт.

RE67239

Screw

1шт.

6

19M8291

Screw

M8 X 35

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

19M7801

Screw

M8 X 60

1шт.

11

RE516340

Seal

(MARKED RE52346 OR RE50 5515 ) (SUB FOR RE59810)

1шт.

12

R83169

Valve

1шт.

13

T27658

Spring

1шт.

14

A4827R

Washer

1шт.

15

R91692

Fitting Plug

OIL PRESSURE REGULATING

1шт.

16

14M7296

Flange Nut

M10

4шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R123584

Stud

LOWER

4шт.

R134518

Stud

UPPER

2шт.
