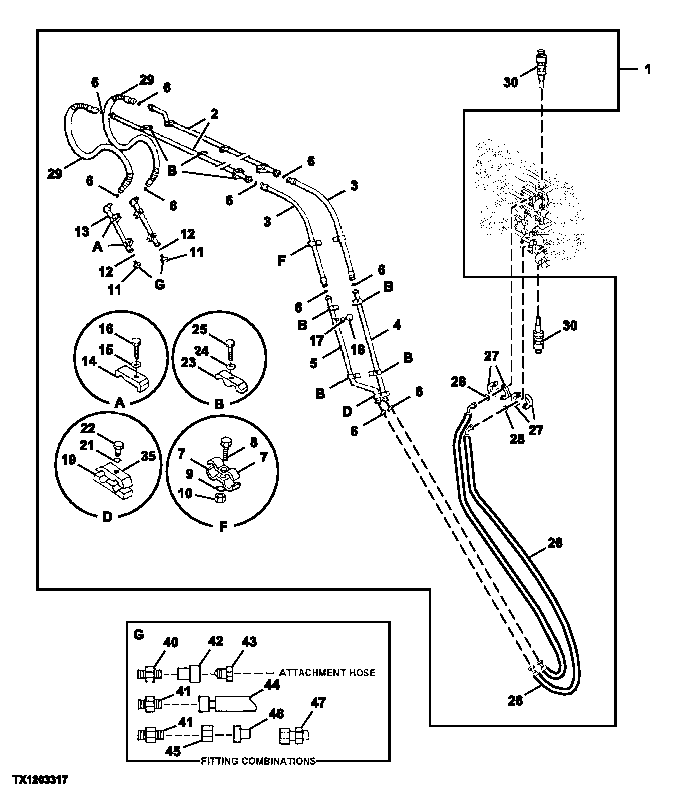

Запчасти John Deere 00LC 356 - AUXILIARY HYDRAULIC PLUMBING 3360 HYDRAULIC SYSTEM

1

Field Installation Kit

WHOLE GOODS ( AT178472 NLA)

1шт.

2

AT159786

Oil Line

2шт.

3

AT159782

Hydraulic Hose

36.5252" X 1905 mm (75") X 36.5252"

2шт.

4

AT179566

Oil Line

1шт.

5

AT179567

Oil Line

1шт.

6

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

10шт.

7

4202103

Clamp

(SUB FOR TH108302)

4шт.

8

19M7361

Cap Screw

M12 X 50

2шт.

9

12H301

Lock Washer

1/2"

2шт.

10

14M7275

Nut

M12

2шт.

11

38H1151

Fitting Plug

2шт.

12

T78612

O-Ring

2шт.

13

AT159934

Oil Line

2шт.

14

4190127

Clamp

(SUB FOR TH108313)

4шт.

15

12H301

Lock Washer

1/2"

4шт.

16

19M7753

Cap Screw

M12 X 70

4шт.

17

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

18

38H1419

Fitting

(SUB FOR 38H1418, THIS APPLICATION)

1шт.

19

4249704

Clamp

(SUB FOR AT122946)

1шт.

21

12H301

Lock Washer

1/2"

1шт.

22

19M7758

Cap Screw

M12 X 130

1шт.

23

4153488

Clamp

(SUB FOR TH103780)

10шт.

24

12H301

Lock Washer

1/2"

10шт.

25

19M7753

Cap Screw

M12 X 70

10шт.

26

AT179568

Hydraulic Hose

1" X 1422 mm (56") X 36.5252"

2шт.

27

H61354

Flange Fitting

(SUB FOR R29424, THIS APPLICATION)

4шт.

28

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139") (SUB FOR T59014, THIS APPLICATION)

2шт.

29

AT179239

Hydraulic Hose

36.5252" X 1524 mm (60") X 36.52 52" Use With 2.96 m Standard Arm

2шт.

30

4282718

Pressure Relief Valve

(SUB FOR AT155693)

2шт.

35

4189860

Clamp

(SUB FOR TH108314)

1шт.

40

38H1196

Adapter Fitting

(-20) 1 11/16 ORFS X ( -16) 1 5/16 SAE O-Ring

2шт.

4207425

Adapter Fitting

(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP

2шт.

38H1165

Adapter Fitting

(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-Ring

2шт.

4267610

Adapter Fitting

(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP

2шт.

41

38H1282

Union Fitting

(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS

2шт.

42

AT117364

Hydr. Quick Coupler Socket

(-12) 1 1/16 Female Qu ick Coupler SAE O-Ring

2шт.

AT120499

Coupling

(-16) 1 5/16 Female Qu ick Coupler SAE O-Ring

2шт.

43

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-Ring

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-Ring

2шт.

44

X1JS78-20-16

Hose Fitting

1 1/4 X 1 IN Hose End Straight

2шт.

X1J978-20-16

Elbow Fitting

90 DEG 1 1/4 X 1 IN Hose End

2шт.

45

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

46

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

47

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 ) SAE O-Ring

2шт.
