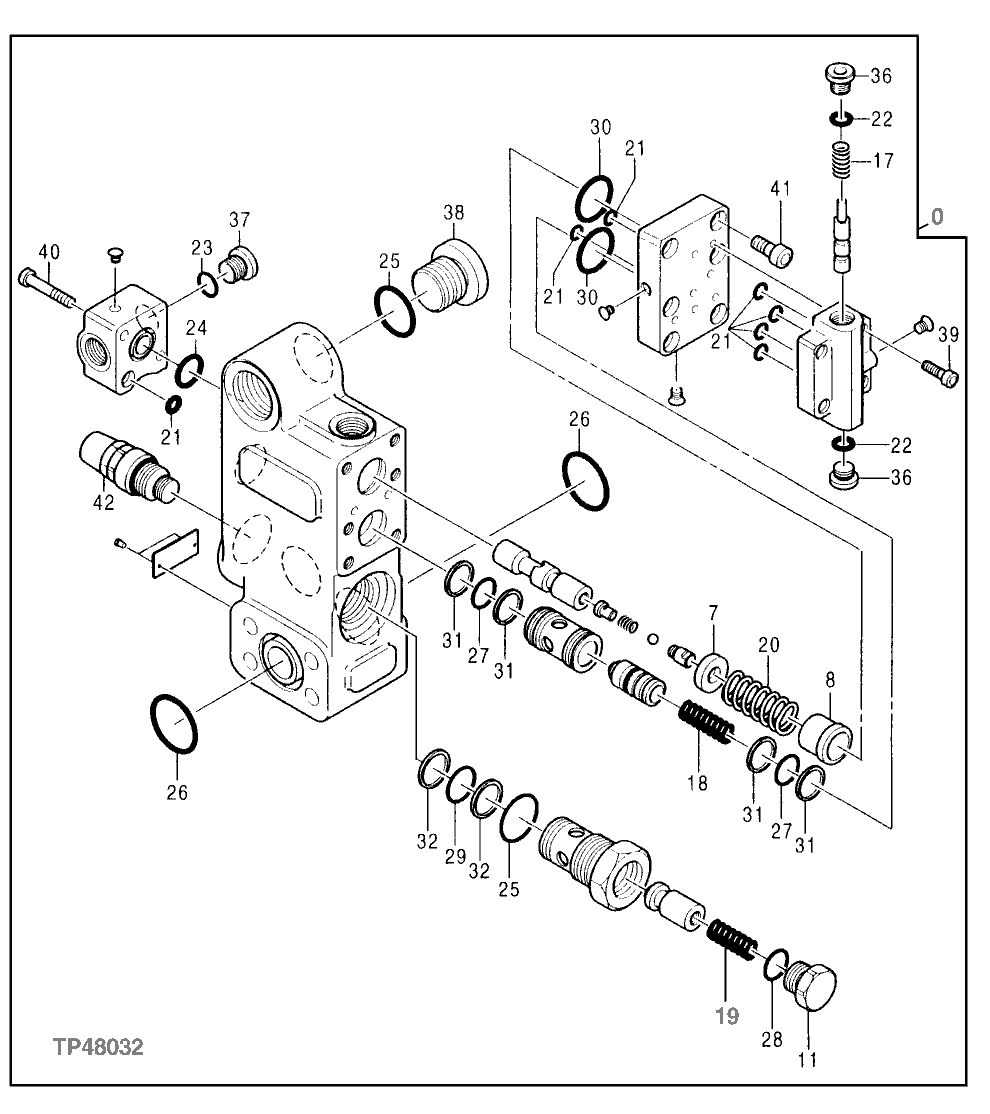

Запчасти John Deere 00LC 355 - HOLDING VALVE 3360 HYDRAULIC SYSTEM

0

4311303

Flow Control Hyd. Valve

(SUB FOR AT173709)

2шт.

7

0620301

Spring

(SUB FOR AT172358)

1шт.

8

0620302

Spacer

(SUB FOR AT172359)

1шт.

11

0620402

Plug

(SUB FOR AT172409)

1шт.

17

0620303

Spring

(SUB FOR AT172360)

1шт.

18

0620304

Spring

(SUB FOR AT172362)

1шт.

19

0498602

Spring

(SUB FOR AT172410)

1шт.

20

0620305

Spring

(SUB FOR AT172363)

1шт.

21

CH11568

Packing

7шт.

22

M800650

Packing

2шт.

23

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

24

CH12329

Packing

1шт.

25

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

26

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

27

0294414

O-Ring

21.946 X 1.778 mm (0.864" X 0.070") (SUB FOR TH105847)

2шт.

28

0215216

O-Ring

(SUB FOR TH101481)

1шт.

29

H35237

O-Ring

23.470 X 2.616 mm (0.924" X 0.103")

1шт.

30

T141687

O-Ring

28.245 X 2.616 mm (1.112" X 0.103")

2шт.

31

0620306

Back-Up Ring

(SUB FOR AT172366)

4шт.

32

0620405

Back-Up Ring

(SUB FOR AT172428)

2шт.

36

0215221

Pipe Plug

(SUB FOR TH101486)

2шт.

37

0311336

Pipe Plug

(SUB FOR TH109082)

1шт.

38

0264214

Fitting Plug

(SUB FOR TH104733)

1шт.

39

0620307

Bolt

(SUB FOR AT172367)

4шт.

40

0620308

Bolt

(SUB FOR AT172368)

2шт.

41

0627910

Bolt

(SUB FOR AT172369)

6шт.

42

4324747

Pressure Relief Valve

(SUB FOR AT172370)

1шт.
