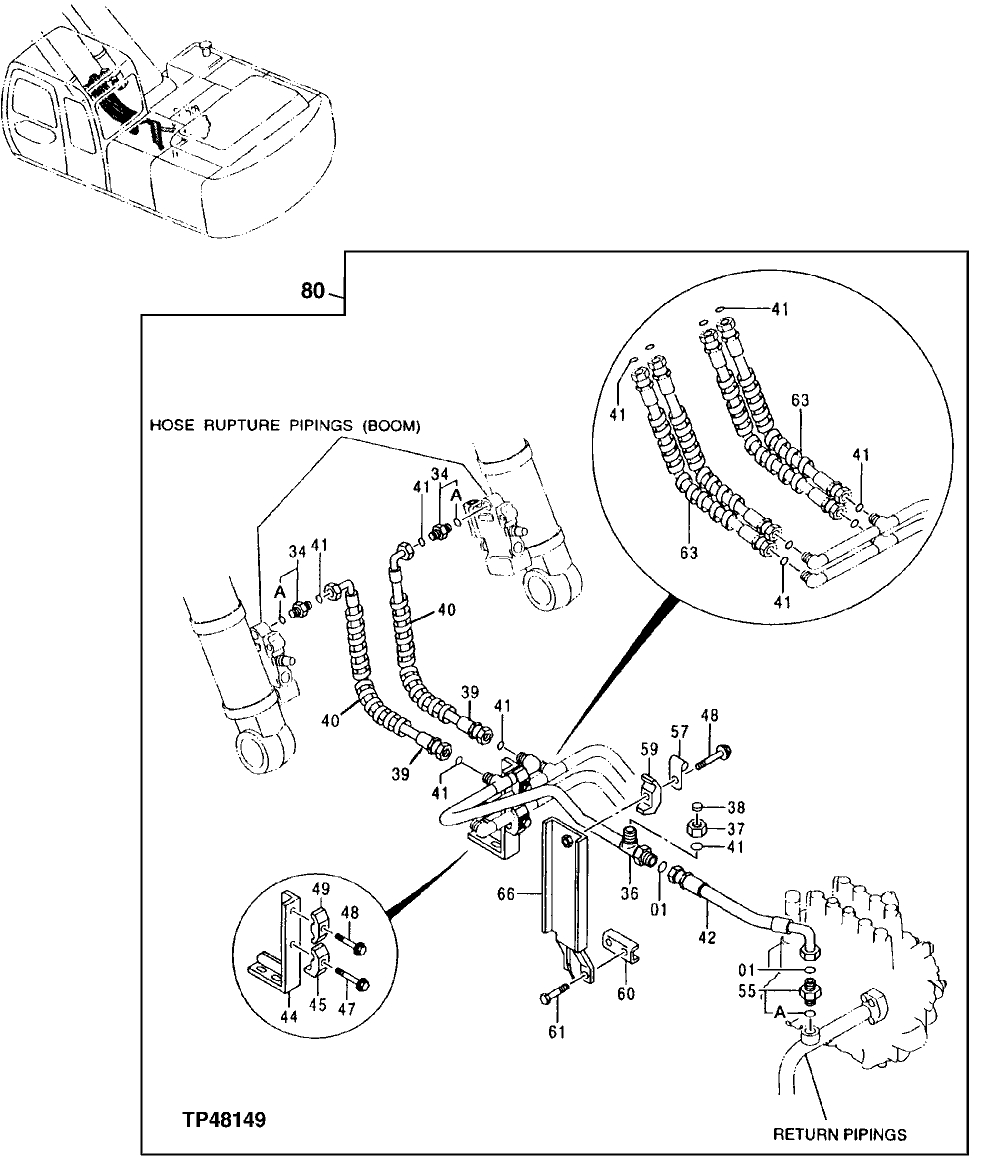

Запчасти John Deere 00LC 354 - LOAD LOWERING VALVE BOOM PIPINGS 3360 HYDRAULIC SYSTEM

1

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

34

AT318016

Adapter Fitting

SUB FOR 4189537, TH110496

2шт.

34A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

36

8065621

Oil Line

SUB FOR AT214377

1шт.

37

38H1356

Tube Nut

1шт.

38

4189094

Fitting Plug

1шт.

39

AT213837

Hydraulic Hose

2шт.

40

Hose Guard

MAKE FROM XHG-075; BULK MATERIAL, CUT TO LENGTH SUB FOR AT213832, 4327294 NLA

2шт.

41

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

13шт.

42

AT214052

Hydraulic Hose

1шт.

44

9746361

Support

SUB FOR AT214411

1шт.

45

4190126

Clamp

SUB FOR TH109830

1шт.

47

12H301

Lock Washer

1/2"

1шт.

19M8348

Cap Screw

M12 X 65

1шт.

48

12H301

Lock Washer

1/2"

2шт.

19M7753

Cap Screw

M12 X 70

2шт.

49

4189860

Clamp

SUB FOR TH108314

1шт.

55

4189601

Adapter Fitting

SUB FOR AT107394

1шт.

55A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

57

Clip

TH108598 NO LONGER REQUIRED

1шт.

59

4190127

Clamp

SUB FOR TH108313

1шт.

60

9743377

Channel

SUB FOR AT214402

1шт.

61

19M8011

Cap Screw

M12 X 30

2шт.

63

Hose Guard

MAKE FROM XHG-075; BULK MATERIAL, CUT TO LENGTH SUB FOR AT213832, 4327294 NLA

8шт.

66

8065622

Bracket

SUB FOR AT214378

1шт.

80

Kit

AT179138 NO LONGER AVAILABLE LOAD LOWERING VALVE, CONTAINS ALL ITEM S LISTED ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAG ES

1шт.
