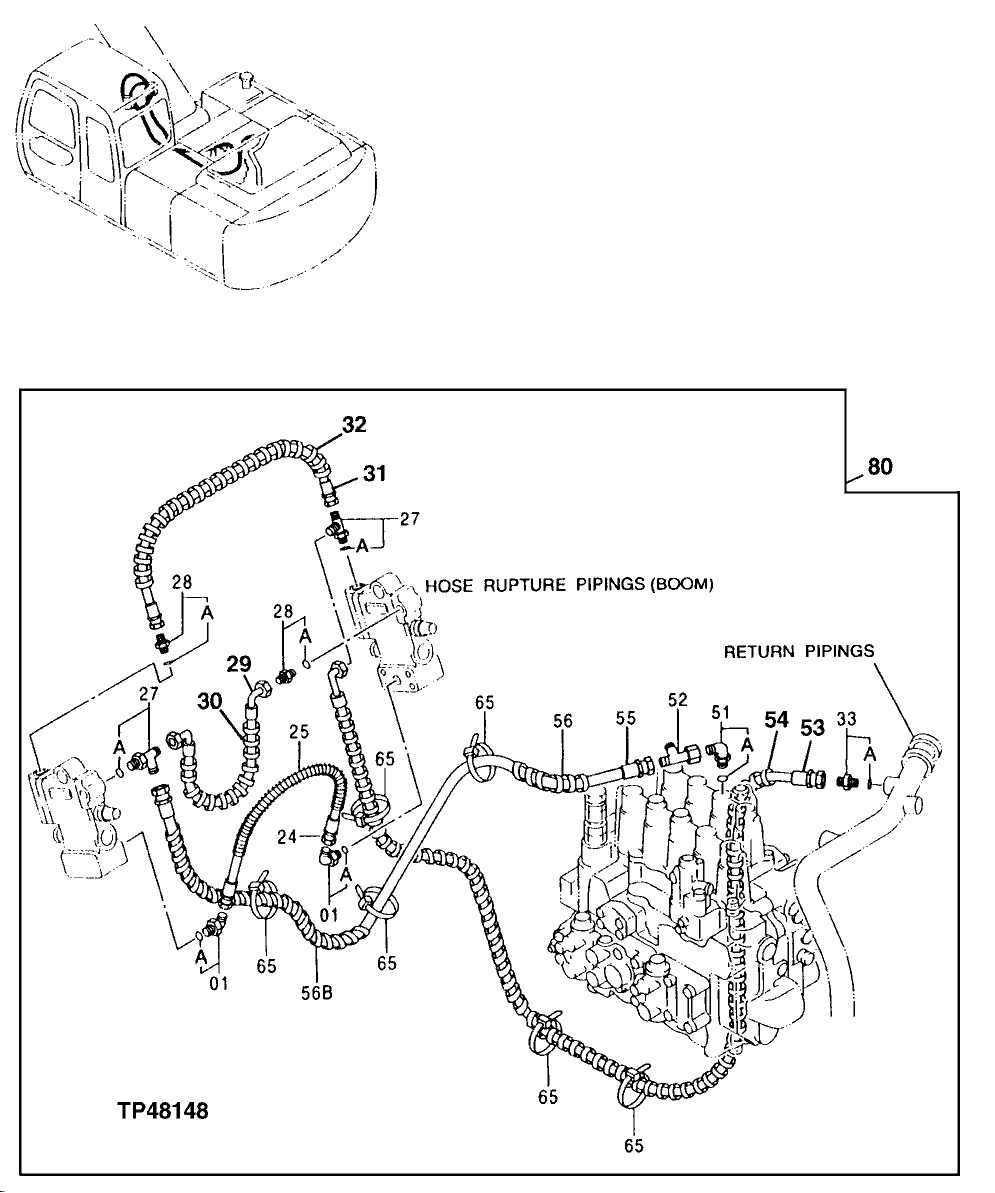

Запчасти John Deere 00LC 353 - LOAD LOWERING VALVE BOOM PIPINGS 3360 HYDRAULIC SYSTEM

1

4154670

Elbow Fitting

SUB FOR TH100951

2шт.

1A

M800650

Packing

1шт.

24

AT213808

Hydraulic Hose

1шт.

25

4298760

Hose Guard

SUB FOR AT213822

1шт.

27

4205363

Tee Fitting

SUB FOR AT126362

2шт.

27A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

28

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

28A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

29

AT213816

Hydraulic Hose

1шт.

30

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

1шт.

31

AT213824

Hydraulic Hose

1шт.

32

4327315

Hose Guard

4327293 NO LONGER AVAI LABLE SUB FOR AT213831

1шт.

33

4261938

Fitting

SUB FOR AT154285

1шт.

33A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

51

4208913

Adapter Fitting

SUB FOR AT126458

1шт.

51A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

52

4246672

Tee Fitting

SUB FOR AT200991

1шт.

53

4369444

Hydraulic Hose

SUB FOR AT214051

1шт.

54

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

4шт.

55

AT214276

Hydraulic Hose

1шт.

56

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

4шт.

65

H77698

Tie Band

6шт.

80

Kit

AT179138 NO LONGER AVAILABLE (LOAD LO WERING VALVE) (CONTAINS ALL ITEMS LISTE D ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.
