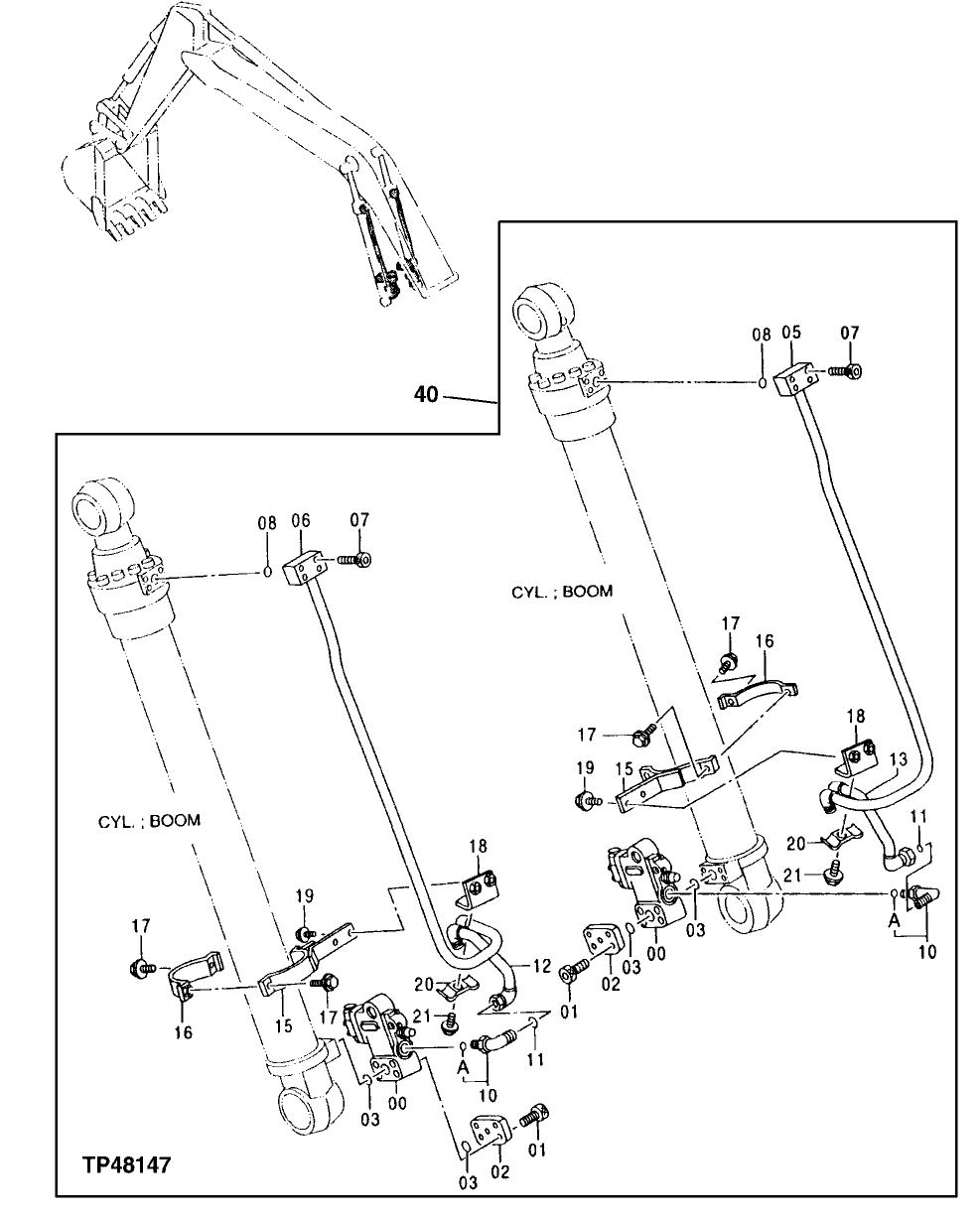

Запчасти John Deere 00LC 352 - LOAD LOWERING VALVE BOOM PIPINGS 3360 HYDRAULIC SYSTEM

0

4311303

Flow Control Hyd. Valve

(SUB FOR AT173709)

2шт.

1

19M8442

Screw

M12 X 100

8шт.

2

Flange

(USE WITH 8056111 AND 8056112 ) (SUB FOR AT173711)( 4284614 NLA)

2шт.

3086613

Flange

(USE WITH 8076980 ) (ALSO ORDER 4422953)

2шт.

3

AT264324

O-Ring

(SUB FOR TH100044)

4шт.

5

8056112

Oil Line

(USE WITH 4284614 ) (SUB FOR AT214348)

1шт.

6

8056111

Oil Line

(USE WITH 4284614 ) (SUB FOR AT214347)

1шт.

8076980

Line

(USE WITH 3086613 ) (ALSO ORDER 4422953)

1шт.

7

19M8954

Screw

M10 X 60 (USE WITH 8056111 AND 8056112)

8шт.

J781090

Bolt

(USE WITH 8076980)

8шт.

8

A811030

O-Ring

2шт.

10

A853388

Elbow Fitting

(SUB FOR TH108325 OR 4198799)

2шт.

10A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

11

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

12

8056109

Oil Line

(SUB FOR AT214346)

1шт.

13

8056108

Oil Line

(SUB FOR AT214345)

1шт.

15

8056130

Clamp

(SUB FOR AT214349)

2шт.

16

9738008

Clamp

(SUB FOR AT214397)

2шт.

17

12M7066

Lock Washer

10 mm

4шт.

19M7358

Cap Screw

M10 X 40

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

18

9740487

Angle

(SUB FOR AT214399)

2шт.

19

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

20

4312247

Clamp

(SUB FOR AT213827)

2шт.

21

12H301

Lock Washer

1/2"

2шт.

19M7363

Cap Screw

M12 X 60

2шт.

40

Kit

( AT179138 NO LONGER AVAILABLE) (L OAD LOWERING VALVE) (CONTAINS ALL IT EMS LISTED ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGE S)

1шт.

72

4422953

Pipe Plug

(NOT ILLUSTRATED)

1шт.
