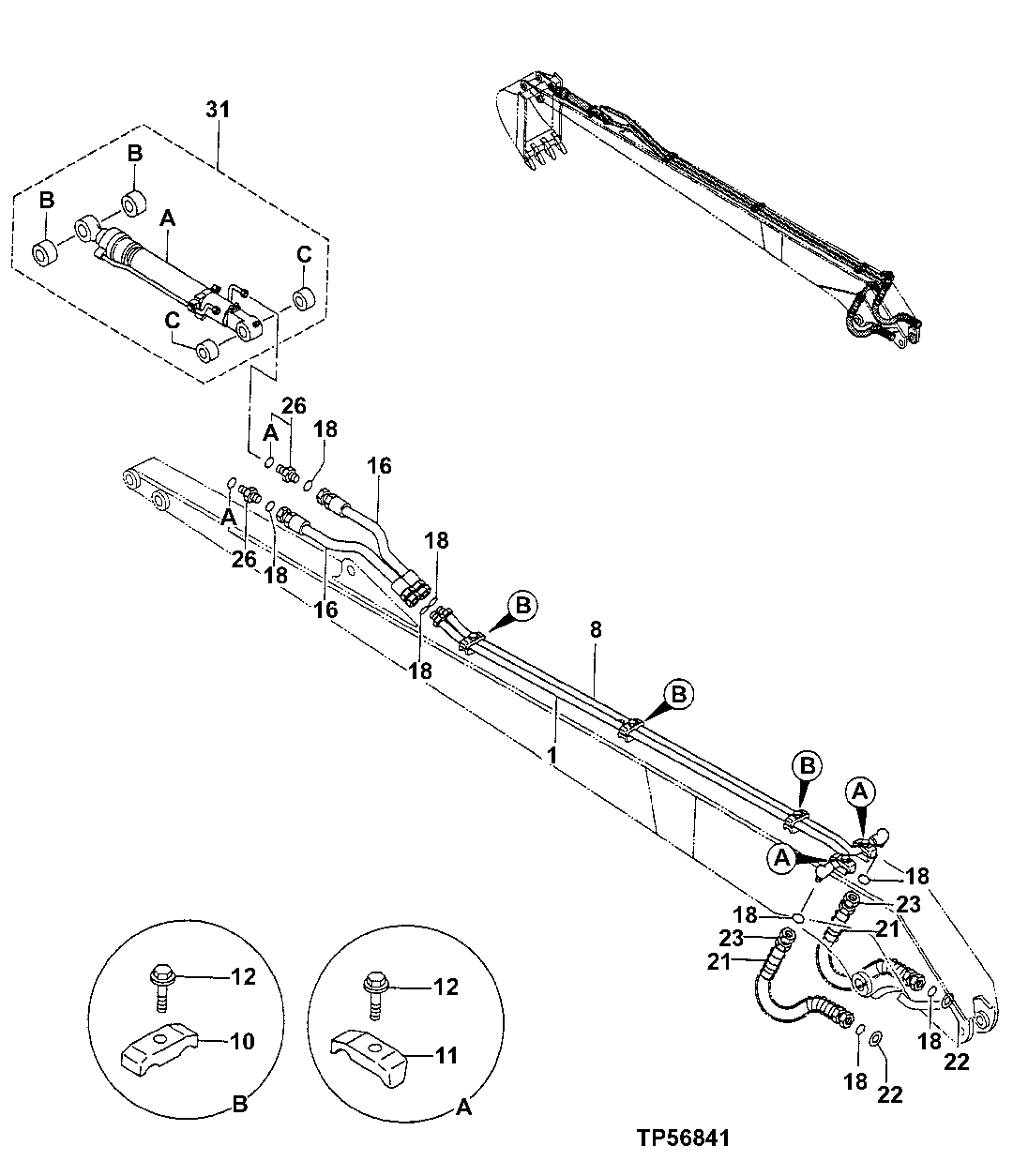

Запчасти John Deere 00LC 346 - FRONT PIPINGS, SUPER LONG ARM 3360 HYDRAULIC SYSTEM

0

4361000

Oil Line

(SUB FOR AT213994)

1шт.

1

8052579

Tube

(SUB FOR AT160886)

1шт.

8

8052580

Tube

(SUB FOR AT160887)

1шт.

10

4285723

Clamp

Rubber

3шт.

4189859

Clamp

Steel

3шт.

11

4190126

Clamp

(SUB FOR TH109830)

2шт.

12

19M7363

Cap Screw

M12 X 60 (SUB FOR AT154207)

5шт.

16

AT168311

Hydraulic Hose

2шт.

18

T77858

O-Ring

8шт.

21

4053610

Hose Guard

(SUB FOR TH104495)

2шт.

22

4203220

Washer

(SUB FOR TH109827)

2шт.

23

4286047

Hydraulic Hose

(SUB FOR AT131291)

2шт.

26

4197530

Adapter Fitting

(SUB FOR TH109595)

2шт.

26A

4506418

O-Ring

(SUB FOR U46489)

1шт.

31

9152262

Cylinder

(SUB FOR AT186499)

1шт.

31A

Cylinder

1шт.

31B

4365448

Bushing

(SUB FOR AT186480)

2шт.

31C

4365897

Bushing

(SUB FOR AT186481)

2шт.
