344 - FRONT PIPINGS, SUPER LONG BOOM

Запчасти John Deere 00LC 344 - FRONT PIPINGS, SUPER LONG BOOM 3360 HYDRAULIC SYSTEM

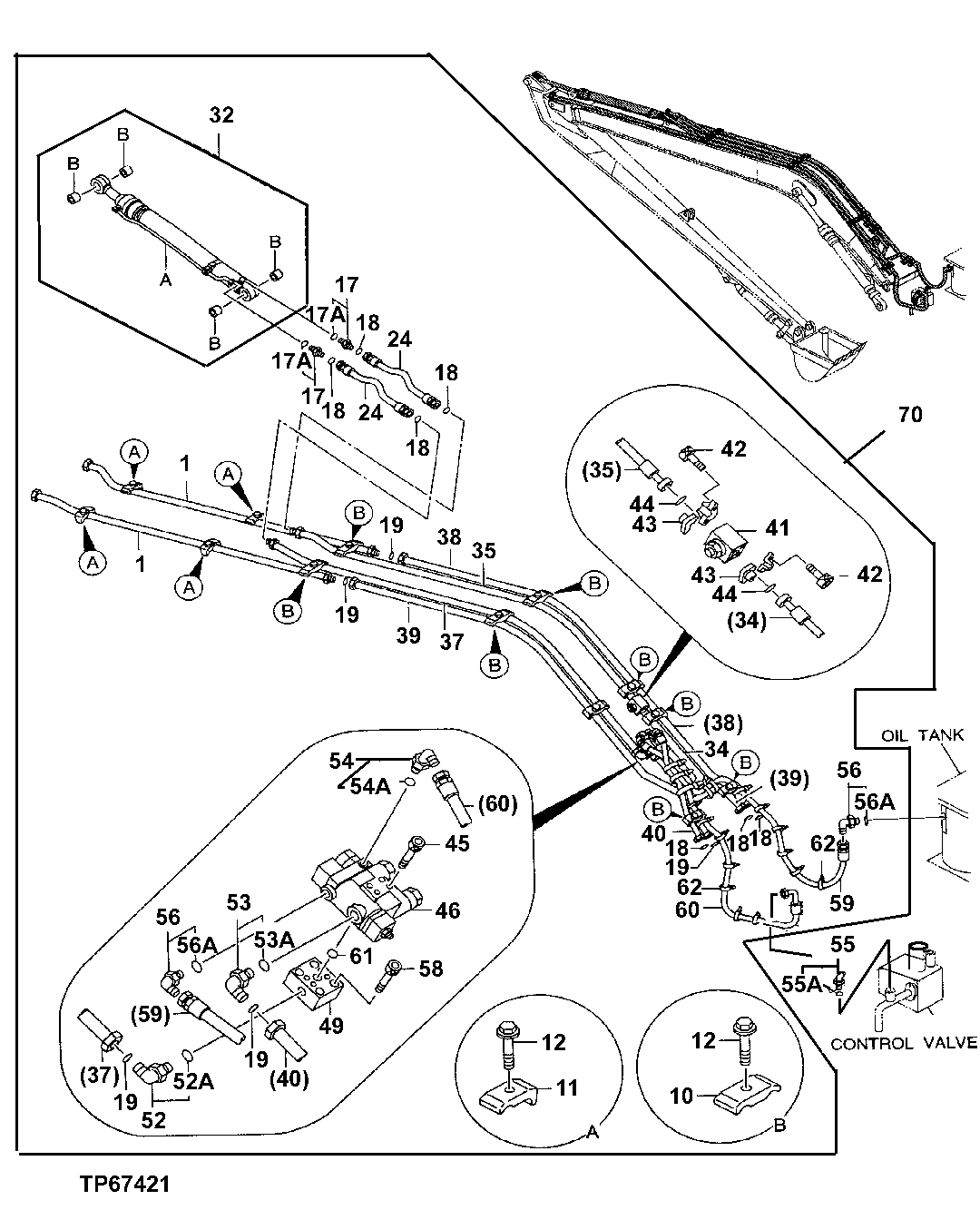

Схема запчастей John Deere 00LC - 344 - FRONT PIPINGS, SUPER LONG BOOM 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8052578

Tube

SUB FOR AT160884

2шт.

10

Clamp

4285723 NLA; ORDER 4189859 Rubber

9шт.

4189859

Clamp

Steel

9шт.

11

4190126

Clamp

SUB FOR TH109830

4шт.

12

19M7363

Cap Screw

M12 X 60 SUB FOR AT154207

13шт.

17

AT318016

Adapter Fitting

SUB FOR 4189537 OR TH110496

2шт.

17A

TH101926

O-Ring

1шт.

18

T77858

O-Ring

7шт.

19

T76938

O-Ring

5шт.

24

AT155257

Hydraulic Hose

2шт.

32

9150146

Cylinder

BOOM SUB FOR AT186500

1шт.

32A

Cylinder

1шт.

32B

4352399

Bushing

SUB FOR AT213965

4шт.

34

8066949

Line

SUB FOR AT186469

1шт.

35

8066950

Line

SUB FOR AT186470

1шт.

37

8066952

Line

SUB FOR AT186471

1шт.

38

8066953

Line

SUB FOR AT186472

1шт.

39

8066954

Line

SUB FOR AT186473

1шт.

40

8067195

Line

SUB FOR AT186474

1шт.

41

4372037

Flow Control Hyd. Valve

SUB FOR AT186475

1шт.

42

19M7576

Screw

M10 X 30 SUB FOR AT213614 OR J781030

8шт.

43

R29424

Flange Fitting

SUB FOR TH108300

4шт.

44

T59014

O-Ring

2шт.

45

19M8547

Screw

M12 X 90 SUB FOR AT127258 OR M341290

4шт.

46

9153984

Flow Control Hyd. Valve

SUB FOR AT186719

1шт.

49

4374604

Housing

SUB FOR AT186476

1шт.

52

4205391

Elbow Fitting

SUB FOR AT127606

1шт.

52A

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

53

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

1шт.

53A

TH101926

O-Ring

1шт.

54

4154672

Elbow Fitting

SUB FOR TH101008

1шт.

54A

4506418

O-Ring

SUB FOR U46489

1шт.

55

4353073

Elbow Fitting

SUB FOR AT186478

1шт.

55A

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

56

4154671

Elbow Fitting

SUB FOR TH101047

2шт.

56A

CH11570

O-Ring

1шт.

58

J781270

Bolt

SUB FOR AT186477

4шт.

59

4342976

Hydraulic Hose

SUB FOR AT219678

1шт.

60

4375256

Hydraulic Hose

SUB FOR AT186482

1шт.

61

AT264324

O-Ring

SUB FOR TH100044

1шт.

62

4373212

Clip

SUB FOR AT186479

20шт.

70

Kit

WHOLEGOODS ( AT186457 NO LONGER AVAILAB LE) (LONG FRONT ASSEMBLY KIT) (ALSO ORDE R T190565 T153672, AND T153673 DECALS) (CONTAINS ALL ITEMS ON THIS PAGE - ADDIT IONAL COMPONENTS LISTED ON SEPARATE PAGE S)

1шт.
