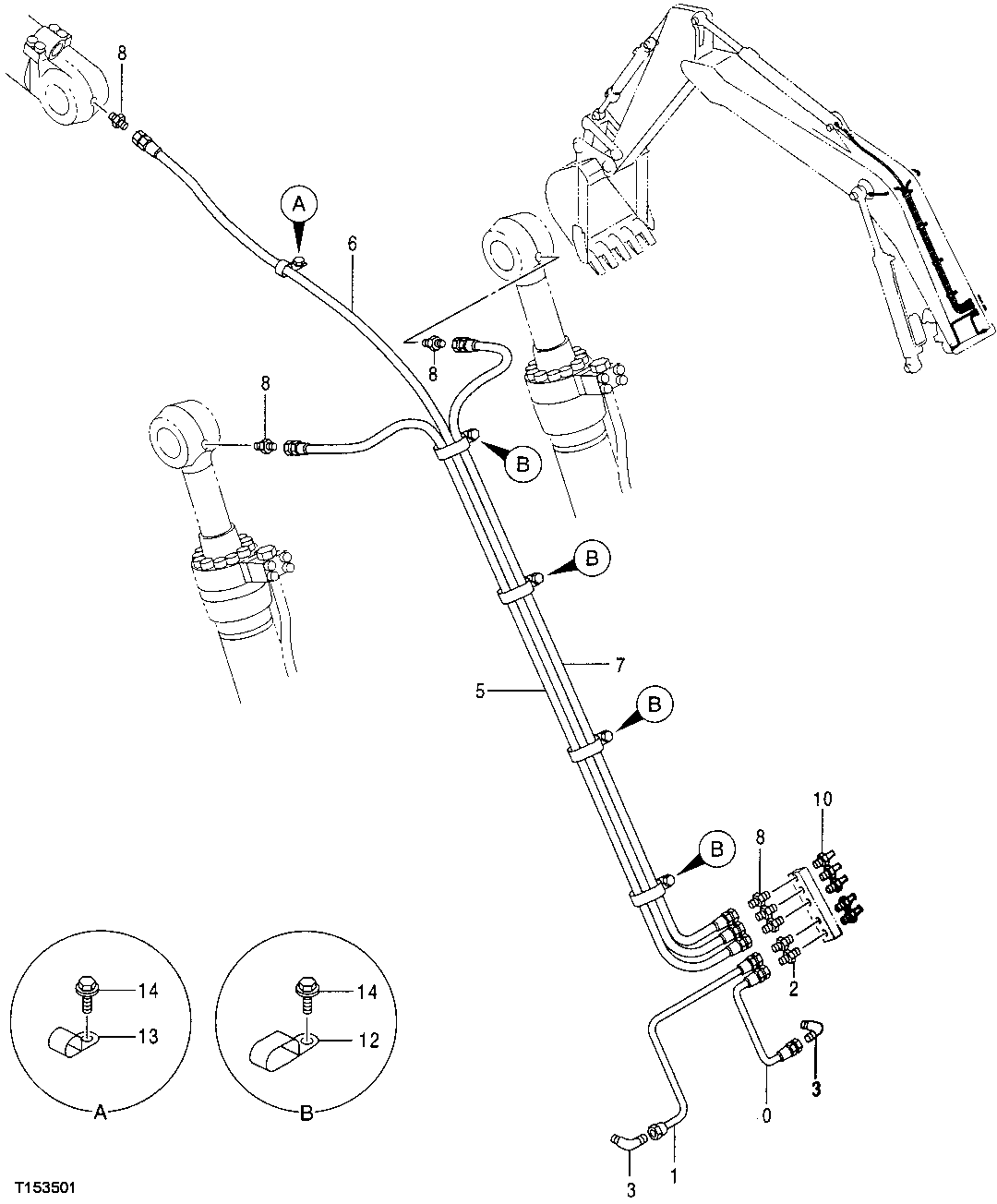

Запчасти John Deere 00LC 343 - LUBRICATE PIPINGS 3360 HYDRAULIC SYSTEM

0

4361000

Oil Line

(SUB FOR AT213994)

1шт.

1

4360997

Oil Line

(SUB FOR AT213993)

1шт.

2

4360981

Adapter Fitting

(SUB FOR AT176256)

2шт.

3

4345297

Elbow Fitting

(SUB FOR AT176258)

2шт.

5

AT160892

Hydraulic Hose

1шт.

6

AT213802

Hydraulic Hose

1шт.

7

AT160890

Hydraulic Hose

1шт.

8

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 ) (SUB FOR TH100963)

6шт.

10

JD7769

Lubrication Fitting

5шт.

12

T152608

Clamp

(SUB FOR AT154207)

4шт.

13

4190261

Clip

(SUB FOR TH109649)

1шт.

14

19M8324

Cap Screw

M10 X 16

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.
