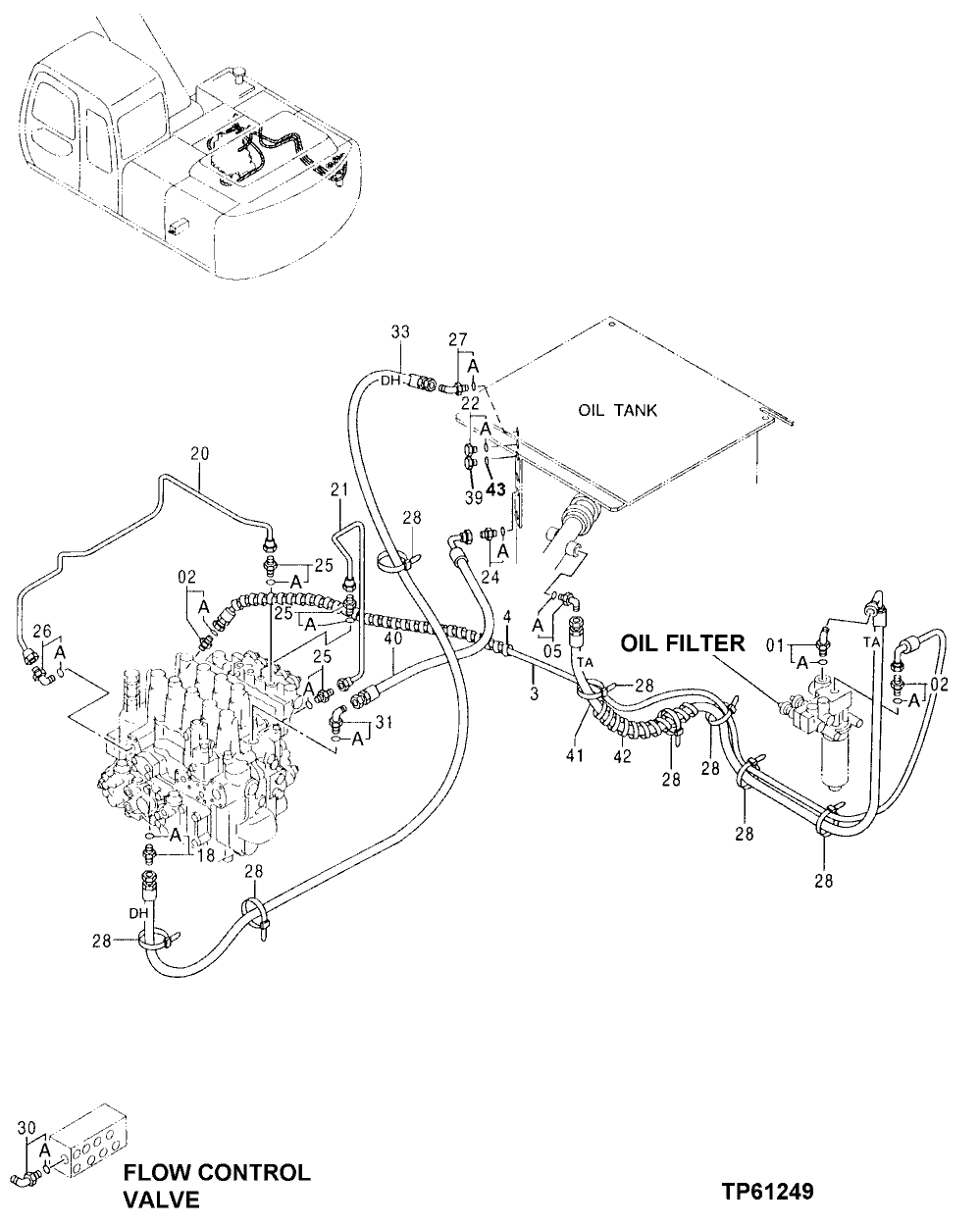

Запчасти John Deere 00LC 337 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4154672

Elbow Fitting

SUB FOR TH101008

1шт.

1A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

2

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

2A

M800650

Packing

1шт.

3

AT214317

Hydraulic Hose

1шт.

4

4327315

Hose Guard

4327293 NLA SUB FOR AT213831

1шт.

5

4219345

Elbow Fitting

SUB FOR AT130819

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

18

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

3071730

Oil Line

SUB FOR AT213777

1шт.

21

3068867

Oil Line

SUB FOR AT213753

1шт.

22

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

1шт.

22A

M800650

Packing

1шт.

24

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

24A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

25

4255304

Fitting

SUB FOR AT155270

3шт.

25A

M800650

Packing

1шт.

26

4293950

Fitting

SUB FOR AT160584

1шт.

26A

M800650

Packing

1шт.

27

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

1шт.

27A

M800650

Packing

1шт.

28

H77698

Tie Band

8шт.

30

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

1шт.

30A

M800650

Packing

1шт.

31

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

1шт.

31A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

33

AT213933

Hydraulic Hose

1шт.

39

15M7036

Drain Plug

SUB FOR 4092534, 4216753, TH1092 85 OR 0309805; ALSO ORDER CH11570

1шт.

40

AT213910

Hydraulic Hose

1шт.

41

4349797

Hydraulic Hose

SUB FOR AT213932

1шт.

42

Hose Guard

MF XHG-075 CTL SUB FOR AT213832; 4327294 NLA

2шт.

43

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
