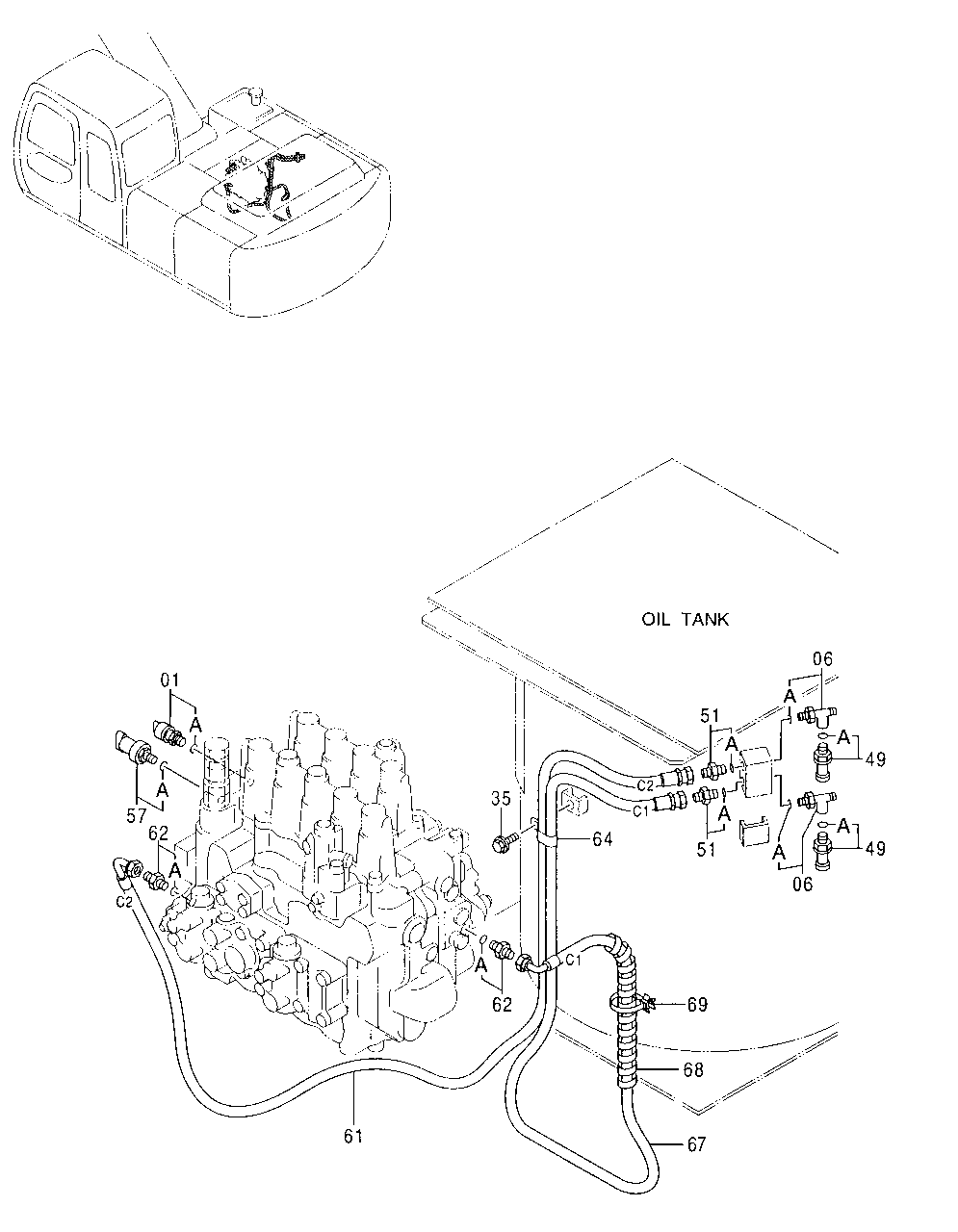

Запчасти John Deere 00LC 331 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4380677

Switch

SUB FOR AT213897, SUB FOR AT2 15109 (PROPEL PRESSURE SWITCH)

1шт.

1A

M800650

Packing

1шт.

6

AT318023

Tee Fitting

SUB FOR 4364784, AT214020

2шт.

6A

M800650

Packing

1шт.

35

12M7066

Lock Washer

10 mm

1шт.

19M7938

Cap Screw

M10 X 20

1шт.

49

4332040

Sensor

SUB FOR AT213840 (ARM IN PRES SURE) (PUMP CONTROL PRESSURE)

2шт.

49A

M800650

Packing

1шт.

51

AT318019

Adapter Fitting

SUB FOR 4255792, AT213811

2шт.

51A

M800650

Packing

1шт.

57

4353686

Switch

SUB FOR AT213971 (DIG PRESSURE SWITCH)

1шт.

57A

M800650

Packing

1шт.

61

AT213996

Hydraulic Hose

1шт.

62

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

62A

M800650

Packing

1шт.

64

4192018

Clip

SUB FOR TH110498

1шт.

67

AT213995

Hydraulic Hose

1шт.

68

4327315

Hose Guard

4327293 NO LONGER AVAI LABLE SUB FOR AT213831

1шт.

69

4254600

Clip

SUB FOR AT154928

1шт.
