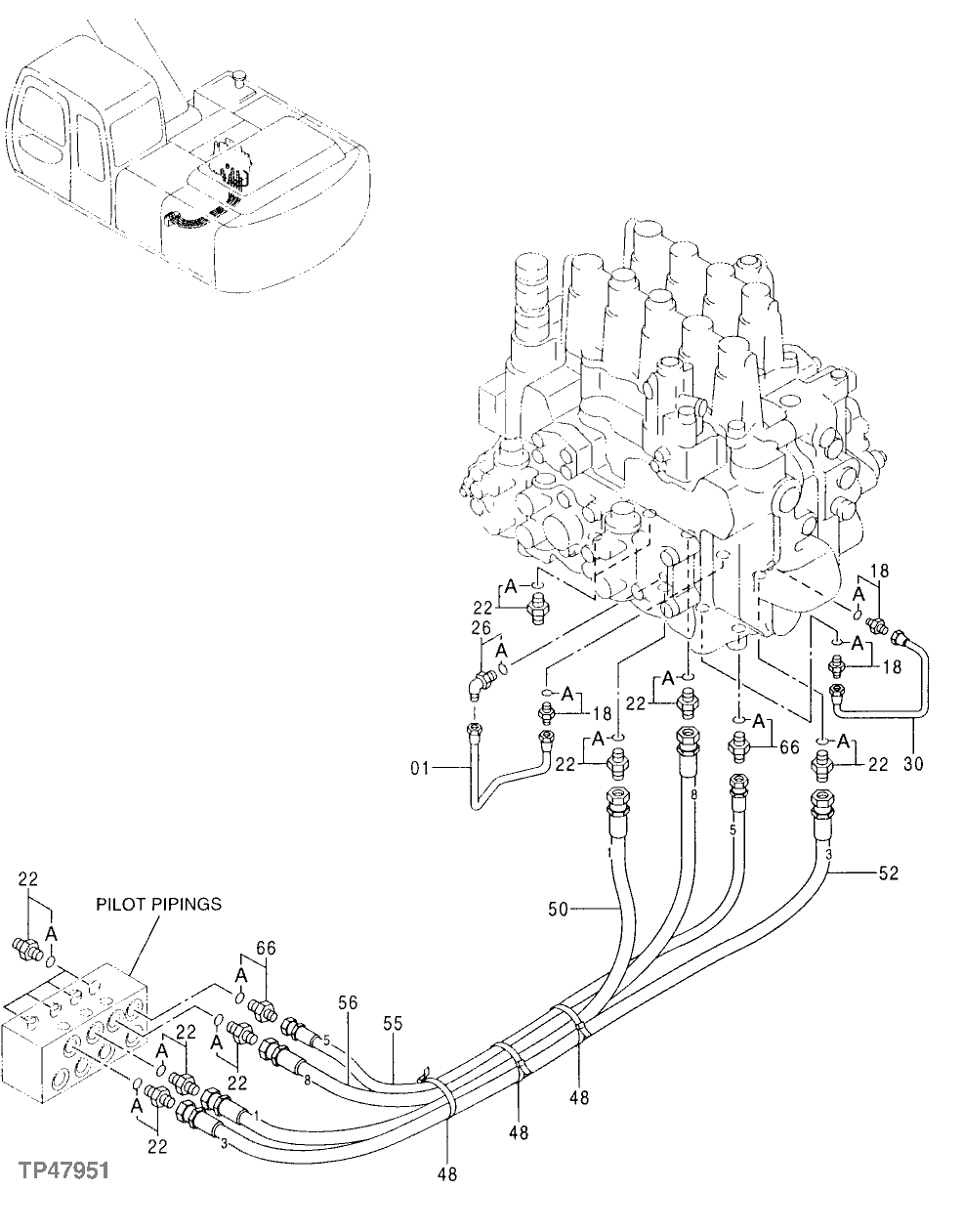

Запчасти John Deere 00LC 330 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4333876

Oil Line

(SUB FOR AT213853)

1шт.

18

4255305

Fitting

(SUB FOR AT213809)

3шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

22

4200466

Adapter Fitting

(SUB FOR TH108320)

12шт.

22A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

AT318022

Elbow Fitting

(SUB FOR 4349712, AT213925)

1шт.

26A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

30

4351261

Oil Line

(SUB FOR AT213959)

1шт.

48

H77698

Tie Band

3шт.

50

AT213926

Hydraulic Hose

1шт.

52

AT213927

Hydraulic Hose

1шт.

55

AT214014

Hydraulic Hose

1шт.

56

AT213928

Hydraulic Hose

1шт.

66

4200468

Adapter Fitting

(SUB FOR AT126336)

2шт.

66A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
