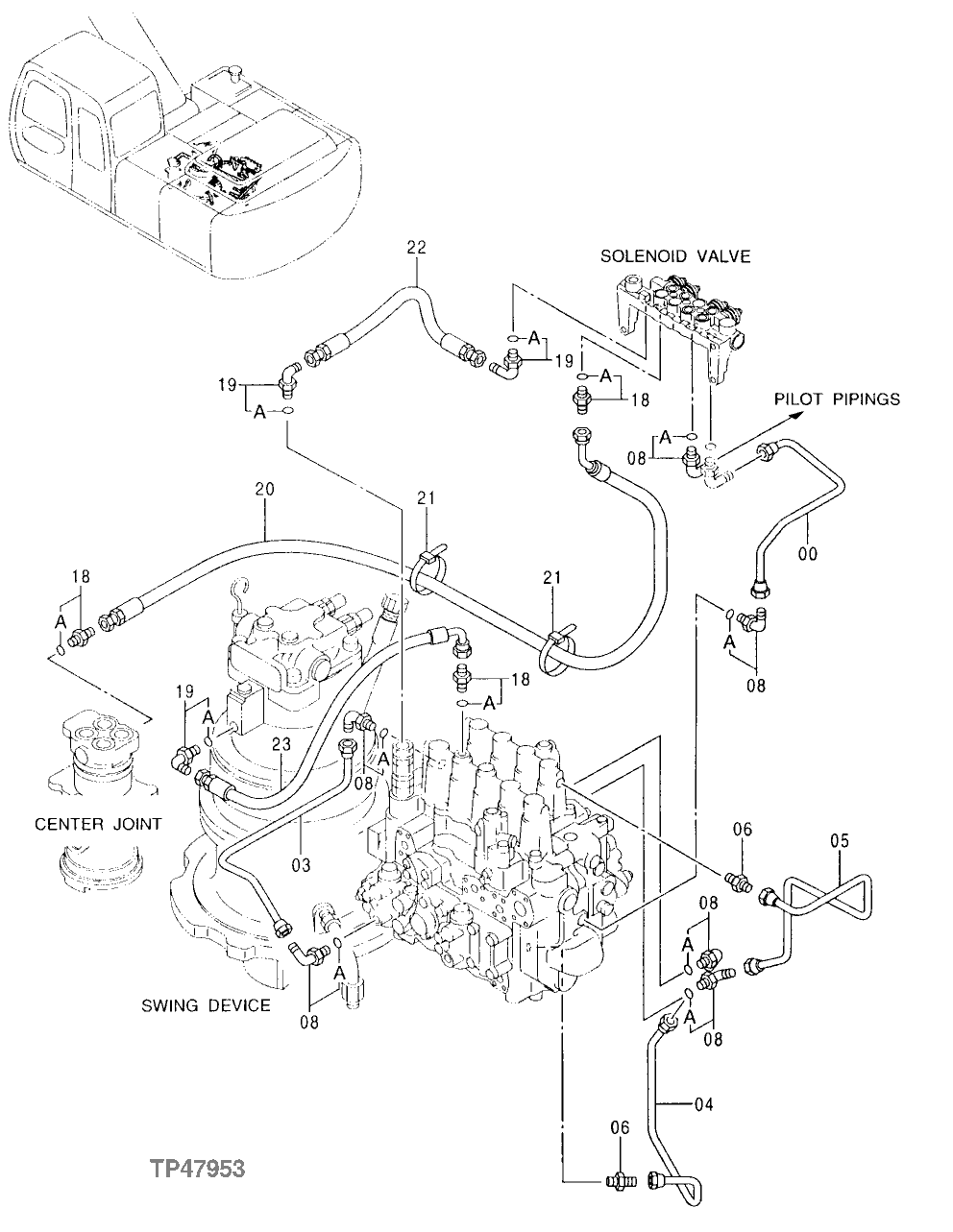

Запчасти John Deere 00LC 328 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4333884

Oil Line

(SUB FOR AT213855)

1шт.

3

4333886

Oil Line

(SUB FOR AT213856)

1шт.

4

4333887

Oil Line

(SUB FOR AT213857)(BOOM UP PILOT CAP TO BUCKET FLOW CONTROL VALVE)

1шт.

5

3068872

Oil Line

(SUB FOR AT213756)

1шт.

6

4255305

Fitting

(SUB FOR AT213809)

2шт.

8

4293950

Fitting

(SUB FOR AT160584)

7шт.

8A

M800650

Packing

1шт.

18

4200465

Adapter Fitting

(SUB FOR TH108328)

3шт.

18A

M800650

Packing

1шт.

19

4154670

Elbow Fitting

(SUB FOR TH100951)

3шт.

19A

M800650

Packing

1шт.

20

AT213909

Hydraulic Hose

1шт.

21

H77698

Tie Band

2шт.

22

AT213845

Hydraulic Hose

1шт.

23

AT213844

Hydraulic Hose

1шт.
