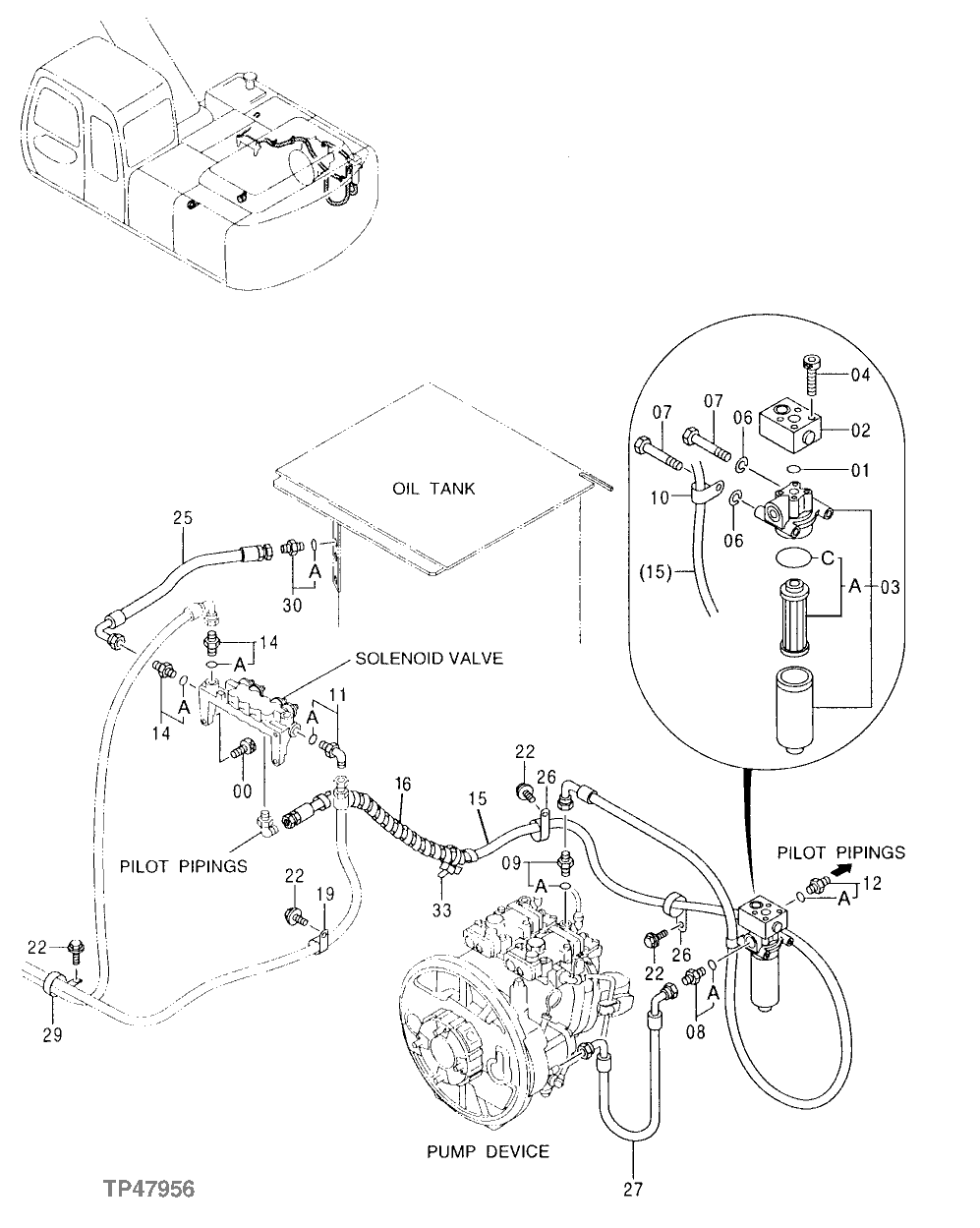

Запчасти John Deere 00LC 325 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

19M7576

Screw

M10 X 30 SUB FOR AT213614 OR J781030

2шт.

1

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") SUB FOR TH102561

1шт.

2

4351142

Pressure Relief Valve

SUB FOR AT213955

1шт.

3

4330227

Filter Head

SUB FOR AT213834

1шт.

3A

AT186554

Filter Element

SUB FOR AT214263

1шт.

3C

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

4

AT213613

Screw

4шт.

6

12M7066

Lock Washer

10 mm

2шт.

7

19M8343

Cap Screw

M10 X 120

2шт.

8

4197530

Adapter Fitting

SUB FOR TH110204

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

9

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

9A

M800650

Packing

1шт.

10

4190261

Clip

SUB FOR TH109649

1шт.

11

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

4200469

Adapter Fitting

SUB FOR TH108400

1шт.

12A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

14

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

AT214279

Hydraulic Hose

1шт.

16

4327315

Hose Guard

4327293 NO LONGER AVAI LABLE SUB FOR AT213831

1шт.

19

4190275

Clamp

SUB FOR TH108598

1шт.

22

12M7066

Lock Washer

10 mm

4шт.

19M7938

Cap Screw

M10 X 20

4шт.

25

AT213864

Hydraulic Hose

1шт.

26

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

2шт.

27

AT213961

Hydraulic Hose

1шт.

29

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

1шт.

30

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

30A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

33

4254600

Clip

SUB FOR AT154928

1шт.
