Запчасти John Deere 00LC 322 - CONTROL VALVE 3360 HYDRAULIC SYSTEM

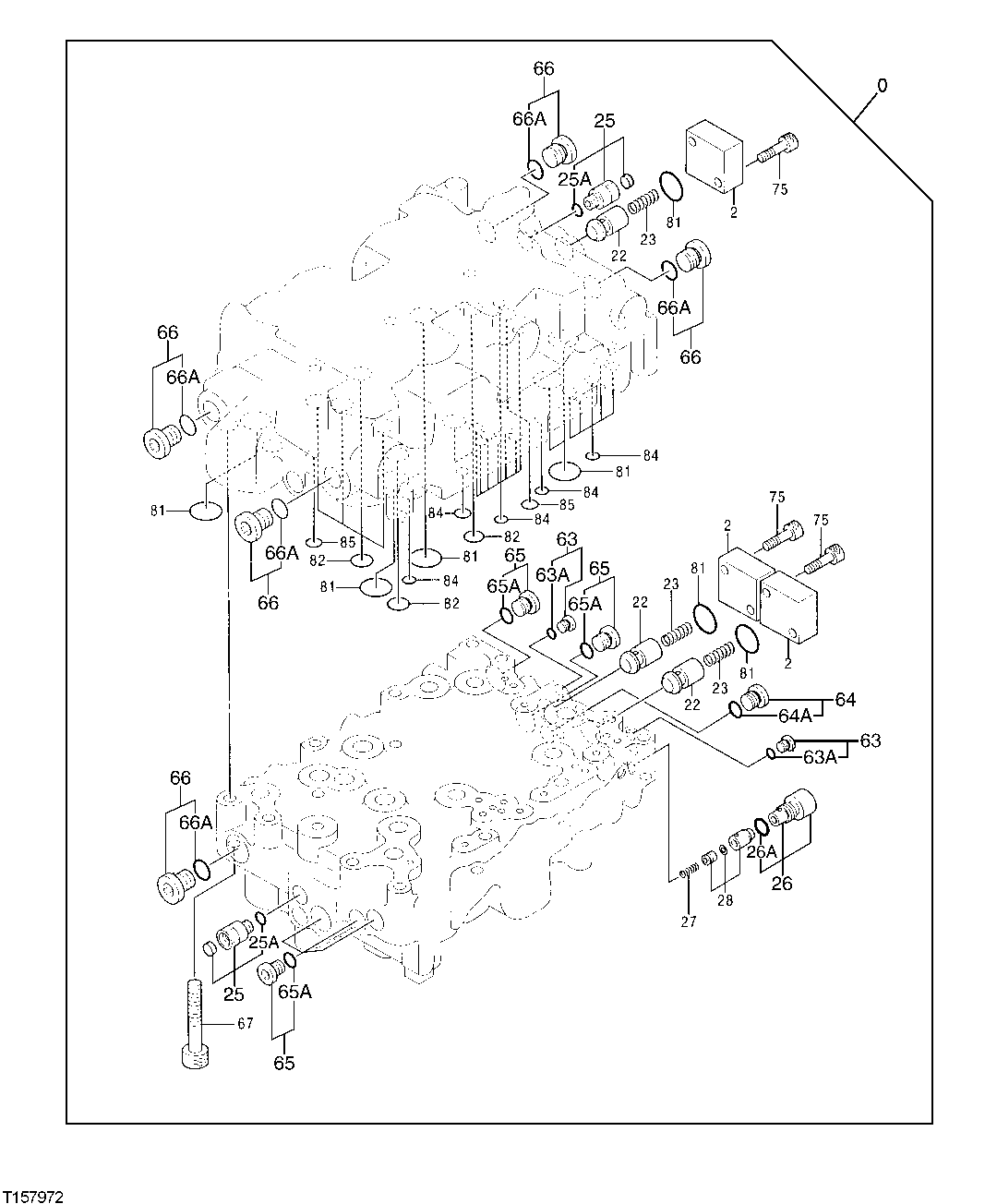

Схема запчастей John Deere 00LC - 322 - CONTROL VALVE 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4366959

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONA L COMPONENTS LISTED ON PREVIOUS PAGES) (SUB F OR AT214031 ) (SUB FOR AT183686 AND 4366959EX )

1шт.

2

0668110

Cover

(SUB FOR AT213699)

3шт.

22

0668111

Poppet

(SUB FOR AT213700)

3шт.

23

0668112

Spring

(SUB FOR AT213701)

3шт.

25

0668113

Fitting Plug

(SUB FOR AT213702)

2шт.

25A

M800650

Packing

(SUB FOR 957366)

1шт.

26

0668114

Fitting Plug

(SUB FOR AT213703)

1шт.

26A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32") (SUB FOR 4509180)

1шт.

27

0668106

Spring

(SUB FOR AT213697)

1шт.

28

0668115

Poppet

(SUB FOR AT213704)

1шт.

63

0667713

Fitting Plug

(SUB FOR AT213660)

2шт.

63A

4506408

O-Ring

(SUB FOR TH101490)

1шт.

64

0667817

Fitting Plug

(SUB FOR AT213675)

1шт.

64A

M800650

Packing

(SUB FOR 957366)

1шт.

65

0667930

Fitting Plug

(SUB FOR AT213690)

5шт.

65A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32") (SUB FOR 4509180)

1шт.

66

0668108

Fitting Plug

(SUB FOR AT213698)

5шт.

66A

4506418

O-Ring

(SUB FOR U46489)

1шт.

67

0343212

Screw

(SUB FOR AT213627)

12шт.

75

0413619

Bolt

(SUB FOR AT154591)

6шт.

81

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

8шт.

82

CH12329

Packing

7шт.

84

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

16шт.

85

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

Выбрано товаров: 24
