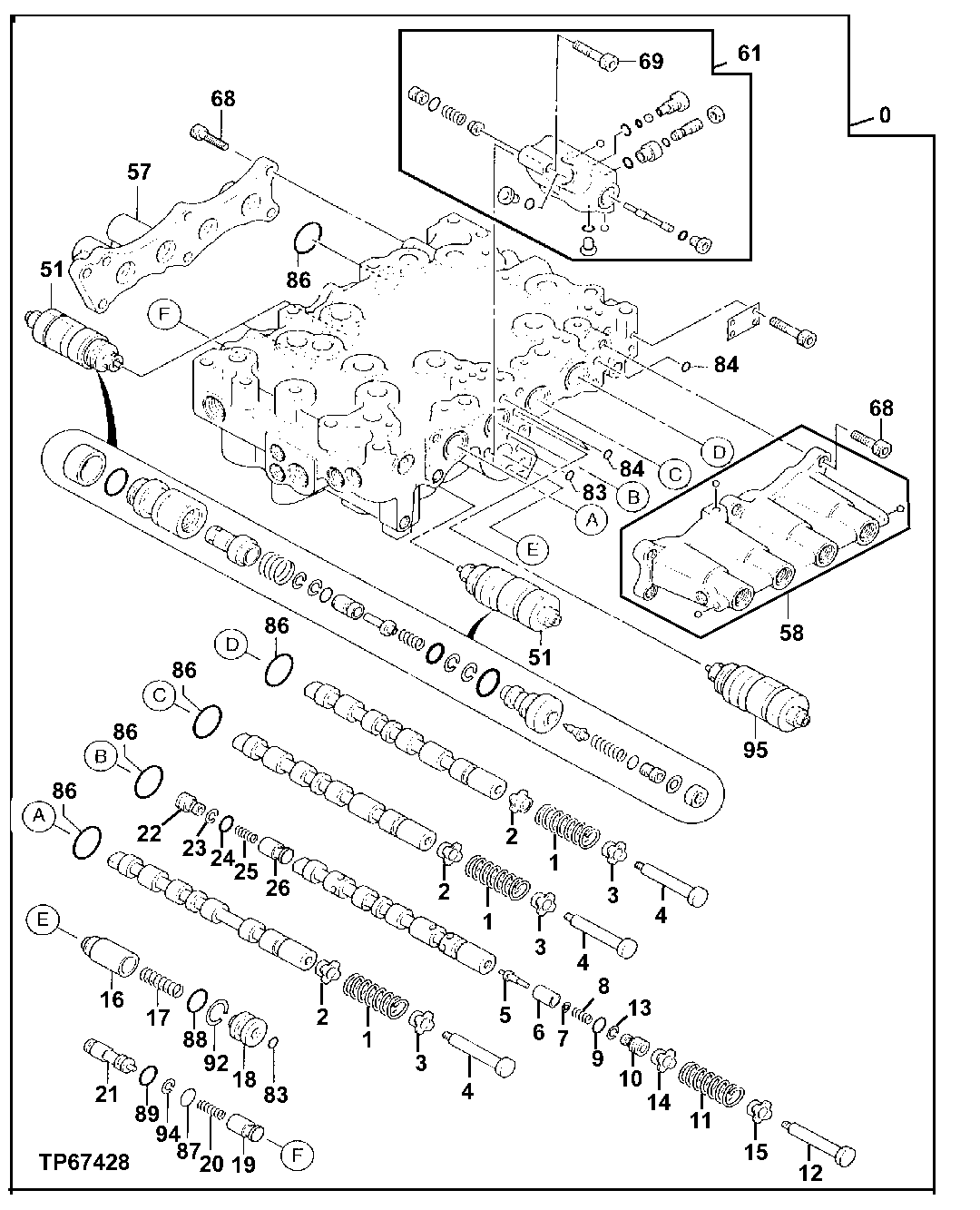

Запчасти John Deere 00LC 321 - CONTROL VALVE 3360 HYDRAULIC SYSTEM

0

4366959

Hyd Actuated Control Valve

SUB FOR AT214031 SUB FOR AT183686 AND 436695 9EX Additional Components On Separate Pages

1шт.

1

0667932

Spring

SUB FOR AT190540

1шт.

2

0306003

Plate

SUB FOR TH109968

1шт.

3

0306003

Plate

SUB FOR TH109968

1шт.

4

0413801

End

SUB FOR AT154605

1шт.

5

0668011

Poppet

SUB FOR AT192138 Use On Or Before Control Valve Serial Number 9603169

1шт.

0685403

Poppet

SUB FOR AT192145 Use On Or After C ontrol Valve Serial Number 9603170

1шт.

6

0668012

Sleeve

SUB FOR AT192139 Use On Or Before Control Valve Serial Number 9603169

1шт.

0685404

Sleeve

SUB FOR AT192146 Use On Or After C ontrol Valve Serial Number 9603170

1шт.

7

0668013

Washer

SUB FOR AT192140 Use On Or Before Control Valve Serial Number 9603169

1шт.

0685405

Washer

SUB FOR AT192147 Use On Or After C ontrol Valve Serial Number 9603170

1шт.

8

0668014

Spring

SUB FOR AT192141 Use On Or Before Control Valve Serial Number 9603169

1шт.

0685406

Spring

SUB FOR AT192148 Use On Or After C ontrol Valve Serial Number 9603170

1шт.

9

4317636

O-Ring

SUB FOR AT192143, 0668015

1шт.

10

0668016

Plug

SUB FOR AT192144

1шт.

11

0667932

Spring

SUB FOR AT190540

1шт.

12

0413801

End

SUB FOR AT154605

1шт.

13

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0. 551" X 0.049") SUB FOR TH110325

1шт.

14

0306003

Plate

SUB FOR TH109968

1шт.

15

0306003

Plate

SUB FOR TH109968

1шт.

16

0667912

Poppet

SUB FOR AT213676

1шт.

17

0667913

Spring

SUB FOR AT213677

1шт.

18

0667916

Spacer

SUB FOR AT213678

1шт.

19

0668006

Poppet

SUB FOR AT213692

1шт.

20

0668007

Spring

SUB FOR AT213693

1шт.

21

0668008

Spacer

SUB FOR AT213694

1шт.

22

0668016

Plug

SUB FOR AT192144

1шт.

23

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0. 551" X 0.049") SUB FOR TH110325

1шт.

24

4317636

O-Ring

SUB FOR AT192143, 0668015

1шт.

25

0668007

Spring

SUB FOR AT213693

1шт.

26

0668006

Poppet

SUB FOR AT213692

1шт.

51

4372039

Pressure Relief Valve

SUB FOR AT214285 ARM IN, BOO M UP AND DOWN AND BUCKET CURL

3шт.

57

0668009

Cap

SUB FOR AT213695

1шт.

58

0668010

Cap

SUB FOR AT213696

1шт.

61

4372035

Housing

SUB FOR AT214283

1шт.

68

0353228

Bolt

SUB FOR AT132356

14шт.

69

0667714

Screw

SUB FOR AT213661

2шт.

83

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") SUB FOR TH104587

4шт.

84

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

3шт.

86

CH14701

O-Ring

39.400 X 3.100 mm (1.551" X 0.122")

8шт.

87

CH10571

Packing

1шт.

88

953610

O-Ring

21.700 X 3.500 mm (0.854" X 0.138") SUB FOR AT154871

1шт.

89

CH10568

Packing

1шт.

92

4028266

Back-Up Ring

22 X 28 X 1.250 mm (0.866" X 1. 102" X 0.049") SUB FOR AT132396

1шт.

94

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0. 551" X 0.049") SUB FOR TH110325

1шт.

95

4358914

Pressure Relief Valve

SUB FOR AT213982 Arm Out Bucket Dump

1шт.
