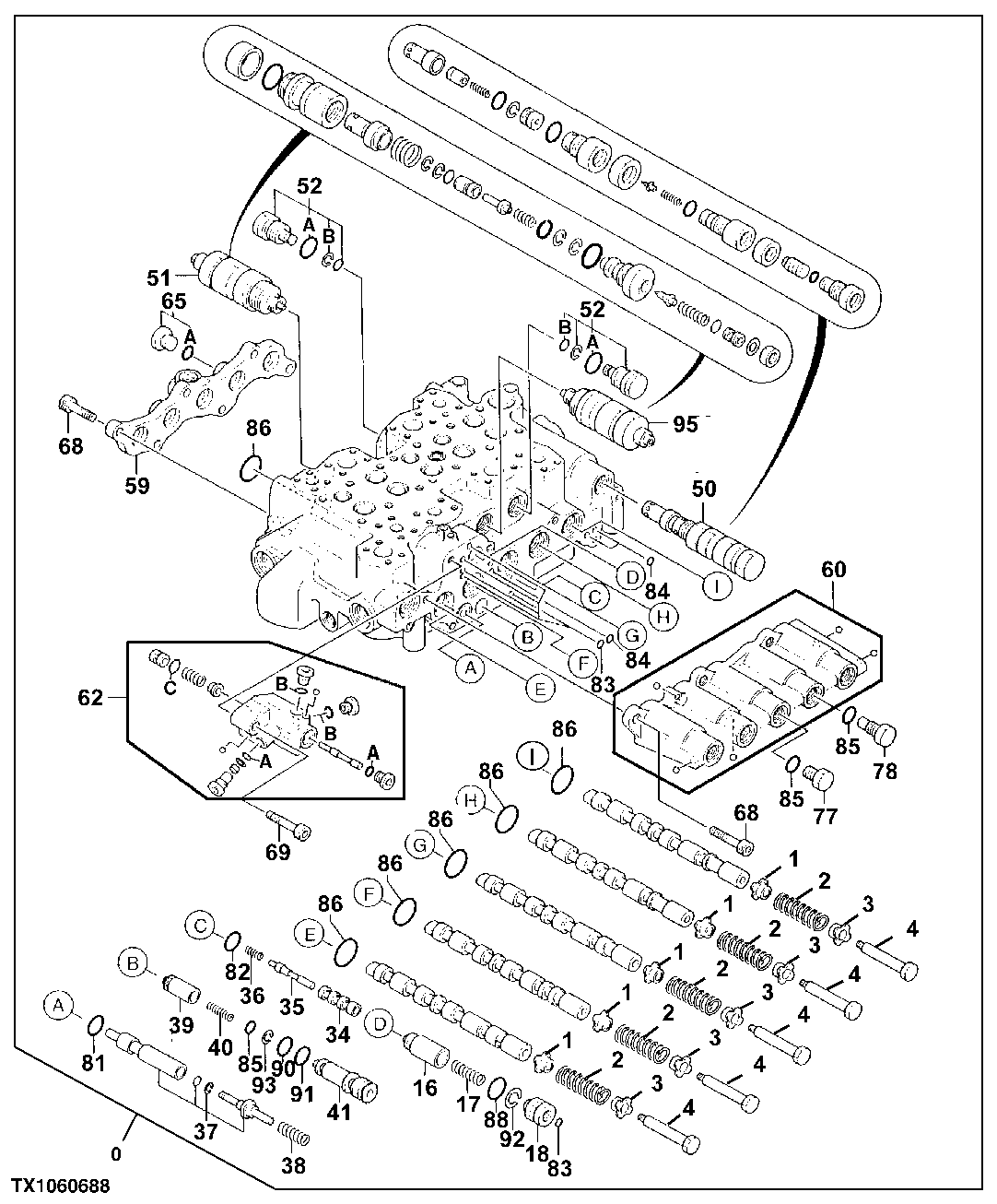

Запчасти John Deere 00LC 320 - CONTROL VALVE 3360 HYDRAULIC SYSTEM

0

4366959

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE - A DDITIONAL COMPONENTS LISTED ON PREVIO US AND FOLLOWING PAGES) (SUB FOR AT21 4031 ) (SUB FOR AT183686 AND 4366959E X)

1шт.

1

9728049

Support

(SUB FOR TH109668)

1шт.

2

0667932

Spring

(SUB FOR AT190540)

1шт.

3

0306003

Plate

(SUB FOR TH109968)

1шт.

4

0413801

End

(SUB FOR AT154605)

1шт.

16

0667912

Poppet

(SUB FOR AT213676)

1шт.

17

0667913

Spring

(SUB FOR AT213677)

1шт.

18

0667916

Spacer

(SUB FOR AT213678)

1шт.

34

4384540

Sleeve

(SUB FOR AT213679 ) (SUB FOR AT217992)

1шт.

35

4384540

Sleeve

(SUB FOR AT213680 ) (SUB FOR AT217992)

1шт.

36

0667921

Spring

(SUB FOR AT213681)

1шт.

37

0667922

Valve Spool

(SUB FOR AT213682)

1шт.

38

0667923

Spring

(SUB FOR AT213683)

1шт.

39

0667924

Poppet

(SUB FOR AT213684)

1шт.

40

0667925

Spring

(SUB FOR AT213685)

1шт.

41

0667926

Spacer

(SUB FOR AT213686)

1шт.

50

4372038

Pressure Relief Valve

(SUB FOR AT214284)SYSTEM RELIEF

1шт.

51

4372039

Pressure Relief Valve

(SUB FOR AT214285)ARM IN, BOO M UP AND DOWN AND BUCKET CURL

1шт.

52

0667927

Fitting Plug

(SUB FOR AT213687)

2шт.

52A

U12547

O-Ring

1шт.

52B

0413616

O-Ring

1шт.

59

0667928

Cap

(SUB FOR AT213688)

1шт.

60

0667929

Cap

(SUB FOR AT213689)

1шт.

62

0685302

Body Filler

(SUB FOR AT214295)

1шт.

62A

957366

O-Ring

2шт.

62B

4506408

O-Ring

2шт.

62C

4317636

O-Ring

1шт.

65

0667930

Fitting Plug

(SUB FOR AT213690)

1шт.

65A

4509180

O-Ring

1шт.

68

0353228

Bolt

(SUB FOR AT132356)

12шт.

69

0667714

Screw

(SUB FOR AT213661)

2шт.

77

0332914

Drain Plug

(SUB FOR TH110315)

1шт.

78

0667931

Fitting Plug

(SUB FOR AT213691)

1шт.

81

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

1шт.

82

CH12329

Packing

1шт.

83

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)

6шт.

84

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

3шт.

85

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

3шт.

86

CH14701

O-Ring

39.400 X 3.100 mm (1.551" X 0.122")

10шт.

88

953610

O-Ring

21.700 X 3.500 mm (0.854" X 0.138") (SUB FOR AT154871)

1шт.

90

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") (SUB FOR TH102561)

1шт.

91

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

92

4028266

Back-Up Ring

22 X 28 X 1.250 mm (0.866" X 1.1 02" X 0.049") (SUB FOR AT132396)

1шт.

93

4038533

Back-Up Ring

(SUB FOR TH100050)

1шт.

95

4358914

Pressure Relief Valve

(SUB FOR AT213982)ARM OUT AND BUCKET DUMP

1шт.
