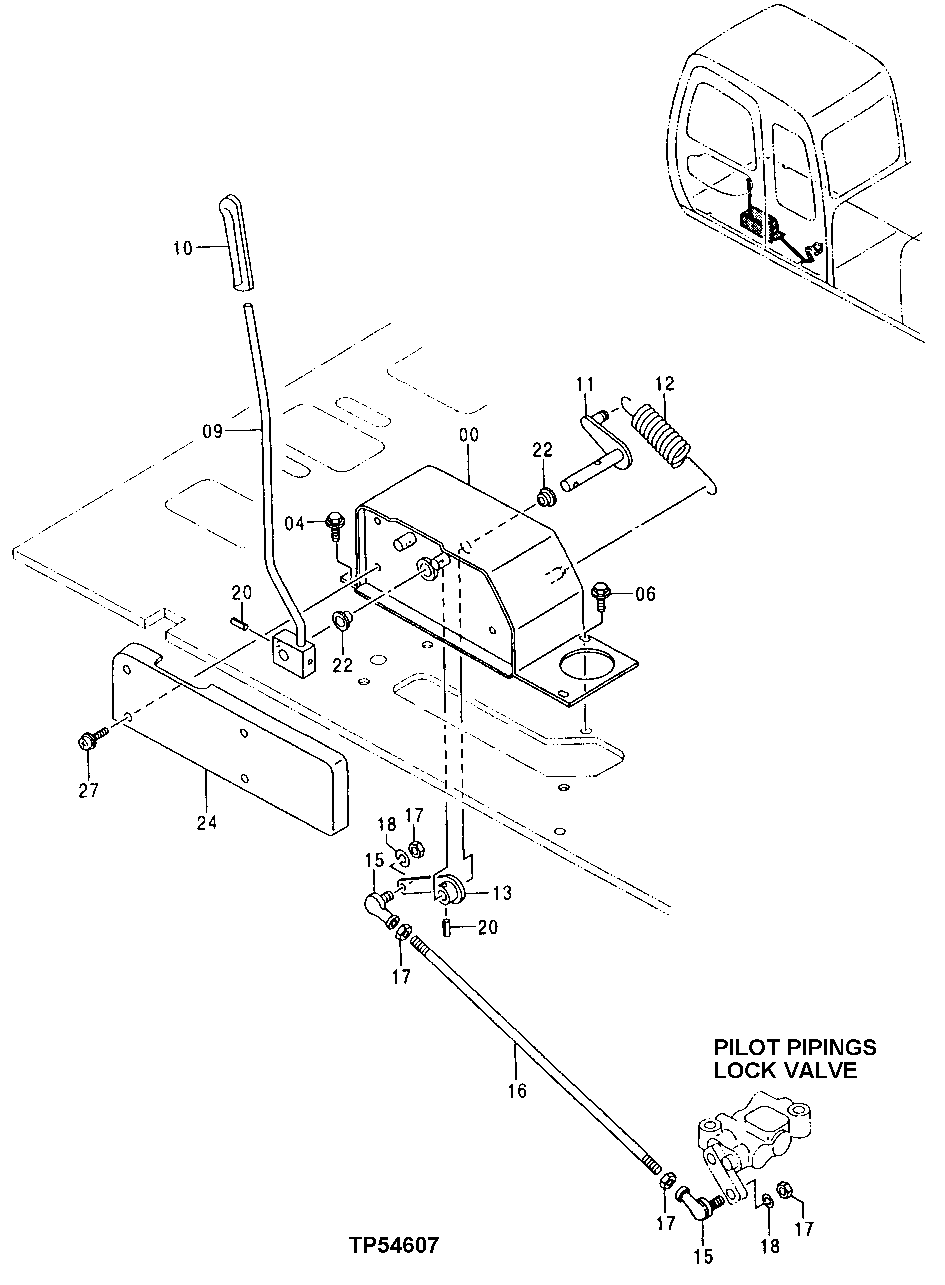

Запчасти John Deere 00LC 316 - LOCK LEVER 3360 HYDRAULIC SYSTEM

0

7029259

Box

SUB FOR AT217849

1шт.

4

12M7066

Lock Washer

10 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

6

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

9

8061138

Lever

SUB FOR AT214361

1шт.

10

3051611

Grip

SUB FOR AT154122

1шт.

11

8060886

Link

SUB FOR AT214358

1шт.

12

4189184

Extension Spring

SUB FOR TH108392

1шт.

13

9743595

Lever

SUB FOR AT177400

1шт.

15

T110021

Ball Joint Socket

2шт.

16

4259591

Rod

SUB FOR AT154262

1шт.

17

14M7273

Nut

M8

4шт.

18

Washer

12M7065 NLA

2шт.

20

34M7225

Spring Pin

8 X 28 mm SUB FOR 34M6402

2шт.

22

4341810

Bushing

SUB FOR AT177401

2шт.

24

2037246

Cover

SUB FOR AT213737

1шт.

27

J680640

Screw With Washer

SUB FOR AT213612

4шт.
