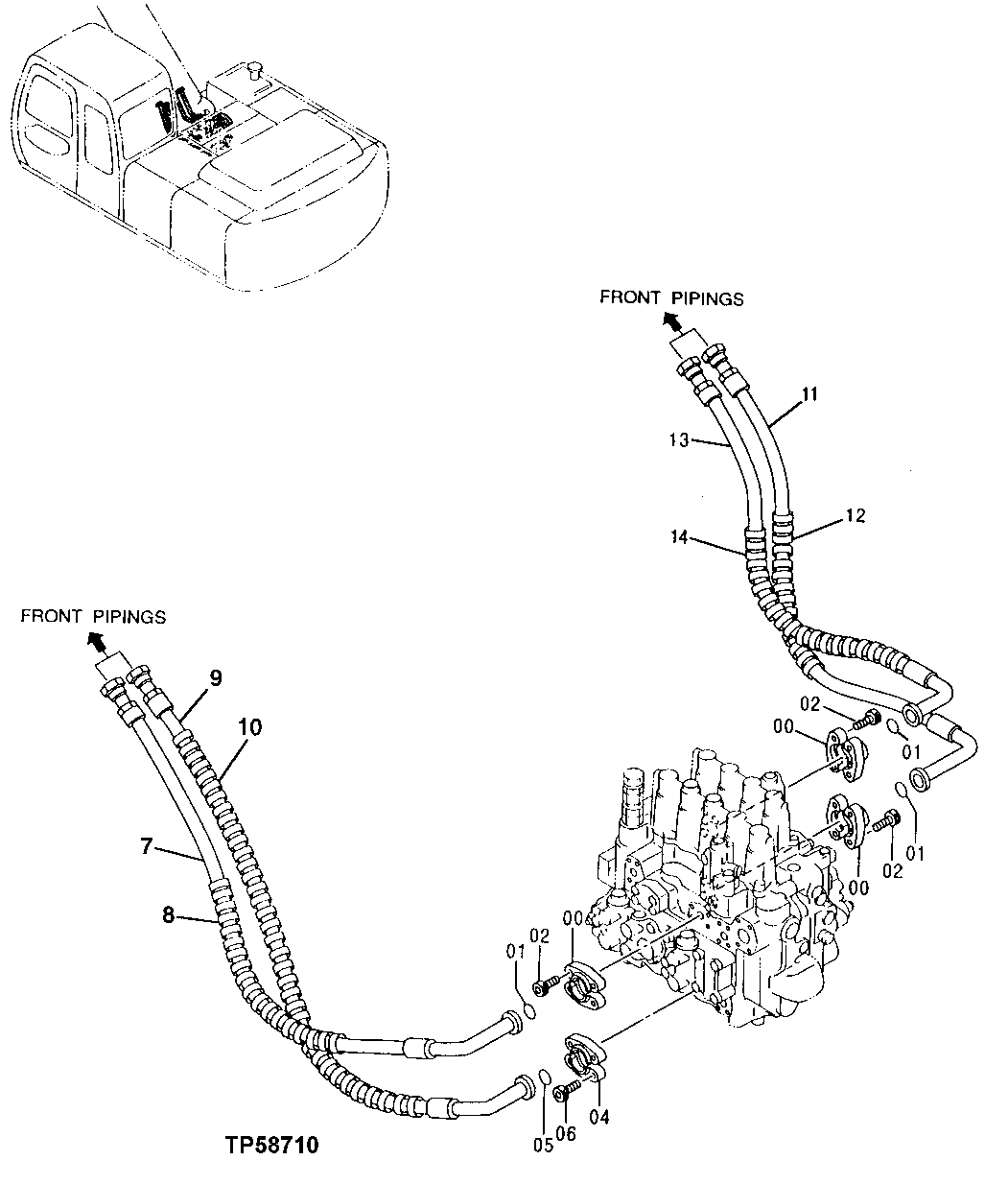

Запчасти John Deere 00LC 312 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

R29424

Flange Fitting

6шт.

1

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

3шт.

2

19M7576

Screw

M10 X 30 (SUB FOR AT213614 AND J781030)

12шт.

4

H61354

Flange Fitting

2шт.

5

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

6

19M7576

Screw

M10 X 30 (SUB FOR AT213614 OR J781030)

4шт.

7

4324162

Hydraulic Hose

(SUB FOR AT213830)

1шт.

8

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT T O LENGTH) (SUB FOR AT213832 OR 4327294)

3шт.

9

4297044

Hydraulic Hose

(SUB FOR AT213818)

1шт.

10

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT T O LENGTH) (SUB FOR AT213832 OR 4327294)

5шт.

11

4331596

Hydraulic Hose

(SUB FOR AT213838)

1шт.

12

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT T O LENGTH) (SUB FOR AT213832 OR 4327294)

2шт.

13

4297046

Hydraulic Hose

(SUB FOR AT213819)

1шт.

14

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT T O LENGTH) (SUB FOR AT213832 OR 4327294)

3шт.
