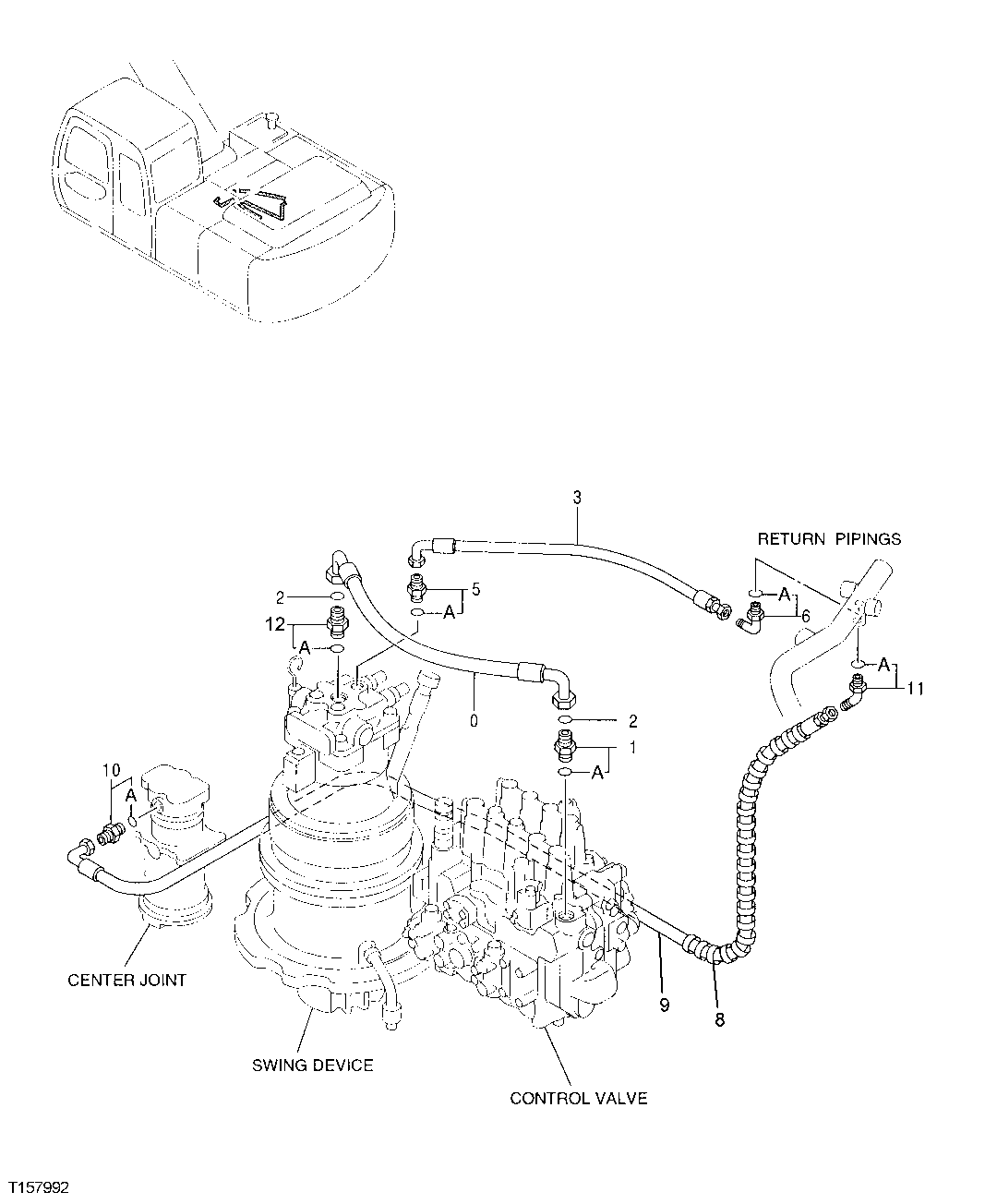

Запчасти John Deere 00LC 309 - DRAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

AT213859

Hydraulic Hose

1шт.

1

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

1шт.

1A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

2

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

3

AT213910

Hydraulic Hose

DRAIN HOSE

1шт.

5

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

A852143

Adapter Fitting

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4327315

Hose Guard

4327293 NO LONGER AVAI LABLE SUB FOR AT213831

2шт.

9

AT213865

Hydraulic Hose

1шт.

10

4221290

Adapter Fitting

SUB FOR AT131902

1шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4236729

Elbow Fitting

SUB FOR AT213803

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

1шт.

A853186

Adapter Fitting

1шт.

12A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.
