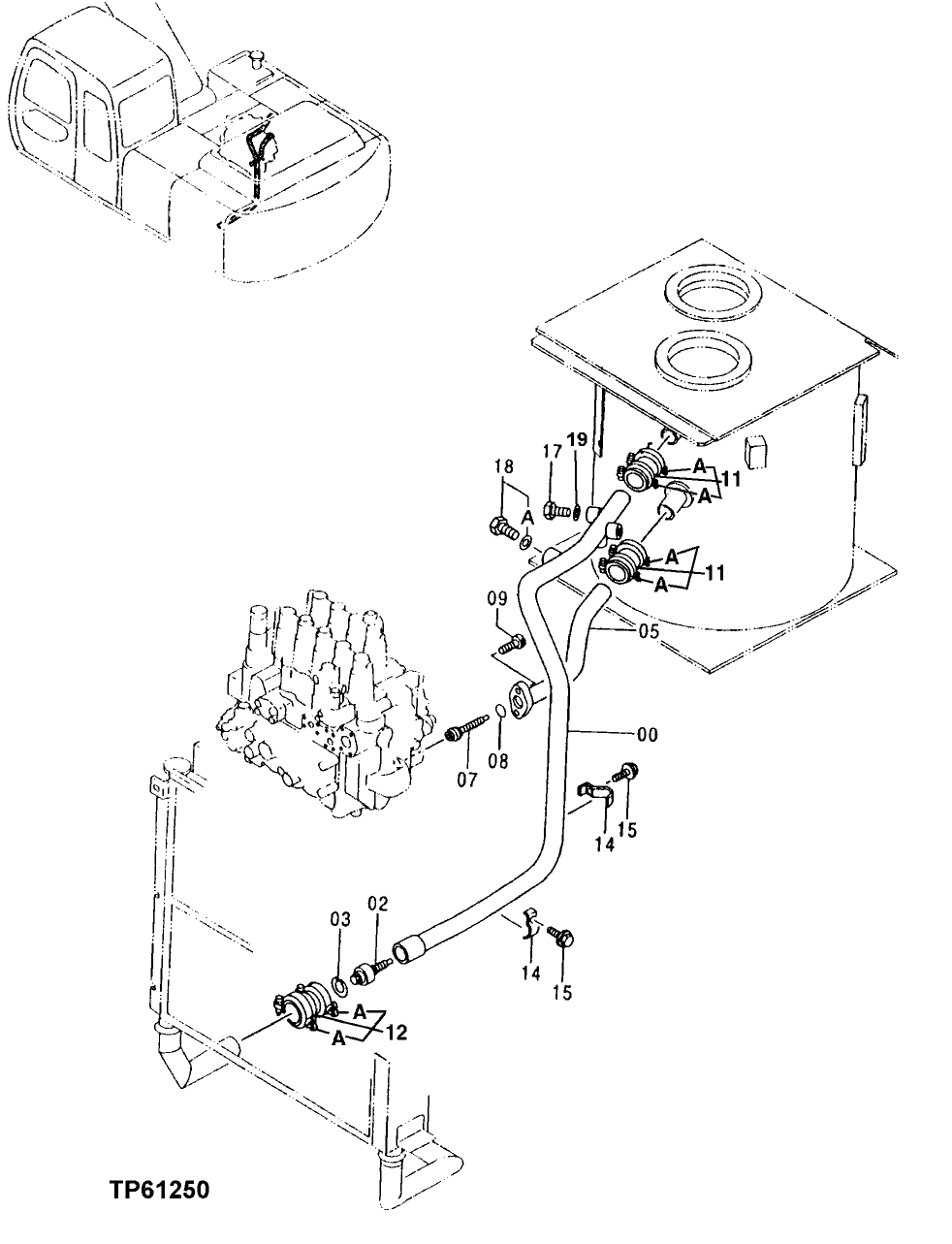

Запчасти John Deere 00LC 307 - RETURN PIPINGS 3360 HYDRAULIC SYSTEM

0

7028471

Oil Line

SUB FOR AT214330

1шт.

2

4276584

Flow Control Hyd. Valve

SUB FOR AT154331

1шт.

3

40M7225

Snap Ring

1шт.

5

8060965

Oil Line

SUB FOR AT214360

1шт.

7

4272164

Flow Control Hyd. Valve

SUB FOR AT155303

1шт.

8

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") SUB FOR TH102992

1шт.

9

L159272

Screw

SUB FOR AT213615 OR J781040

2шт.

11

4069801

Coupling

SUB FOR 4712341 AND 4196259

2шт.

11A

4196259

Seal

NLA, ORDER 4069801

2шт.

12

4067834

Coupling

SUB FOR TH102945

1шт.

12A

4196260

Seal

NLA, ORDER 4067834

2шт.

14

4053698

Clamp

SUB FOR TH101936

2шт.

15

12H301

Lock Washer

1/2"

2шт.

19M7753

Cap Screw

M12 X 70

2шт.

17

15M7036

Drain Plug

SUB FOR 4092534, 4217653, TH1092 85 OR 0309805; ALSO ORDER CH11570

1шт.

18

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

18A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

19

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
