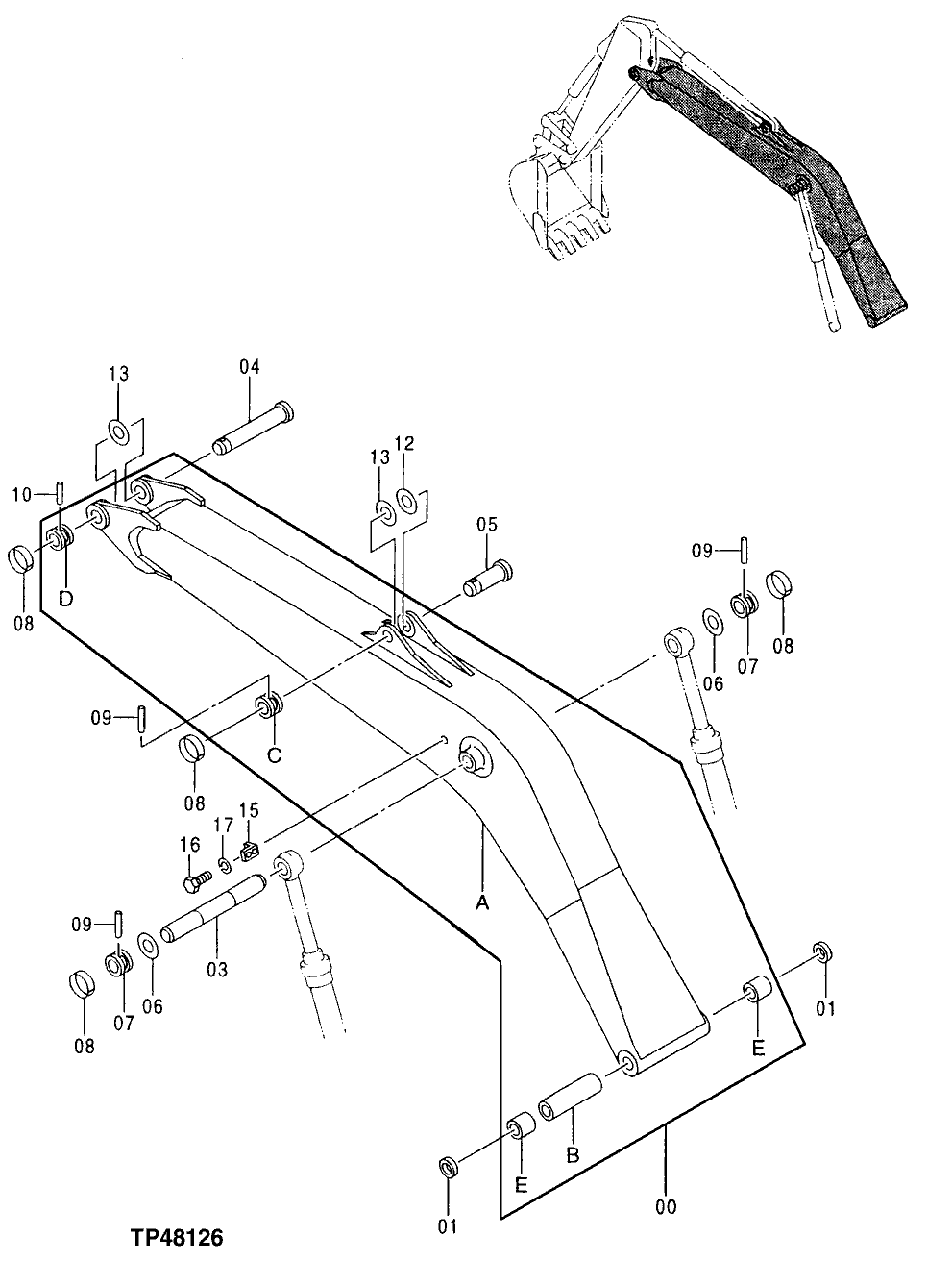

Запчасти John Deere 00LC 304 - BOOM 3344 BOOM

0

Excavator Boom

(SUB AT214332)( AT2155 90 NO LONGER AVAILABLE)

1шт.

0A

Excavator Boom

1шт.

0B

T139506

Spacer

95.200 X 101.600 X 483 mm (3.748" X 4" X 19-1/64")

1шт.

0C

TH104509

Bushing

1шт.

0D

T104269

Bushing

1шт.

0E

3051156

Bushing

(SUB FOR T139505)

2шт.

1

TH102445

Seal

2шт.

3

T144749

Pin

79.924 X 802 mm (3.147" X 31.575")

1шт.

4

T144751

Pin

79.924 X 534 mm (3.147" X 21.024")

1шт.

5

T144752

Pin

79.924 X 263 mm (3.147" X 10.354")

1шт.

6

4361607

Thrust Washer

(SUB FOR AT215500 ) (SUB FOR AT214009)

2шт.

7

TH104509

Bushing

2шт.

8

4098712

Ring

(SUB FOR TH103629)

4шт.

9

4098713

Pin

16 X 106 mm (0.630" X 4. 173") (SUB FOR TH103627)

3шт.

10

4109669

Pin

20 X 105 mm (0.787" X 4. 134") (SUB FOR TH104292)

1шт.

12

TH104297

Washer

84 X 145 X 2.250 mm (3. 307" X 5.709" X 0.089")

1шт.

13

TH104296

Washer

84 X 145 X 1 mm (3.307" X 5.709" X 0.039")

2шт.

15

4224631

Angle

(SUB FOR TH111685)

1шт.

16

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

17

12H317

Lock Washer

9/16"

1шт.
