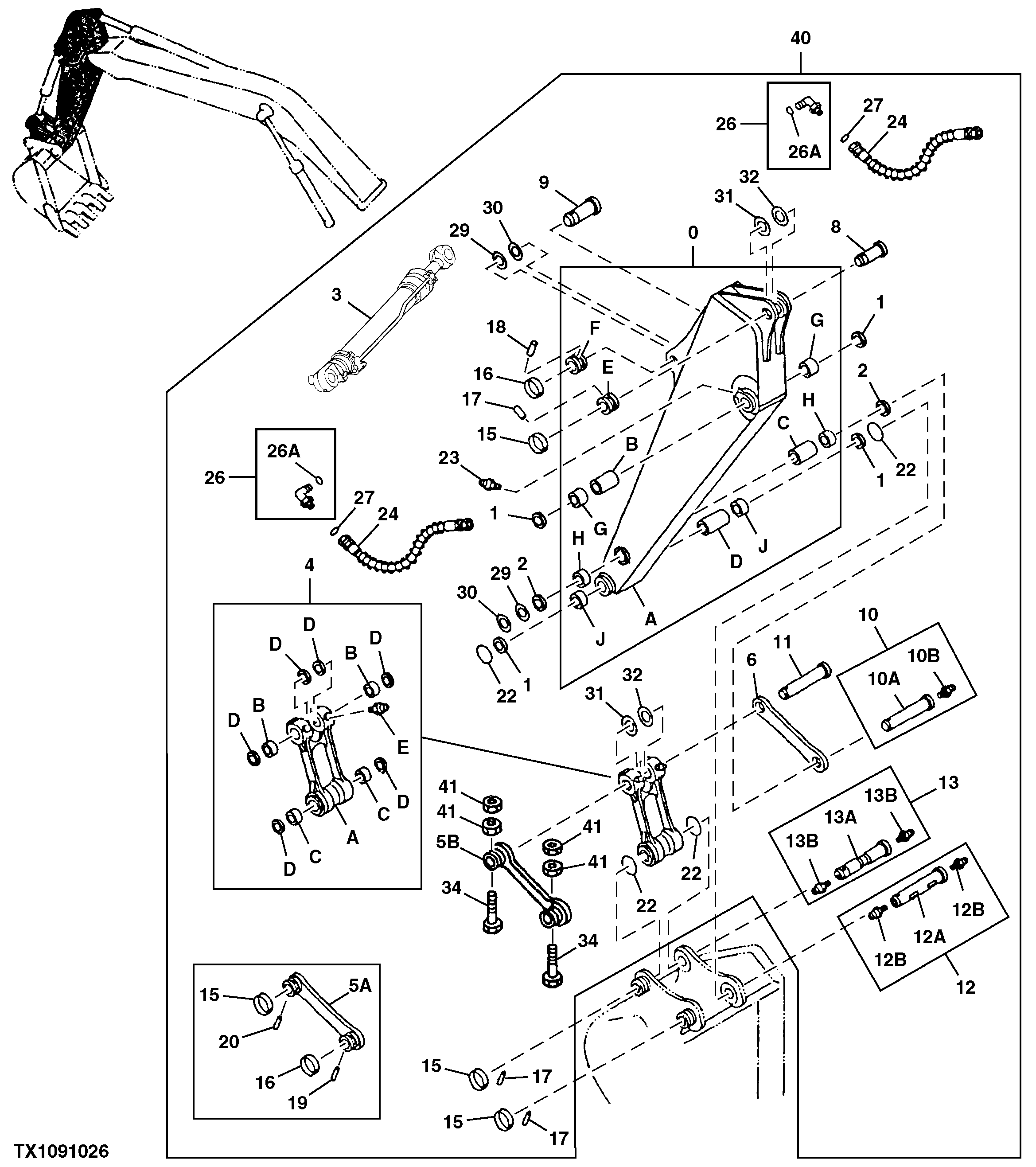

Запчасти John Deere 00LC 301 - SHORT ARM 2.22 M (7 FT. 3 IN.) 3340 BACKHOE AND EXCAVATOR FRAMES

0

Arm

( AT215595, AT186165 NLA) (ORDER 7031132)

1шт.

7031132

Arm

1шт.

0A

Arm

(NSEP)

1шт.

0B

4123816

Spacer

(SUB FOR T104248)

1шт.

0C

T104250

Spacer

1шт.

0D

4123815

Spacer

(SUB FOR TH104461)

1шт.

0E

TH104509

Bushing

1шт.

0F

T104251

Bushing

1шт.

0G

AT215482

Bushing

2шт.

0H

T104249

Bushing

2шт.

0J

T139507

Bushing

2шт.

1

TH102446

Seal

4шт.

2

TH104472

Seal

2шт.

3

Cylinder

Bucket Cylinder For Detai l See Bucket Cylinder Page

1шт.

4

AT147405

Link

1шт.

4A

Link

(NSEP)

1шт.

4B

T139495

Bushing

2шт.

4C

T139496

Bushing

80 X 95 X 70 mm (3.150" X 3.740" X 2.756")

2шт.

4D

TH102446

Seal

6шт.

4E

TH100074

Lubrication Fitting

2шт.

5A

9733731

Link

(NLA) (ORDER AT147404J) (ALSO OR DER (2) 19M7921 AND (4) 14M7277)

1шт.

5B

AT147404J

Link

(SUB FOR AT147404) (ALSO ORDE R (2) 19M7921 AND (4) 14M7277)

1шт.

6

T159203J

Link

(SUB FOR T138765 OR T159203)

1шт.

8

T144752

Pin

79.924 X 263 mm (3.147" X 10.354")

1шт.

9

T144753

Pin

70.924 X 228 mm (2.792" X 8.976 ") (SUB FOR FFSB108069, T104324)

1шт.

10

Pin

( AT214382 OR 9096918 NO LO NGER AVAILABLE FOR SERVICE)

1шт.

10A

T144755

Pin

(SUB FOR T104347)

1шт.

10B

TH100074

Lubrication Fitting

1шт.

11

AT317252

Pin Fastener

(ALSO ORDER T144754 ) (S UB FOR AT192340, 3036973)

1шт.

12

T144756

Pin

(SUB FOR AT215610)

1шт.

12A

T144756

Pin

(SUB FOR T114883)

1шт.

12B

TH100074

Lubrication Fitting

2шт.

13

T144757

Pin

(SUB FOR AT215611)

1шт.

13A

T144757

Pin

(SUB FOR T114884)

1шт.

13B

TH100074

Lubrication Fitting

2шт.

15

4098712

Ring

(SUB FOR TH103629)

4шт.

16

4098716

Ring

(SUB FOR TH103631)

2шт.

17

4098713

Pin

16 X 106 mm (0.630" X 4. 173") (SUB FOR TH103627)

3шт.

18

4098717

Pin

16 X 93 mm (0.630" X 3. 661") (SUB FOR TH103630)

1шт.

19

4106307

Pin

20 X 92 mm (0.787" X 3. 622") (SUB FOR TH104411)

1шт.

20

4109669

Pin

20 X 105 mm (0.787" X 4. 134") (SUB FOR TH104292)

1шт.

22

4089028

O-Ring

Standard O-Ring

4шт.

AT349466

Seal

Split O-Ring

4шт.

T379473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

2шт.

24

AT215504

Hydraulic Hose

2шт.

26

4157562

Elbow Fitting

(SUB FOR TH109540)

2шт.

26A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

27

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

29

4366692R

Thrust Washer

(SUB FOR TH105593, 4366692 OR AT214030)

2шт.

30

4367410R

Thrust Washer

(SUB FOR TH105592, 4367410 OR AT214040)

2шт.

31

TH104296

Washer

84 X 145 X 1 mm (3.307" X 5.709" X 0.039")

2шт.

32

TH104297

Washer

84 X 145 X 2.250 mm (3. 307" X 5.709" X 0.089")

2шт.

34

19M7921

Cap Screw

M20 X 150

2шт.

40

AT179389

Arm

(WHOLE GOODS) Includes Arm, Buc ket Cylinder, Hoses and Linkage

1шт.

41

14M7277

Nut

M20

4шт.
