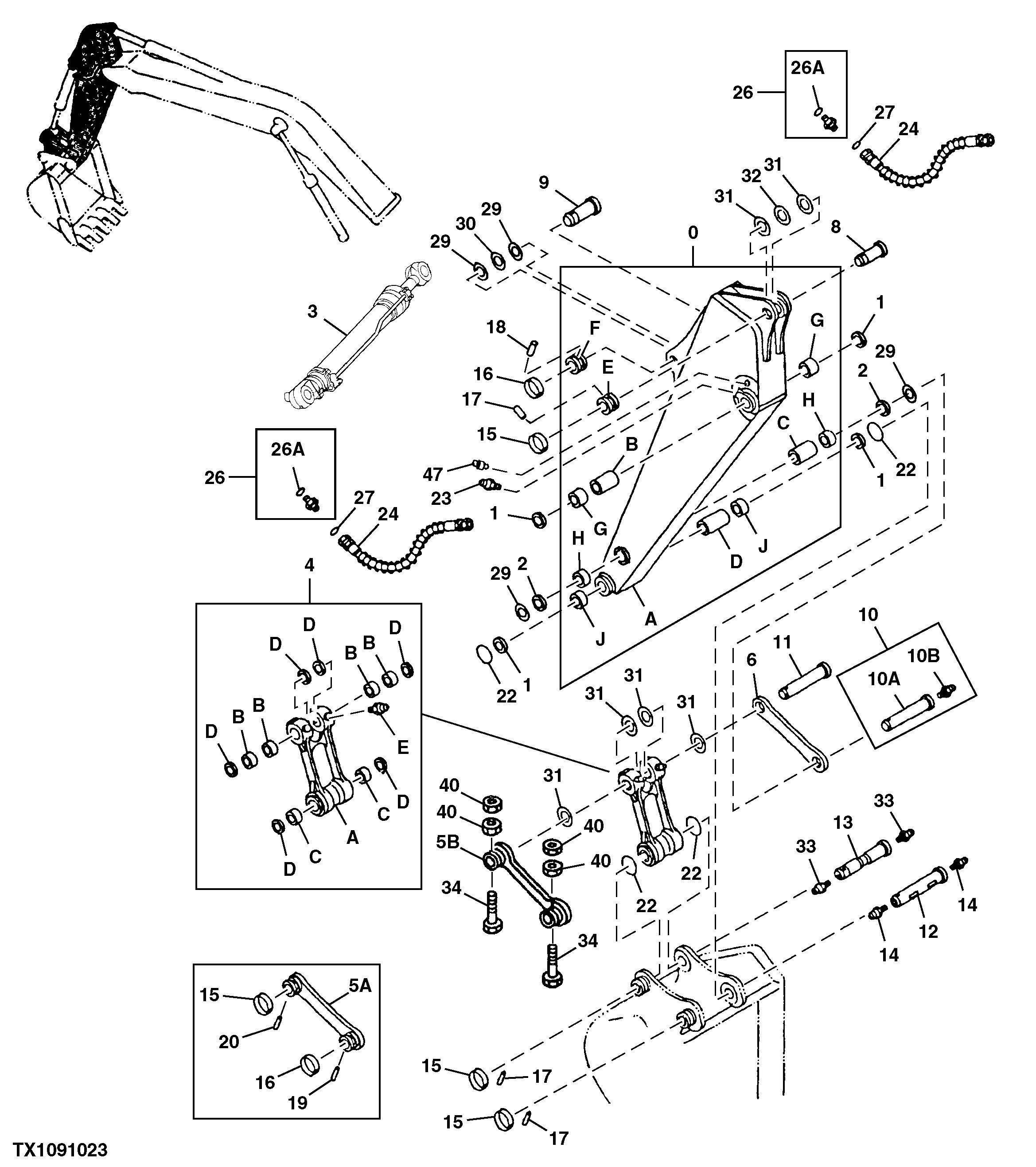

Запчасти John Deere 00LC 300 - Replacement Standard Arm 2.91 m. (9 ft. 7 in.) 3340 BACKHOE AND EXCAVATOR FRAMES

0

7029314J

Arm

(SUB FOR AT214334 OR 702 9314) (CONVENIENCE ASSY)

1шт.

0A

Arm

(NSEP)

1шт.

0B

4352784

Spacer

(SUB FOR AT213969)

1шт.

0C

4363407

Bushing

(SUB FOR AT214016)

1шт.

0D

4341159

Bushing

(SUB FOR AT213882)

1шт.

0E

TH104509

Bushing

1шт.

0F

T104251

Bushing

1шт.

0G

3072697

Bushing

(SUB FOR AT213781)

2шт.

0H

4332286

Bushing

(SUB FOR AT213841)

2шт.

0J

4332287

Bushing

(SUB FOR AT213842)

1шт.

1

TH102446

Seal

4шт.

2

TH104472

Seal

2шт.

3

Cylinder

Bucket Cylinder For Detai l See Bucket Cylinder Page

1шт.

4

8061743J

Link

(SUB FOR AT214364 OR 8061743)

1шт.

4A

Link

(NSEP)

1шт.

4B

4352398

Bushing

(SUB FOR AT213964)

4шт.

4C

4332287

Bushing

(SUB FOR AT213842)

2шт.

4E

TH100074

Lubrication Fitting

2шт.

4D

TH102446

Seal

6шт.

5A

9733731

Link

(NLA) (ORDER AT147404J) (ALSO OR DER (2) 19M7921 AND (4) 14M7277)

1шт.

5B

AT147404J

Link

(SUB FOR AT147404) (ALSO ORDE R (2) 19M7921 AND (4) 14M7277)

1шт.

6

T159203J

Link

(SUB FOR T138765 OR T159203)

1шт.

8

T144752

Pin

79.924 X 263 mm (3.147" X 10.354")

1шт.

9

T144753

Pin

70.924 X 228 mm (2.792" X 8.976 ") (SUB FOR FFSB108069, T104324)

1шт.

10

Pin

( AT214382 OR 9096918 NLA)

1шт.

10A

T144755

Pin

(SUB FOR T104347)

1шт.

10B

TH100074

Lubrication Fitting

1шт.

11

T144754

Pin

80 X 412 mm (3.150" X 16.220")

1шт.

12

AT186163

Pin Fastener

1шт.

13

AT186164

Pin Fastener

1шт.

14

TH100074

Lubrication Fitting

2шт.

15

4098712

Ring

(SUB FOR TH103629)

4шт.

16

4098716

Ring

(SUB FOR TH103631)

2шт.

17

4098713

Pin

16 X 106 mm (0.630" X 4. 173") (SUB FOR TH103627)

3шт.

18

4098717

Pin

16 X 93 mm (0.630" X 3. 661") (SUB FOR TH103630)

1шт.

19

4106307

Pin

20 X 92 mm (0.787" X 3. 622") (SUB FOR TH104411)

1шт.

20

4109669

Pin

20 X 105 mm (0.787" X 4. 134") (SUB FOR TH104292)

1шт.

22

4089028

O-Ring

Standard O-Ring

4шт.

AT349466

Seal

Split O-Ring

4шт.

T379473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

2шт.

24

AT155741

Hydraulic Hose

30.1752" X 1600 mm (63") X 30.1752"

2шт.

26

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

26A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

27

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

29

4366692R

Thrust Washer

(SUB FOR AT214030 OR 4366692)

4шт.

30

4367410R

Thrust Washer

(SUB FOR AT214040 OR 4367410)

1шт.

31

4366691

Thrust Washer

(SUB FOR AT214029)

6шт.

32

4367409

Thrust Washer

(SUB FOR AT214039)

1шт.

33

TH100074

Lubrication Fitting

2шт.

34

19M7921

Cap Screw

M20 X 150

2шт.

40

14M7277

Nut

M20

4шт.

47

94-2010

Fitting Plug

(SUB FOR TH100689)

2шт.
