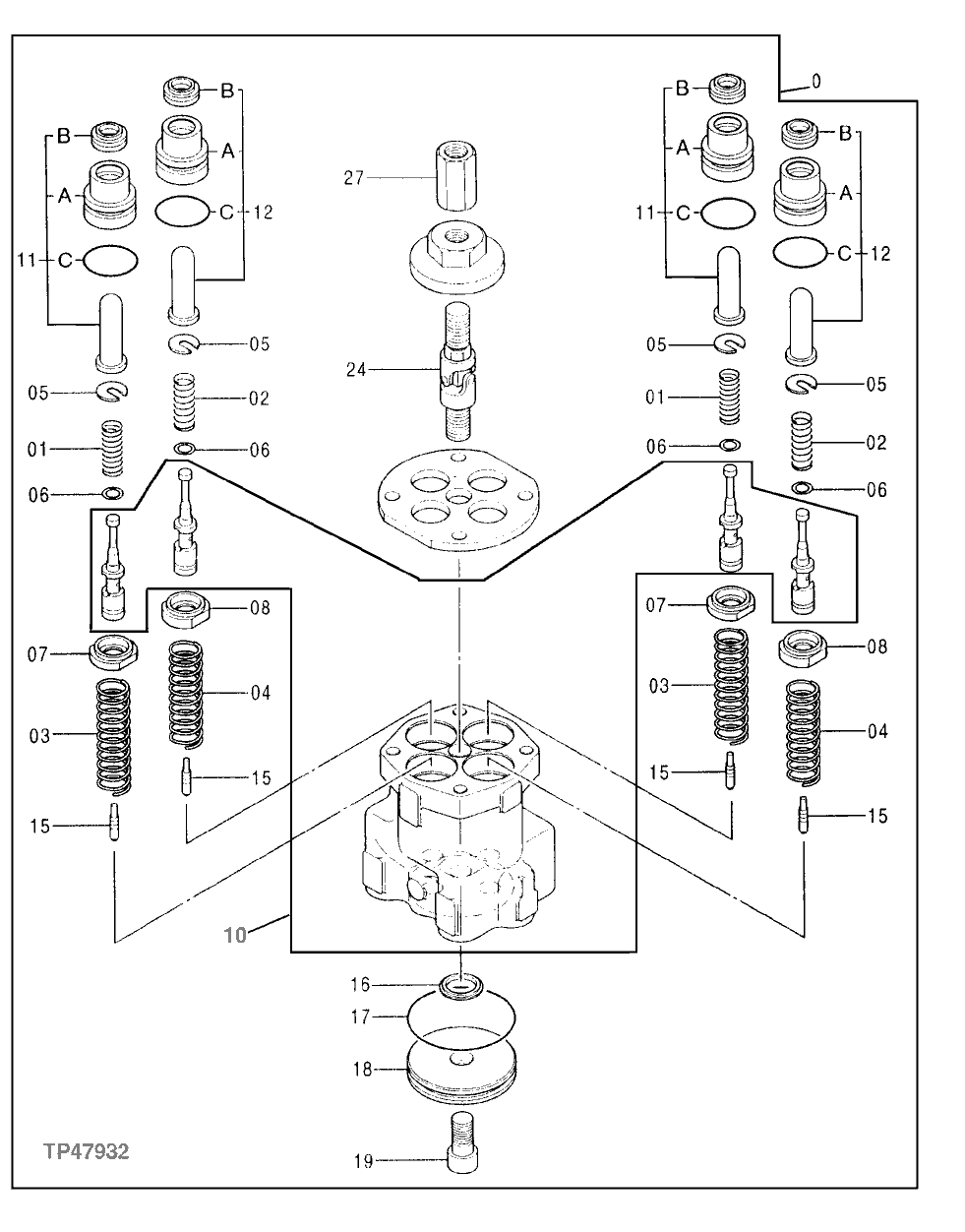

0
9156582
Valve
NLA (ORDER 9156582EX)
2шт.
9156582EX
Hyd/Pilot Cntl Valve Reman
(REMAN FOR 9156582) (SUB FO R AT214396)(FRONT AND SWING)
2шт.
1
4201915
Spring
(SUB FOR TH109212)
2шт.
2
4166686
Compression Spring
(SUB FOR TH109213)
2шт.
3
4195421
Compression Spring
(SUB FOR TH109214)
2шт.
4
4379022
Compression Spring
(SUB FOR AT215558)
2шт.
5
4177777
Spacer
(SUB FOR AT154411 ) (SUB FOR TH109216)
4шт.
6
4173208
Shim
(SUB FOR TH109217)
20шт.
7
4177896
Guide
(SUB FOR TH109218)
2шт.
8
4179257
Guide
(SUB FOR AT154412 ) (SUB FOR TH109219)
2шт.
10
Housing
(SUB FOR AT214342)( 7031409 NLA)
1шт.
11
9101513
Cap
(SUB FOR AT154538)
2шт.
11A
Bushing
(NOT AVAILABLE FOR SERVICE)
1шт.
11B
4476342
Seal
(SUB FOR AT131269, 4359926)
1шт.
11C
U46166
O-Ring
24.400 X 3.100 mm (0.961" X 0.122")
1шт.
12
9108066
Cap
(SUB FOR AT154540)
2шт.
12A
Bushing
(NOT AVAILABLE FOR SERVICE)
1шт.
12B
4476342
Seal
(SUB FOR AT131269, 4359926)
1шт.
12C
U46166
O-Ring
24.400 X 3.100 mm (0.961" X 0.122")
1шт.
15
4184929
Piston
(SUB FOR TH109228)
4шт.
16
4286874
Sealing Washer
(SUB FOR AT155701)
1шт.
17
CH11571
Packing
1шт.
18
4184954
Plate
(SUB FOR TH109229)
1шт.
19
19M8168
Screw
M12 X 25
1шт.
24
4285209
Universal Joint
(SUB FOR TH109230)
1шт.
27
4182067
Jointer
(SUB FOR TH109232)
1шт.
