Запчасти John Deere 00LC 258 - HEAVY DUTY BUCKET 3302 BUCKET WITH TEETH

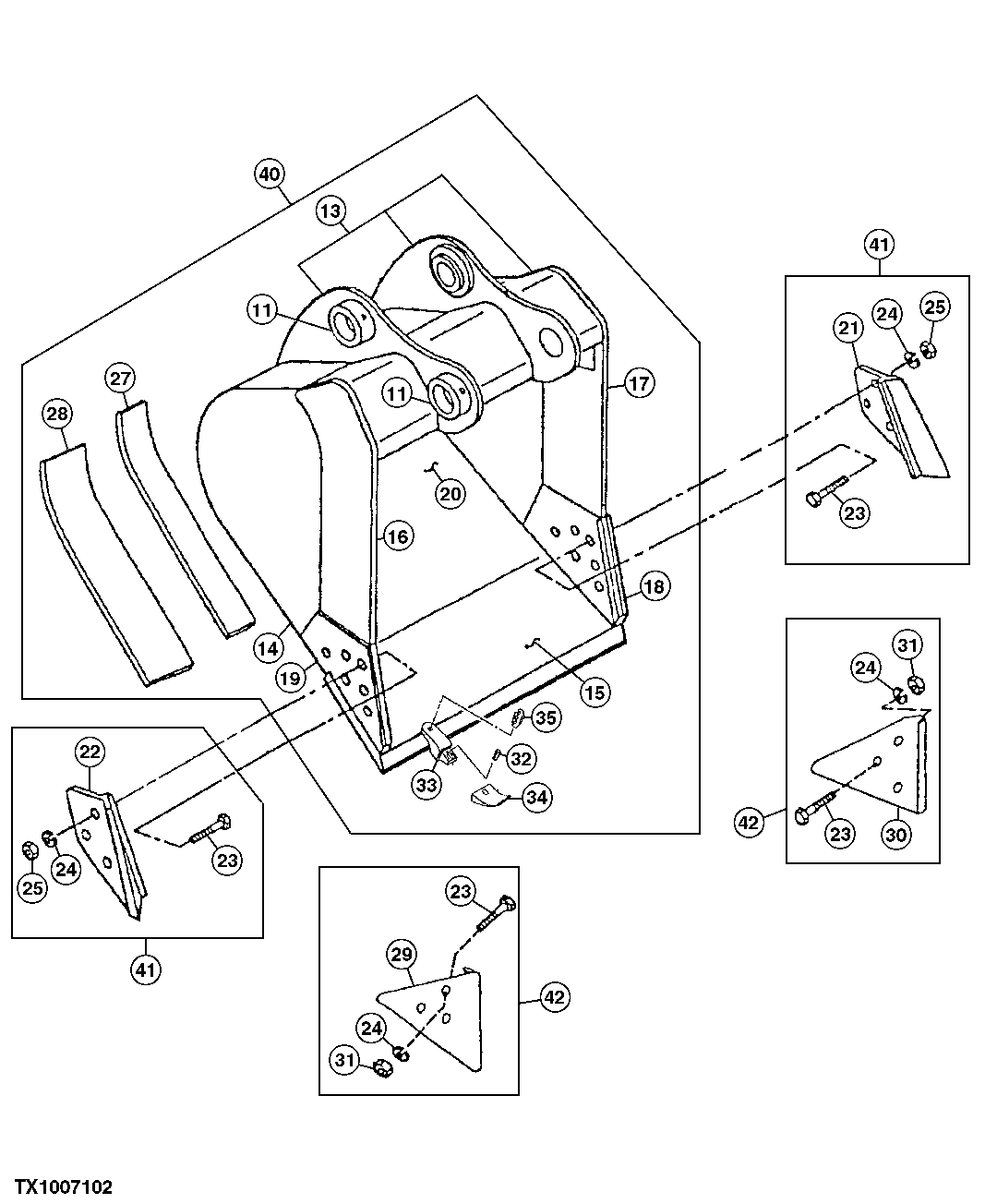

Схема запчастей John Deere 00LC - 258 - HEAVY DUTY BUCKET 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300804

Plate

(A) (RIGHT AND LEFT SIDE)

2шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131082 BULK MATERIAL)

1шт.

16

300526

Vertical Cutter

(A) (UPPER RIGHT SIDE)

1шт.

17

300527

Vertical Cutter

(A) (UPPER LEFT SIDE)

1шт.

18

304568

Vertical Cutter

(A) (LEFT INSERT)

1шт.

19

304567

Vertical Cutter

(A) (RIGHT INSERT)

1шт.

20

600417

Moldboard

(A) (24 INCH)

1шт.

600418

Moldboard

(A) (30 INCH)

1шт.

600419

Moldboard

(A) (36 INCH)

1шт.

600420

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)(LEFT)

1шт.

22

Cutting Edge

(SUB AT131085)(RIGHT)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) (INNER WEAR)

1шт.

28

304564

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167876)

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TX290

Tooth

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

35

TK130

Shaft Key

ARшт.

40

Excavator Bucket

( AT332688 NLA) (24 INCH/0.59 CUBIC YARD) ( 4 TEETH) (SUB FOR AT163611 ) (SUB AT339128)

1шт.

Excavator Bucket

( AT332689 NLA) (30 INCH/0.77 CUBIC YARD) ( 4 TEETH) (SUB FOR AT163612 ) (SUB AT339130)

1шт.

Excavator Bucket

( AT332690 NLA) (36 INCH/0.95 CUBIC YARD) ( 5 TEETH) (SUB FOR AT163613 ) (SUB AT339132)

1шт.

Excavator Bucket

( AT332691 NLA) (42 INCH/1.12 CUBIC YARD) ( 5 TEETH) (SUB FOR AT163614 ) (SUB AT339134)

1шт.

Excavator Bucket

( AT332692 NLA) (48 INCH/1.30 CUBIC YARD) ( 6 TEETH) (SUB FOR AT163615 ) (SUB AT339136)

1шт.

41

Kit

(CUTTING EDGE) ( AT131085 NLA)

1шт.

42

Kit

(WEAR) ( AT167876 NLA)

1шт.

Выбрано товаров: 34
