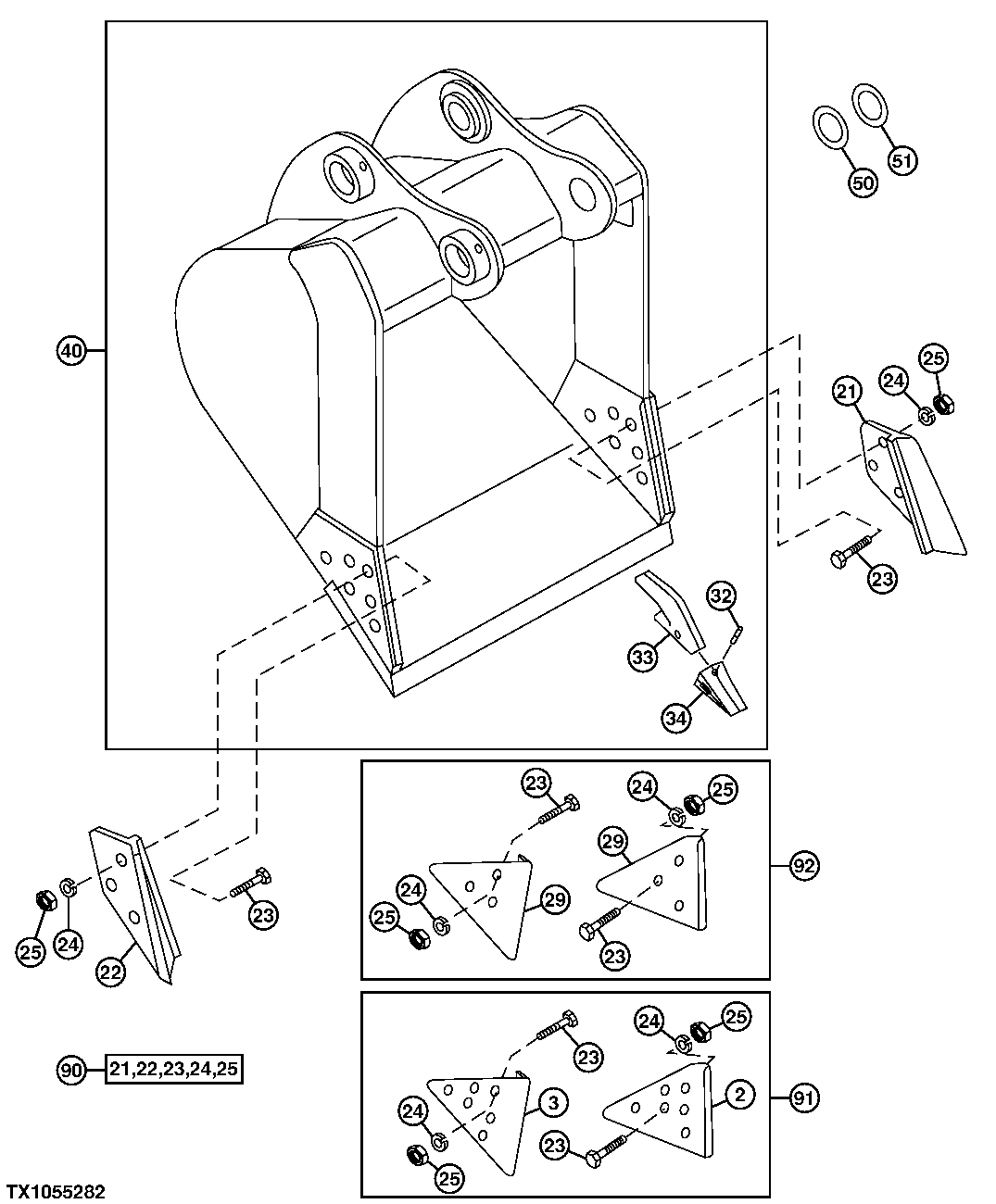

Запчасти John Deere 00LC 256 - GENERAL PURPOSE HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748R3

End Bit

1шт.

22

CE17748L3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

(WEAR)

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339115

Excavator Bucket

(WHOLEGOODS) (30 INCH - .79 CUBIC YARD) (4 TEETH) (SUB FOR AT332684)

1шт.

AT339122

Excavator Bucket

(WHOLEGOODS) (36 INCH - 1 CUBIC Y ARD) (5 TEETH) (SUB FOR AT332685)

1шт.

AT339124

Excavator Bucket

(WHOLEGOODS) (42 INCH - 1.22 CUBIC YARD) (5 TEETH) (SUB FOR AT332686)

1шт.

AT339126

Excavator Bucket

(WHOLEGOODS) (48 INCH - 1.43 CUBIC YARD) (6 TEETH) (SUB FOR AT332687)

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039")

ARшт.

51

T241937

Shim

ARшт.

90

AT342511

Kit

(WHOLEGOODS) (SIDE CUTTER KIT)

1шт.

91

AT342513

Kit

(WHOLEGOODS) (EDGE PROTECTOR) (6 INCH)

1шт.

92

AT342512

Kit

(WHOLEGOODS) (EDGE PROTECTOR) (3 INCH)

1шт.
