Запчасти John Deere 00LC 254 - General Purpose High Capacity Bucket (Also Order Bucket Tooth Assemblies) 3302 BUCKET WITH TEETH

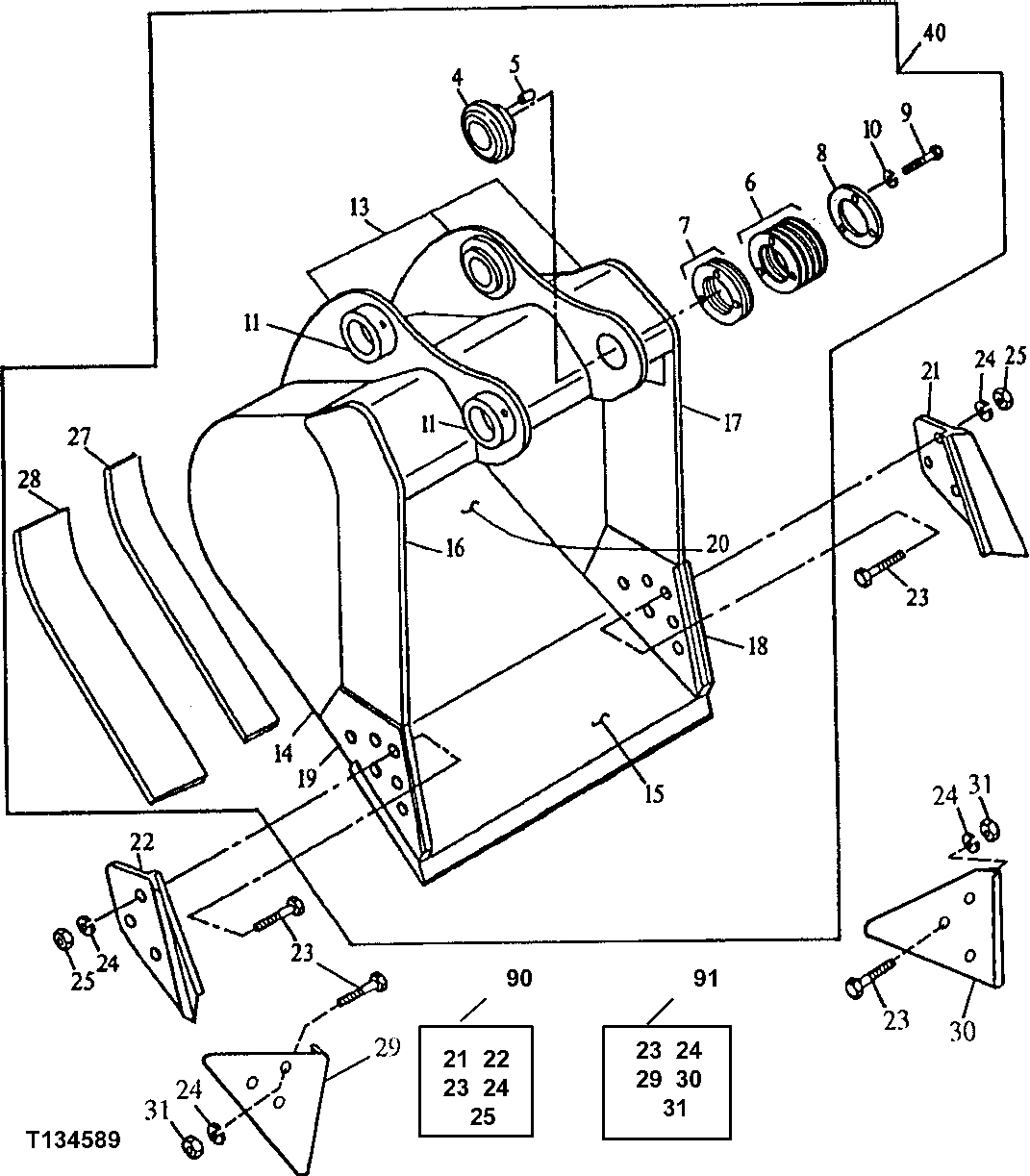

Схема запчастей John Deere 00LC - 254 - General Purpose High Capacity Bucket (Also Order Bucket Tooth Assemblies) 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8" (1" HEAD THICKNESS)

3шт.

11

TH104509

Bushing

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300536

Plate

(A) (RIGHT AND LEFT SIDE)

2шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131090 BULK MATERIAL)

1шт.

16

300534

Vertical Cutter

(A) (UPPER RIGHT SIDE)

1шт.

17

300535

Vertical Cutter

(A) (UPPER LEFT SIDE)

1шт.

18

300482

Vertical Cutter

(A) (LEFT INSERT)

1шт.

19

300481

Vertical Cutter

(A) (RIGHT INSERT)

1шт.

20

600318

Moldboard

(A) (30 INCH)

1шт.

600319

Moldboard

(A) (36 INCH)

1шт.

600320

Moldboard

(A) (42 INCH)

1шт.

600321

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2" 7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8" 7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) (INNER WEAR)

1шт.

28

306974

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167874)

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167874)

1шт.

31

14H1044

Nut

7/8" 22.225 MM (7/8")

6шт.

40

Excavator Bucket

(SUB AT332684)( AT163607 NLA) (30 INCH - .95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )

1шт.

Excavator Bucket

(SUB AT332685)( AT163608 NLA) (36 INCH - 1.16 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332686)( AT163609 NLA) (42 INCH - 1.38 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332687)( AT163610 NLA) (48 INCH - 1.60 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

90

AT131080

End Bit

(SIDE CUTTER KIT)

1шт.

91

AT167874

Kit

(EDGE PROTECTOR)

1шт.

Выбрано товаров: 35
