Запчасти John Deere 00LC 252 - BOOM REDUCED DRIFT KIT 2160 VEHICLE HYDRAULICS

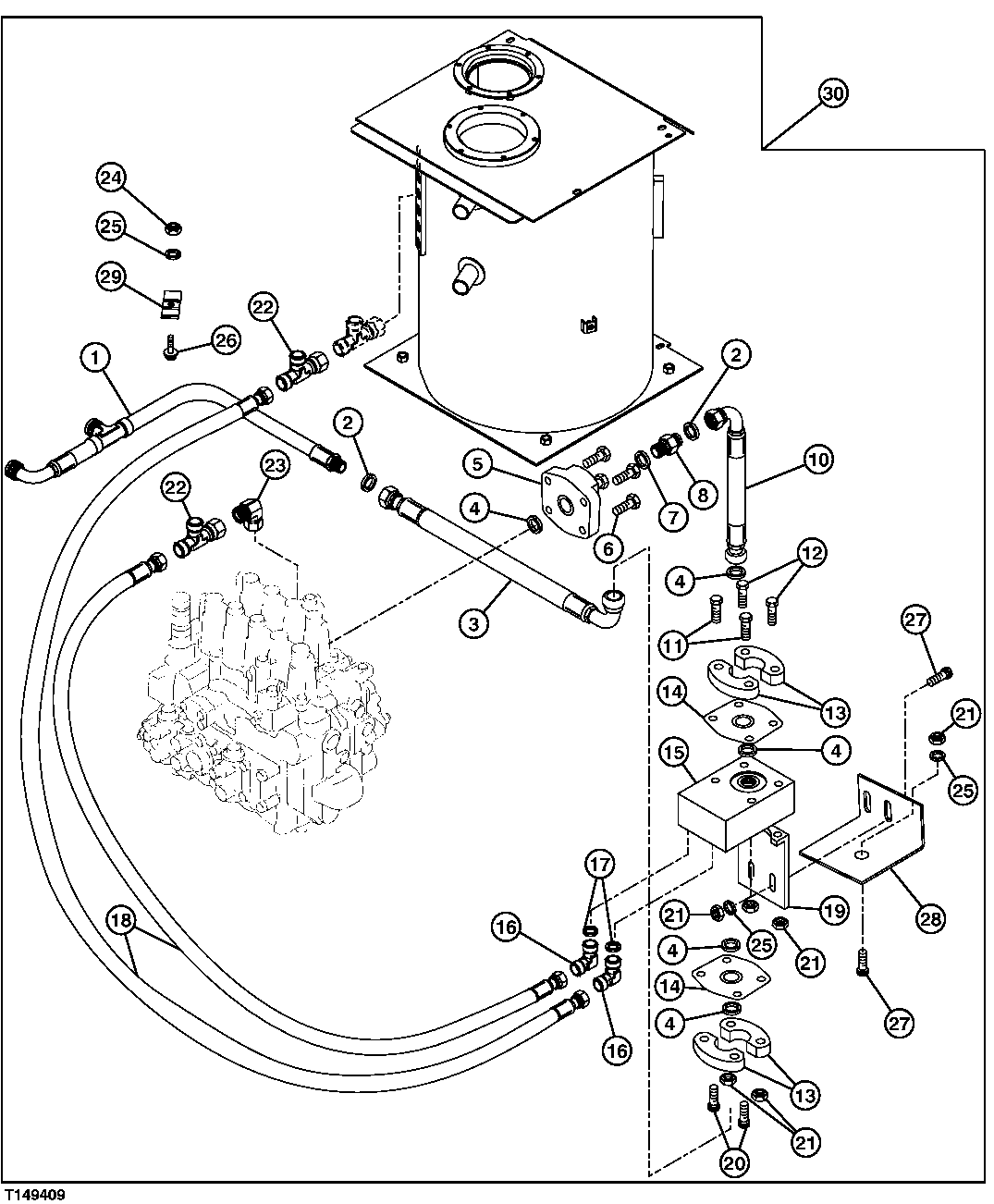

Схема запчастей John Deere 00LC - 252 - BOOM REDUCED DRIFT KIT 2160 VEHICLE HYDRAULICS

Артикул

Название

Примечание

Количество

1

AT147239

Oil Line

1шт.

2

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

3

AT177798

Hydraulic Hose

1шт.

4

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

5шт.

5

T60983

Flange Fitting

1шт.

6

0413619

Bolt

(SUB FOR AT154591)

4шт.

7

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

8

38H1216

Adapter Fitting

1шт.

10

AT183796

Hydraulic Hose

1" X 311 mm (12-1/4") X 36.5252"

1шт.

11

T111207

Bolt

M12 X 140

2шт.

12

19M8519

Screw

M12 X 120

2шт.

13

T107068

Flange Fitting

4шт.

14

T145378

Fitting

2шт.

15

AT152186

Hyd Actuated Control Valve

1шт.

16

AT35121

Elbow Fitting

2шт.

17

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

18

AT126601

Hydraulic Hose

9/16" X 1250 mm (49-1/4") X 9/16"

2шт.

19

T164046

Bracket

1шт.

20

19M8395

Screw

M12 X 40

2шт.

21

14M7275

Nut

M12

4шт.

22

AT36921

Tee Fitting

2шт.

23

AE24616

Elbow Fitting

1шт.

24

14M7275

Nut

M12

1шт.

25

12H301

Lock Washer

1/2"

4шт.

26

19M7361

Cap Screw

M12 X 50

1шт.

27

19M7403

Cap Screw

M12 X 35

3шт.

28

T164047

Bracket

1шт.

29

4202103

Clamp

(SUB FOR TH108302)

1шт.

30

AT196907

Kit

(SUB FOR AT185198)WHOLEGOO DS (BOOM REDUCED DRIFT KIT)

1шт.

Выбрано товаров: 29
