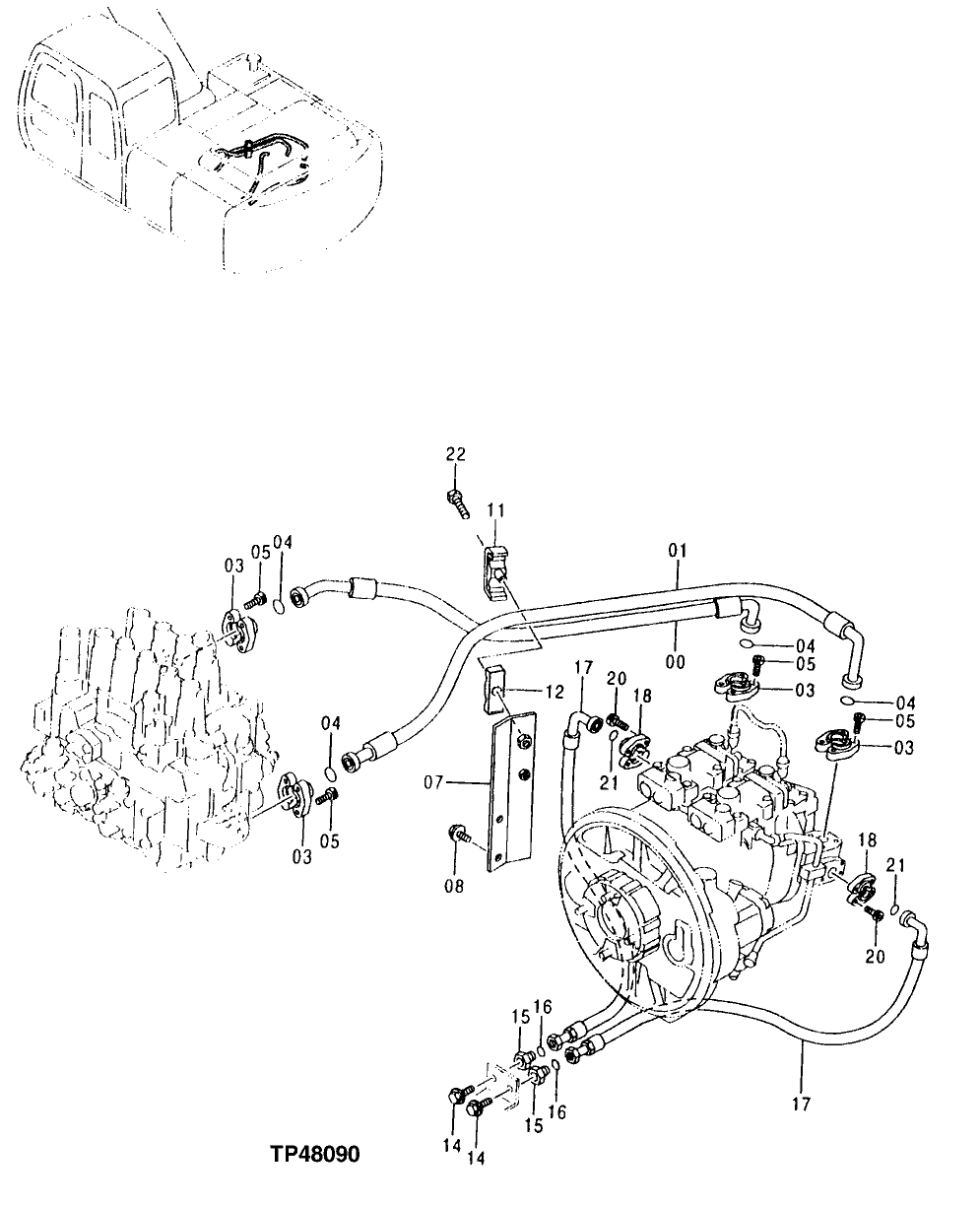

Запчасти John Deere 00LC 246 - DELIVERY PIPINGS 2160 VEHICLE HYDRAULICS

0

AT318024

Hydraulic Hose

(SUB FOR 4374095, AT215101)

1шт.

1

4353761

Hydraulic Hose

(SUB FOR AT215094)

1шт.

3

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

4

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

5

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

7

8067466

Bracket

(SUB FOR AT215600)

1шт.

8

12H301

Lock Washer

1/2"

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

11

8061722

Clamp

(SUB FOR AT214442)

1шт.

AT219493

Clamp

1шт.

12

3072291

Isolator

(SUB FOR AT214427)

1шт.

AT219492

Half Clamp

1шт.

14

12H301

Lock Washer

1/2"

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

15

4204882

Fitting Plug

(SUB FOR TH109541)

2шт.

16

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

17

AT214431

Hydraulic Hose

2шт.

18

T107446

Flange Fitting

4шт.

20

19M8337

Screw

M10 X 30

8шт.

21

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

22

19M7943

Cap Screw

M12 X 90

1шт.
